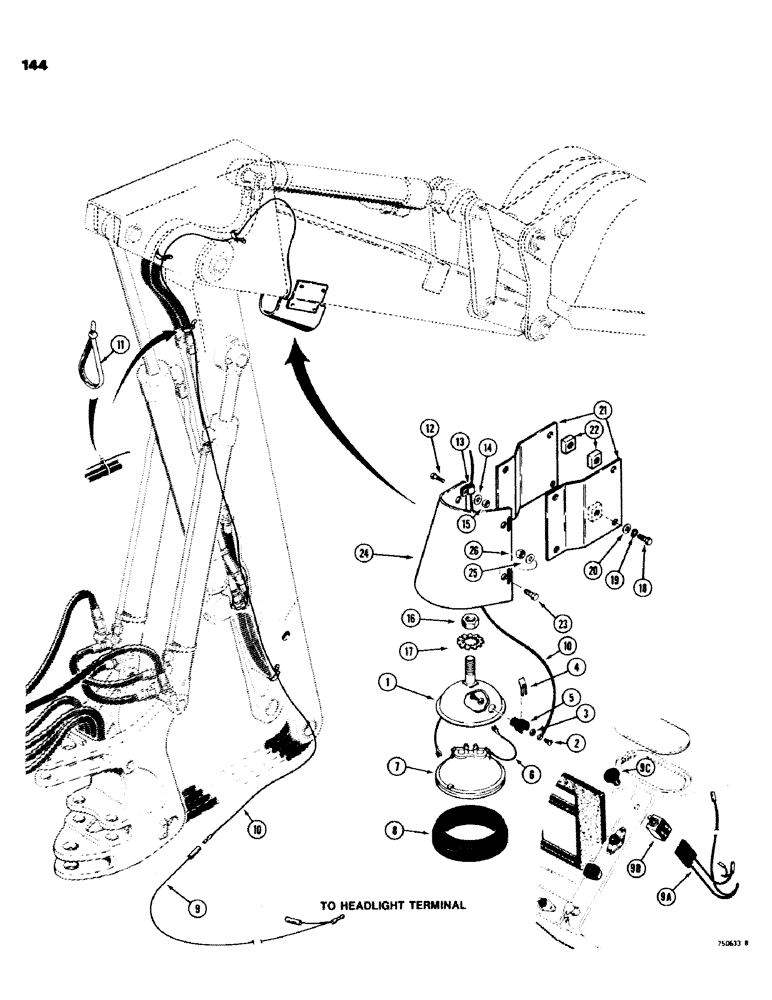

Запчасти Case 580C (144) - DIPPER LIGHT, USED WITH NON-EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

D37811

LAMP

ASSEMBLY - dipper arm, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- round head machine no. 8 - 32 NC x 1/4"

2шт.

3

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

4

10927

SPRING

- lamp

1шт.

5

B50293

TERMINAL CONNECTOR

- lamp

1шт.

6

A25262

ELECTRICAL WIRE

WIRE - lamp

1шт.

7

A42294

SEALED BEAM UNIT

BULB - sealed beam, trade no. 4406

1шт.

8

D31441

RETAINER

- lamp

1шт.

9

D73170

WIRE - harness to wire, models without separate dipper light switch

1шт.

9a

D75761

HARNESS

WIRE - to dipper light switch, if used

1шт.

9b

D74330

SWITCH

- dipper light, ifused

1шт.

9c

D95783

KNOB

- dipper light switch

1шт.

10

D50717

HARNESS

WIRE - wire to dipper light

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

STAP - wire retaining

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

13

49853

TOOL

- wire, at dipper

1шт.

14

194-25

WASHER - flat, 3/8"

1шт.

15

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

1шт.

16

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self lock, 1/2" - 13 NC

1шт.

17

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

21

D56849

BRACKET

- support, light shield

2шт.

22

D30458

BLOCK

- tapped, Serial Range: welded-dipper

4шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

24

D41427

SHIELD

- dipper light

1шт.

25

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

26

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self lock, 3/8" - 16 NC

4шт.
