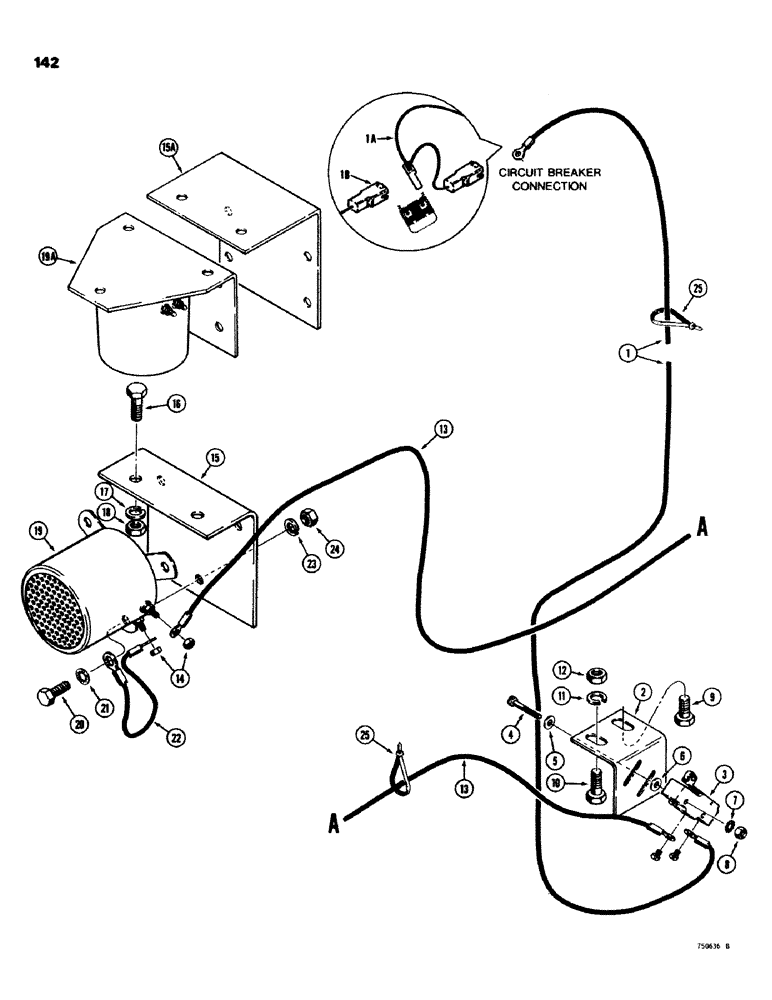

Запчасти Case 580C (142) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D70127
WIRE - circuit breaker to switch, used before, Serial Range: -8958213
1шт.
1a
D75957
ELECTRICAL WIRE
WIRE - circuit breaker to switch, used on, Start Serial: 8958213
1шт.
1b
D76214
ELECTRICAL WIRE
WIRE - adapter, will adapt D75957 wire for use on circuit breakers before tractor, if used, Serial Range: -8958213
1шт.
2
D70035
BRACKET
- switch mounting
1шт.
3
L54683
SWITCH
- backup alarm
1шт.
4
169-144
SCREW,Sl Fil Hd, #6 - 32 x 1 1/4"
- fillister head, no. 6 - 32 NC x 1-1/4"
2шт.
5
195-507
WASHER,#6
- flat, no. 6
2шт.
6
195-7
WASHER,#6
- flat, no. 6
2шт.
7
193-89
LOCK WASHER,Ext-Int Tooth, #6
WASHER, LOCK, Ext-Int Tooth, #6
2шт.
8
129-15
NUT,#6-32
2шт.
9
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
1шт.
10
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
11
92-6
LOCK WASHER,3/8"
2шт.
12
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
2шт.
13
D70126
ELECTRICAL WIRE
WIRE -, Serial Range: switch-alarm
1шт.
14
193-1002
NUT,Keps, #8 - 32, w/ Ext Tooth LW
- hex, no. 8 - 32 NC
2шт.
15
D70026
BRACKET
- backup alarm, causes alarm to point rearwared
1шт.
15a
D75815
BRACKET
- backup alarm, causes alarm to point down
1шт.
16
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
17
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
18
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
19
D5182-
ALARM - backup, points rearward, order D75814
1шт.
Ref. 19, 19A - D51820 and D75814 alarms - These are both round alarms. For rectangular alarm order D121972.
1шт.
19a
D75814
BUZZER
ALARM - backup, points rearward or downward
1шт.
20
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
3-4шт.
21
193-82
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
1шт.
22
D70125
ELECTRICAL WIRE
WIRE - alarm ground
1шт.
23
92-5
LOCK WASHER,5/16"
3-4шт.
24
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
3-4шт.
25
L18331
CABLE TIE,375.9mm L, Nylon, Black
STRAP - wire tie
6шт.
Выбрано товаров: 30
