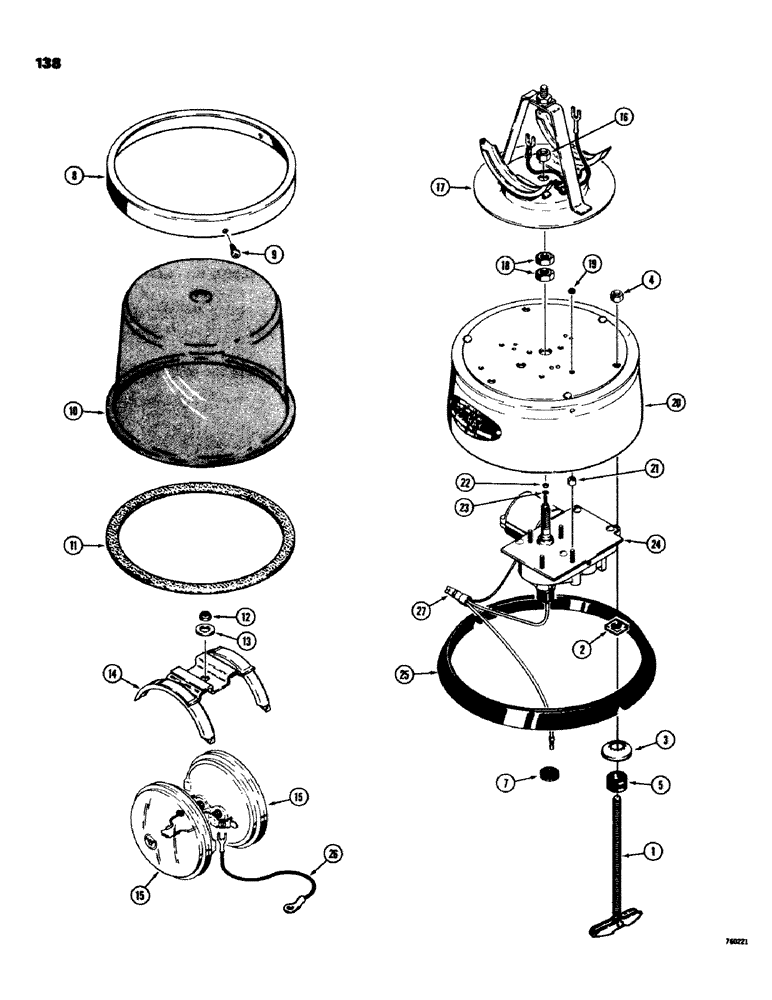

Запчасти Case 580C (138) - ROTATING BEACON (04) - ELECTRICAL SYSTEMS

F93158

LAMP

BEACON KIT - rotating, 360 degree amber, Includes: Ref. 1 - 27

1шт.

L35092

KIT

- beacon mounting, Includes: Ref. 1 - 7

1шт.

1

L35148

BOLT

- toggle, no. 10 - 24

3шт.

2

129-47

NUT

- square, no. 10 - 24

3шт.

3

L35146

LOCK WASHER

WASHER - lock, no. 10

3шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

5

F13115

GROMMET

- rubber, beacon mounting

3шт.

6

RESERVED

1шт.

7

A43211

GROMMET

- rubber, beacon wire

1шт.

L16099

SWITCH

ASSEMBLY - beacon, shown on Figure 134 and 136

1шт.

223-20

FUSE,20 Amp, Type SFE

- beacon switch, SFE 20

1шт.

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - rotating beacon, order F93158, Includes: Ref. 8 - 27

1шт.

8

L32219

RING - clamp, lens

1шт.

9

168-70

DRIVE SCREW,Type U, Rnd Hd, #8 x 3/8"

- self-tapping, no. 8 - 32 NC x 3/8"

3шт.

10

L32221

LENS

- amber

1шт.

11

L32220

GASKET - lens

1шт.

12

131-204

NUT,1/4"-20

NUT - hex, self lock, 1/4" NC

1шт.

13

95-4

WASHER,1/4"

- 5/16" x 3/4" x 1/16"

1шт.

14

L32222

BRACKET - retainer, sealed beam light

1шт.

15

D66204

LAMP

LIGHT - sealed beam

2шт.

16

129-303

NUT,3/8"-16, G5, LH

- hex, 3/8" - 24 NF, LH thread

1шт.

17

L32224

PLATE - mounting, light

1шт.

18

L32225

NUT

- special brass

2шт.

19

129-29

NUT - hex, no. 8 - 32 NC, plated

4шт.

20

L32226

BASE

- motor and lens

1шт.

21

L32228

SPACER

-, Serial Range: motor-base

1шт.

22

129-3

NUT,#4-40

2шт.

23

192-3

LOCK WASHER

- lock, no. 4

1шт.

24

D65187

MOTOR

- electric, 12 volt

1шт.

25

L32227

GASKET

- base

1шт.

26

L35144

WIRE - ground

1шт.

27

T29401

NUT

- twist-on, wire

1шт.
