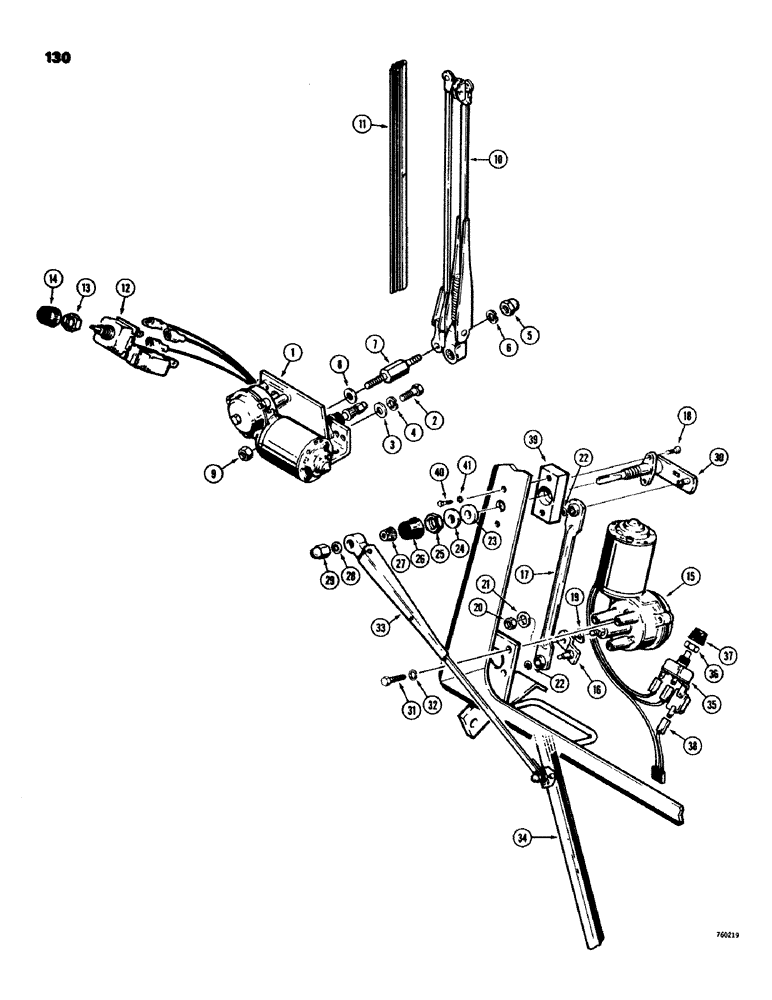

Запчасти Case 580C (130) - FRONT AND REAR WINDSHIELD WIPERS (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

MOTOR - windshield wiper, front, parts list Figure 132

1шт.

2

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

2шт.

3

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

4

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

2шт.

5

129-642

CROWN NUT,Crown, #10-24

- hex, cap, no. 10, plated

1шт.

6

195-513

WASHER,#10

- lock, no. 10, plated

1шт.

7

F43960

STUD

- panograph

1шт.

8

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

1шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

10

L35260

ARM

- wiper, 20"

1шт.

11

F42706

WINDSHIELD WIPER

BLADE - wiper, 19"

1шт.

12

A42660

SWITCH

- wiper, front

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- hex, switch

1шт.

14

A42578

KNOB

- switch

1шт.

15

REF

INSTRUCTION

MOTOR - wiper, rear, parts list Figure 132

1шт.

16

A36091

ARM

- drive

1шт.

17

D71412

LINK

- drive

1шт.

18

F44456

SCREW,0.19" - 32 x 3 3/4"

AND WASHER - wiper, order items 18A and 18B

2шт.

18a

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- pan head, slotted, no. 10 - 32 NF x 1/2", not shown

2шт.

18b

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Not shown #10

2шт.

19

D71411

WASHER

- wave

1шт.

20

F44452

LOCK NUT

- special lock

1шт.

21

A22431

WASHER

- spacer

2шт.

22

D71414

CLIP

- spring

2шт.

D71415

SHAFT

ASSEMBLY - wiper, Includes: Ref. 23 - 30

1шт.

23

D71417

SPECIAL WASHER

WASHER - fiber

1шт.

24

D71418

WASHER

- steel

1шт.

25

D71419

NUT

- shaft

1шт.

26

D71420

CAP

- shaft

1шт.

27

D71421

TOOL

DRIVE - knurled

1шт.

28

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

29

D71422

NUT

- cap

1шт.

30

NSS

NOT SOLD SEPARAT

SHAFT - wiper

1шт.

NSS wiper shaft - Old part nbr was F96636 (which now subs to N7274).

1шт.

31

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

3шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

33

F43789

ARM

- wiper, 18", rear

1шт.

34

F43938

WIPER BLADE

BLADE - rear wiper

1шт.

35

A42660

SWITCH

- rear wiper

1шт.

36

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- hex, switch mounting

1шт.

37

A42578

KNOB

- switch

1шт.

38

F93877

ELECTRICAL WIRE

WIRE - wiper, rear

1шт.

39

R37439

BLOCK

- wiper mounting, part of rear window frame, see Figure 516

1шт.

R37439 rear wiper mounting block - The reference to "part of rear window frame" should be deleted.

1шт.

40

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
