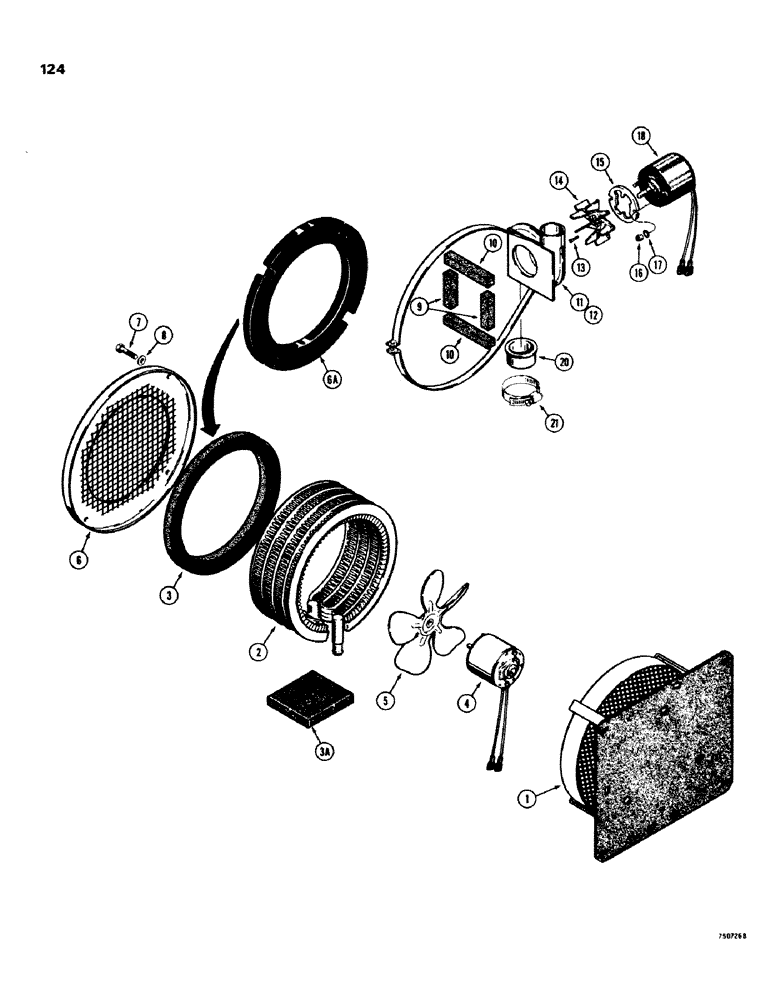

Запчасти Case 580C (124) - CAB HEATER AND DEFROSTER (04) - ELECTRICAL SYSTEMS

F93834

HEATER

ASSEMBLY - cab, Includes: Ref. 2 - 8

1шт.

1

F43809

CASE

- heater

1шт.

2

F43810

CORE, RADIATOR

CORE - heater

1шт.

3

D83118

ISOLATOR

INSULATOR - heater

1шт.

D83118 insulator - This part goes around Ref. 4 heater motor.

1шт.

3a

N6519

SEAL

GASKET - heater core, replaces two small rings on some heaters

1шт.

4

F43811

MOTOR

- heater

1шт.

5

F43812

FAN

- heater, 8" (203 mm) dia

1шт.

6

F43813

GRILLE

COVER - heater

1шт.

6a

D83121

GASKET

- cover

1шт.

7

187-996

SELF-TAP SCREW,1/4" x 1"

BOLT - hex, self-tapping, 1/4" - 20 NC x 1"

4шт.

8

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

D69710

DEFROSTER

- cab, Includes: Ref. 9 - 18

1шт.

9

REF

INSTRUCTION

STRIP - rubber, 2.5" (64 mm) long cut from D71303

2шт.

For window defroster fan see Figures 127 and 129.

1шт.

10

REF

INSTRUCTION

STRIP - rubber, 4.4" (112 mm) long cut from D71303

2шт.

For window defroster fan see Figures 127 and 129.

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - intake side

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - exhaust side

1шт.

13

187-1040

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW - no. 6 - 32 NC x 3/8"

2шт.

14

D71305

FAN - defroster

1шт.

15

L32699

SHIM

- motor

1шт.

16

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self lock, no. 10 - 32 NF

2шт.

17

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

18

F43811

MOTOR

- defroster, 14 volt

1шт.

19

RESERVED

1шт.

20

353-33

PLUG,Cap, 1.945" OD

- defroster suction

1шт.

21

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

plug #24, 1.06/2.00 Type F Worm

1шт.

D71303

SEAL - rubber, bulk roll, not shown, 25 ft (7620 mm)

1шт.

For window defroster fan see Figures 127 and 129.

1шт.
