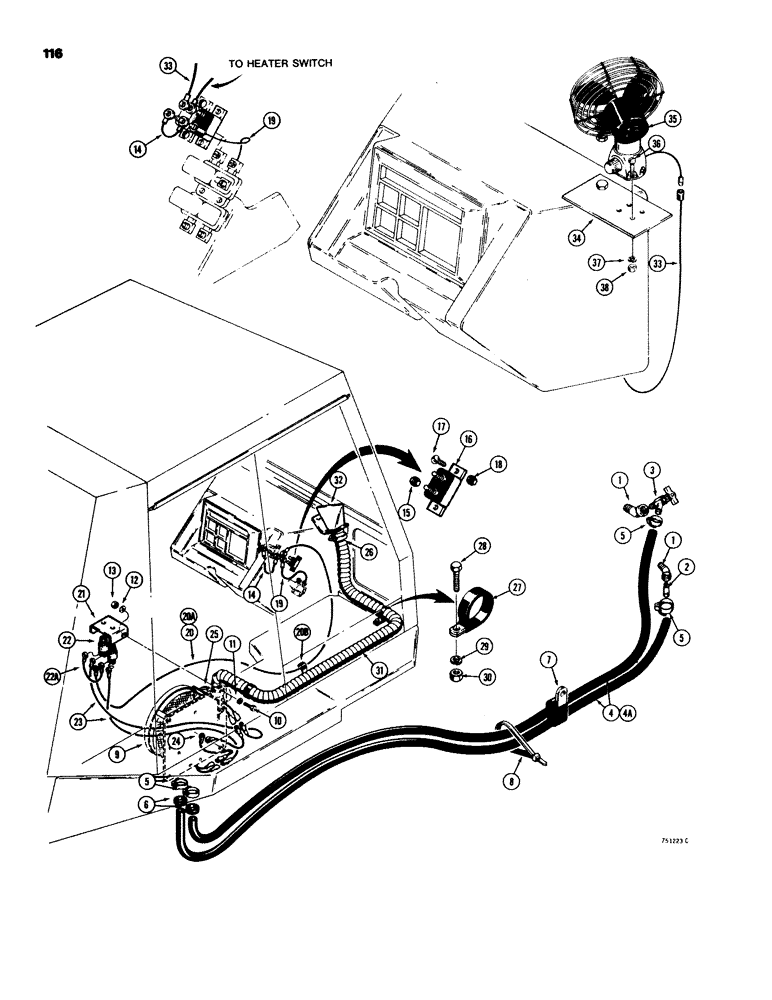

Запчасти Case 580C (116) - CAB HEATER AND DEFROSTER SYSTEM, BEFORE TRACTOR S/N 8958213 (04) - ELECTRICAL SYSTEMS

1

D73369

FITTING

street, 45 degree 3/8" NPT

2шт.

2

L17985

FITTING,3/8" - 18 NPT

NIPPLE - 3/8" NPT

1шт.

3

A16764

VALVE

water shutoff

1шт.

4

D72024

HEATER HOSE

HOSE, heater, models with heater on RH side of cab, 102" (2591 mm) long

2шт.

4a

L52722

HOSE ASSY.

heater, models with heater on LH side of cab, 151" (3835 mm) long

2шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

heater hose

4шт.

6

D73137

GROMMET

heater hose

2шт.

7

L50799

SHIN

CLAMP - heater hoses, if used

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

heater hose tie

4шт.

9

F93834

HEATER

cab, parts list Figure 124

1шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3-4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3-4шт.

12

195-521

WASHER,5/16", SAE

flat, 5/16", plated

3-4шт.

13

9635082

NUT,5/16" - 18, Gr 5

3-4шт.

14

D67962

jumper, Serial Range: breaker-breaker

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

hex, lock, no. 10 - 32 NF

2шт.

16

D37203

BREAKER

15 amp

1шт.

17

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

pan head, slotted, no. 8 - 32 NC

2шт.

18

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

hex, lock, no. 8 - 32 NC

2шт.

19

D67961

relay to circuit breaker

1шт.

20

A56103

to heater switch, 80" (2032 mm) long, if used

1шт.

20a

D69903

to heater switch, 95" (2413 mm) long, if used

1шт.

20b

80049853

YOKE

wire, if used

3шт.

21

D69895

BRACKET

heater and defroster switch mounting

1шт.

22

D75650

SWITCH

heater and defroster

1-2шт.

22a

D69950

jumper, switch to switch, if used

1шт.

23

D69901

, Serial Range: switch-heater

1-2шт.

24

D69902

ELECTRICAL WIRE

heater ground

1шт.

25

REF

INSTRUCTION

parts list and related parts Figure 124, models w/ defroster blower and tube

1шт.

Models with Defroster Blower and Tube

1шт.

26

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

models w/ defroster blower and tube #24, 1.06/2.00 Type F Worm

2шт.

Models with Defroster Blower and Tube

1шт.

27

R14192

CLAMP,2", Insul, 3/8" Bolt

P-type, models w/ defroster blower and tube

2шт.

Models with Defroster Blower and Tube

1шт.

28

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Models w/ defroster blower and tube Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

Models with Defroster Blower and Tube

1шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Models w/ defroster blower and tube 3/8"

2шт.

Models with Defroster Blower and Tube

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Models w/ defroster blower and tube 3/8"-16, G5

2шт.

Models with Defroster Blower and Tube

1шт.

31

D69884

models w/ defroster blower and tube

1шт.

Models with Defroster Blower and Tube

1шт.

32

D70801

DEFLECTOR - tube , blower

1шт.

Models with Defroster Blower and Tube

1шт.

33

D72991

breaker to fan, models w/ defroster blower and tube

1шт.

Models with Defroster Window Fan

1шт.

34

D74031

LARGE PLATE

fan mounting, models w/ defroster blower and tube

1шт.

Models with Defroster Window Fan

1шт.

35

L13468

FAN

parts list Figure 126, models w/ defroster blower and tube

1шт.

Models with Defroster Window Fan

1шт.

36

169-137

SCREW - machine, no. 10 - 24 NC x 5/8", plated, models w/ defroster blower and tube

4шт.

Models with Defroster Window Fan

1шт.

37

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Models w/ defroster blower and tube #10

4шт.

Models with Defroster Window Fan

1шт.

38

129-17

NUT,Hex, #10 - 24

hex, no. 10 - 24 NC, plated, models w/ defroster blower and tube

4шт.

Models with Defroster Window Fan

1шт.
