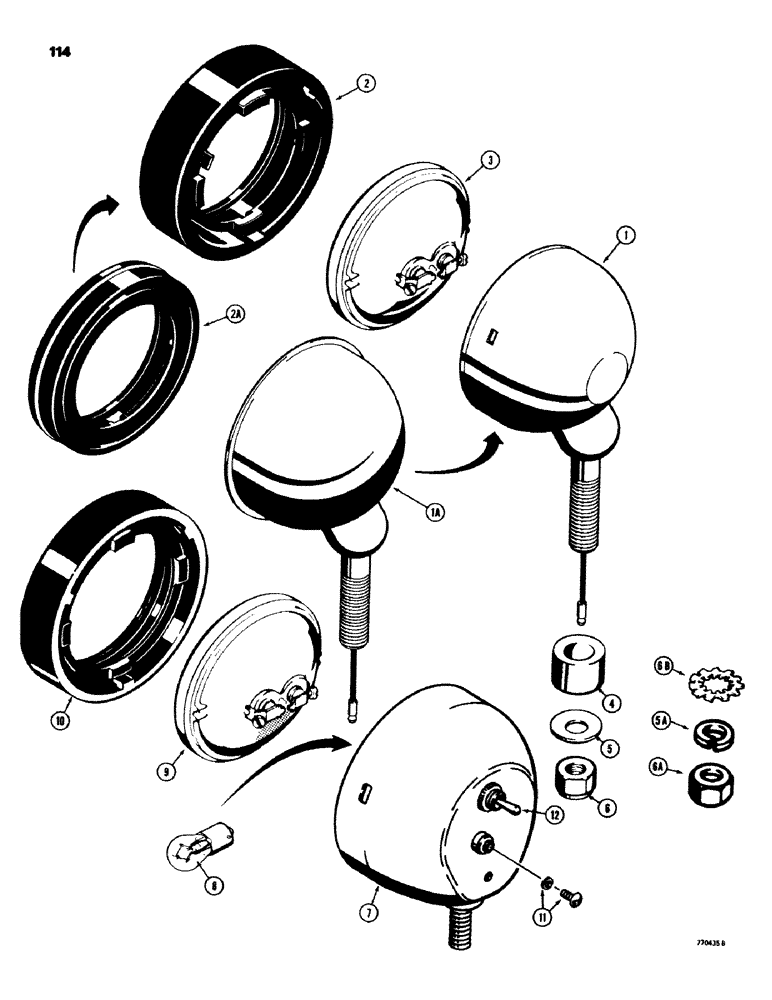

Запчасти Case 580C (114) - TRACTOR LIGHTS, D88684 REAR FLOODLIGHT (04) - ELECTRICAL SYSTEMS

D88684

LAMP

LIGHT ASSEMBLY - rear flood, interchangeable with D49976, Includes: Ref. 1 - 6A

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL - light, accepts Ref. 2 only

1шт.

1a

NSS

NOT SOLD SEPARAT

SHELL - light, accepts Ref. 2A only

1шт.

2

A25213

RETAINER

light, rubber, locks to shell with 3 rubber tabs, if used

1шт.

2a

N6160

LAMP

RETAINER - light, rubber, locks over shell flange, if used

1шт.

3

A11280

LAMP

sealed bear, no. 4411

1шт.

4

D37048

BUSHING

pivot

1шт.

5

195-106

WASHER,1/2"

flat, 1/2"

1шт.

5a

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

1шт.

6

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

hex, self lock, 1/2" - 20 NF, if used

1шт.

6a

129-165

JAM NUT,Jam, 1/2"-20, G5

If used Jam, 1/2"-20, G5

1шт.

6b

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , If used Ext-Int Tooth, 1/2"

2шт.

D70115

LAMP

LIGHT ASSEMBLY - flood and tail, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

SHELL - light, D70115 flood and tail light

1шт.

7

NSS

NOT SOLD SEPARAT

SHELL - light, D70115

1шт.

8

33686

BULB

tail, no. 1141, D70115 flood and tail light

1шт.

9

D71409

BULB

LAMP - sealed beam, no. 4409X, D70115 flood and tail light

1шт.

10

A25213

RETAINER

sealed beam, D70115 flood and tail light

1шт.

11

193-543

SCREW,Hex Was Hd, #8-32 x 3/8"

LOCKWASHER ASSEMBLY - no. 8 - 32 NC x 3/8", D70115 flood and tail light

1шт.

12

D80517

SWITCH

includes wire, toggle type, D70115 flood and tail light

1шт.
