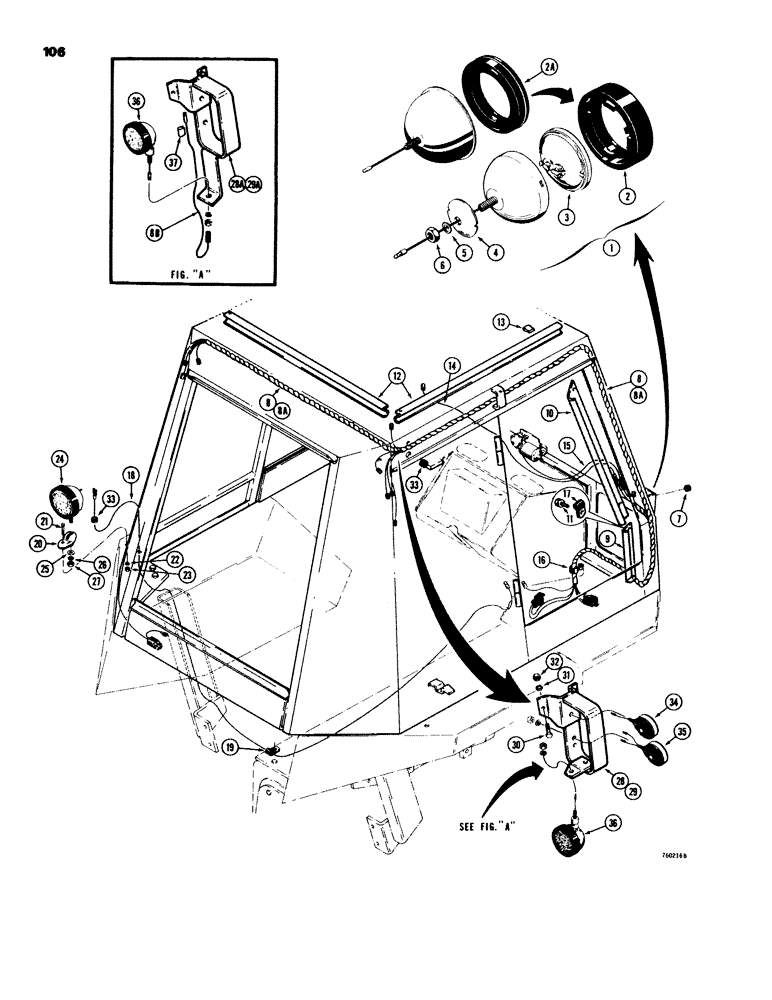

Запчасти Case 580C (106) - CAB ELECTRICAL SYSTEM AND LIGHTS (04) - ELECTRICAL SYSTEMS

1

D88547

LAMP BASE

LIGHT ASSEMBLY - front, interchangeable with A59701, Includes: Ref. 2, 2A and 3

2шт.

2

A25213

RETAINER

light, locks to shell with 3 rubber tabs, if used

1шт.

2a

N6160

LAMP

RETAINER - light, locks over shell flange, if used

1шт.

3

A11280

LAMP

sealed beam, no. 4411

1шт.

4

A59702

RETAINER

WASHER - retainer

2шт.

5

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

6

129-104

NUT,7/16"-14, G5

hex, 1/2" - 13 NC, plated

2шт.

7

F53322

rubber

2шт.

8

F43962

WIRE HARNESS

HARNESS - cab, used before cab, order 8A and 8B, Serial Range: -7867204

1шт.

8a

F44608

HARNESS

cab, used on cab, Start Serial: 7867204

1шт.

8b

F44607

ELECTRICAL WIRE

harness extension, can be used to adapt F43962 harness for use on cab, Start Serial: 7867204

2шт.

9

F44338

CHANNEL

lower front, wire

1шт.

10

F44337

CHANNEL

upper front, wire

1шт.

11

187-1046

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

self-tapping, 3/8" - 16 NC x 5/8", plated

4шт.

12

F44339

CHANNEL

upper, wire

1шт.

13

F44407

CLIP

wire

10шт.

14

R37316

ELECTRICAL WIRE

to LH front light

1шт.

15

R37315

ELECTRICAL WIRE

to front wiper

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

cab harness

1шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

cab harness

1шт.

18

D70747

ELECTRICAL WIRE

rear fender light, used w/ fender mounted rear lights

1шт.

19

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

wire, used w/ fender mounted rear lights

1шт.

20

A34046

BRACKET

used w/ fender mounted rear lights

1шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used w/ fender mounted rear lights Hex, 3/8"-16 x 1 1/2", G5

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used w/ fender mounted rear lights 3/8"

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used w/ fender mounted rear lights 3/8"-16, G5

1шт.

24

D70115

LAMP

LIGHT - flood and tail, parts list Figure 114, used w/ fender mounted rear lights

1шт.

25

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, used w/ fender mounted rear lights

1шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used w/fender mounted rear lights 1/2"

1шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used w/ fender mounted rear lights 1/2"-13, G5

1шт.

28

F96596

PLATE

BRACKET - optional , RH, used before cab sn 7867204, used w/ upper rear lights and flashers

1шт.

28a

F96702

FRAME

BRACKET - optional r mounting, RH, used on cab 7867204 and after, used w/ upper rear lights and flashers

1шт.

29

F96595

PLATE

BRACKET - optional mounting, LH, used before cab sn 7867204, used w/ upper rear lights and flashers

1шт.

29a

F96701

FRAME

BRACKET - optionalmounting, LH, used on cab 7867204 and after, used w/ upper rear lights and flashers

1шт.

30

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used w/ upper rear lights and flashers Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used w/ upper rear lights and flashers 3/8"

4шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used w/ upper rear lights and flashers 3/8"-16, G5

4шт.

33

L13765

GROMMET

wire, used w/ upper rear lights and flashers

2шт.

34

D49734

LAMP

parts list Figure 112, used w/ upper rear lights and flashers

2шт.

35

D49733

LAMP

stop and tail, parts list Figure 112, used w/ upper rear lights and flashers

2шт.

36

REF

INSTRUCTION

ASSEMBLY - flood, parts list Figure 114, used w/ upper rear lights and flashers

2шт.

37

214-1105

CLIP

wire, if used, used w/ upper rear lights and flashers

10шт.
