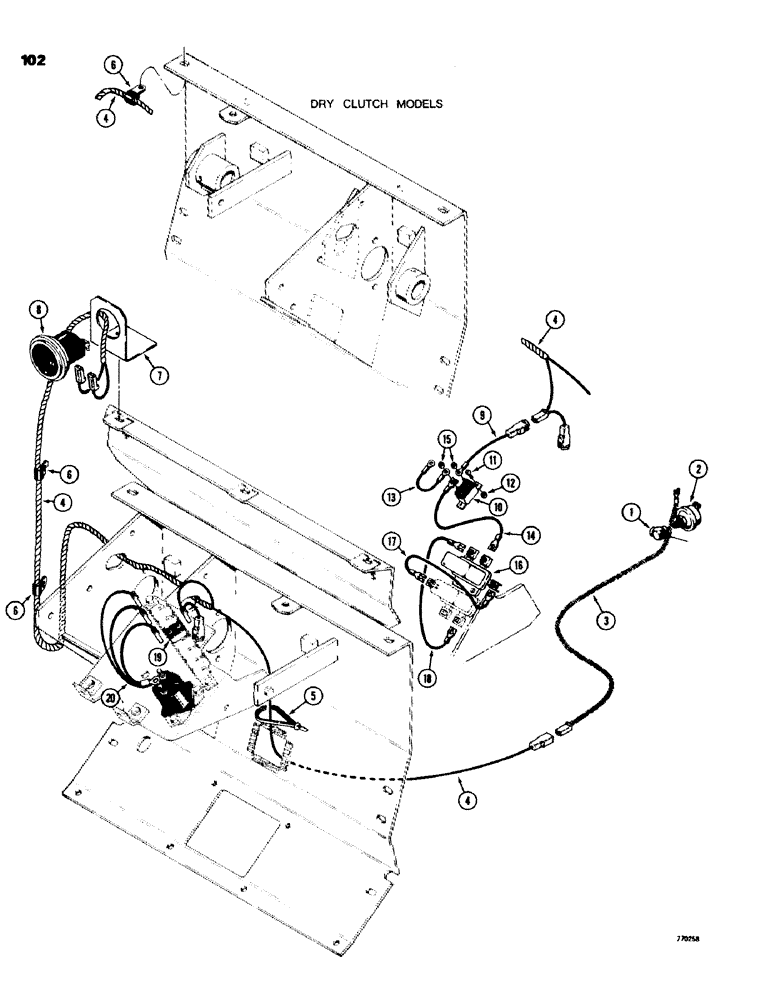

Запчасти Case 580C (102) - HOURMETER ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

FITTING - 1/8" NPT, at engine

1шт.

2

D65458

SWITCH

SENDING UNIT - hourmeter, at engine

1шт.

3

D75712

ELECTRICAL WIRE

from sending unit

1шт.

4

D76118

HARNESS

hourmeter

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

wire retaining

1шт.

6

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

wire retaining

2шт.

7

D75592

BRACKET

hourmeter

1шт.

8

D53047

GAUGE

HOURMETER ASSEMBLY

1шт.

9

D76214

ELECTRICAL WIRE

hourmeter harness to circuit breaker, used b4 trac, Serial Range: -8958213

1шт.

10

D37203

BREAKER

CIRCUI - 15 amp, used b4 trac, Serial Range: -8958213

1шт.

11

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

pan head, slotted, no. 8 - 32 NC, used b4 trac, Serial Range: -8958213

2шт.

12

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

hex, lock, no. 8 - 32 NC, used b4 trac, Serial Range: -8958213

2шт.

13

D67962

jumper, breaker to breaker, used b4 trac, Serial Range: -8958213

1шт.

14

D67961

breaker to relay, used b4 trac, Serial Range: -8958213

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

hex, lock, no. 10 - 32 NF, used b4 trac, Serial Range: -8958213

2шт.

16

L11508

RELAY

electrical, used b4 trac, Serial Range: -8958213

1шт.

17

D72922

no. 1 relay terminal connecting, used b4 trac, Serial Range: -8958213

1шт.

18

D72939

ELECTRICAL WIRE

no. 2 relay terminal connecting, used b4 trac, Serial Range: -8958213

1шт.

19

D78002

CIRCUIT-BREAKER

15 amp, used on trac, Start Serial: 8958213

1шт.

20

D75225

ELECTRICAL WIRE

circuit breaker to solenoid, used on trac, Start Serial: 8958213

1шт.
