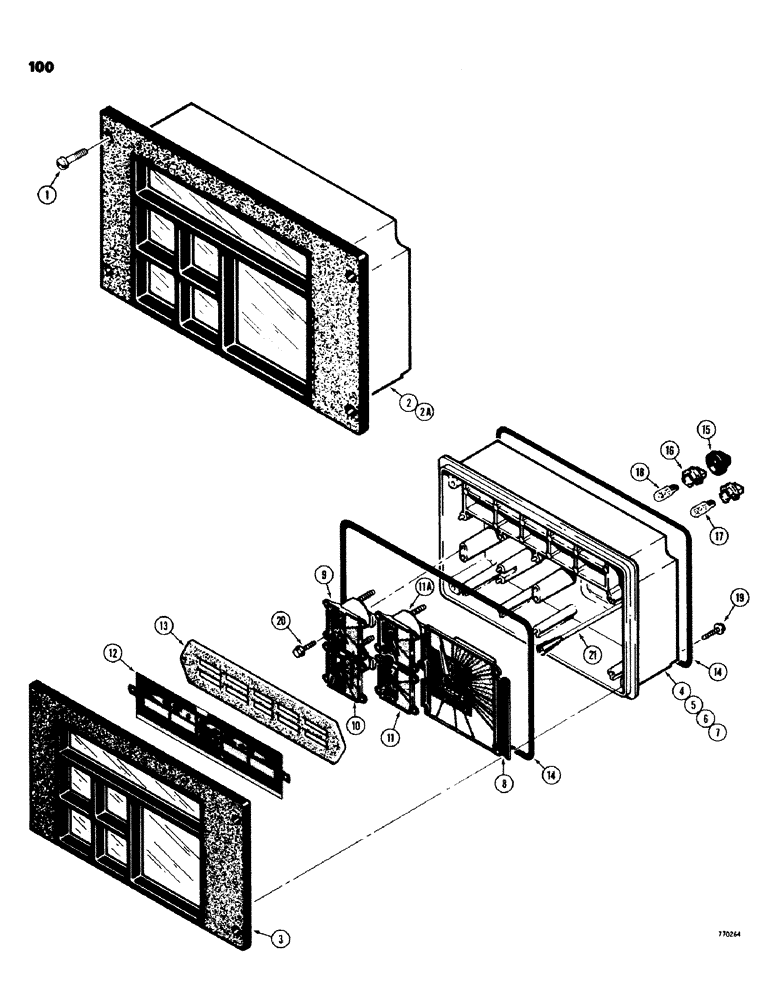

Запчасти Case 580C (100) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

1

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, slotted, no. 10 - 24 NC x 1/2"

4шт.

2

D67149

CLUSTER

- instrument, mechanical shuttle models only

1шт.

2a

D64276

CLUSTER

- instrument, power shuttle models only, Includes: Ref. 3 - 20

1шт.

3

D71334

LENS

COVER - cluster

1шт.

D71335

CASE ASSY.

CASE ASSEMBLY - cluster, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - cluster

1шт.

5

H422744

BOARD, PRINTED CIRCU

CIRCUIT BOARD - printed

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP - gauges

12шт.

7

NSS

NOT SOLD SEPARAT

GASKET - case

1шт.

8

D71336

TACHOMETER

GAUGE - tachometer

1шт.

9

D71337

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

10

D71338

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

11

D71339

VOLTMETER

GAUGE - voltmeter

1шт.

11a

D71340

ELECTRICAL GAUGE

GAUGE - oil temperature, used on power shuttle models only

1шт.

12

D71341

INDICATOR

STRIP - telltale light identification

1шт.

13

D71342

GASKET,3.05mm Thk

- lens

1шт.

14

D71343

GASKET,4.45mm Thk x 249.68mm ID

- cluster

2шт.

15

D71344

COVER

- rubber

3шт.

16

L35949

SOCKET/RECEPTACLE

SOCKET - lamp, green

10шт.

17

W10478

LAMP

BULB - cluster warning, no. 194

6-7шт.

18

D71346

TAIL LAMP,12V

BULB - cluster illumination, no. 168

3шт.

19

A45093

SCREW,Hex Slotted, 12.70"

- hex socket head, no. 6 x 3/4"

4шт.

20

A45093

SCREW,Hex Slotted, 12.70"

- hex socket head, no. 6 x 1/2"

8шт.

21

D68851

CABLE

- tachometer drive

1шт.
