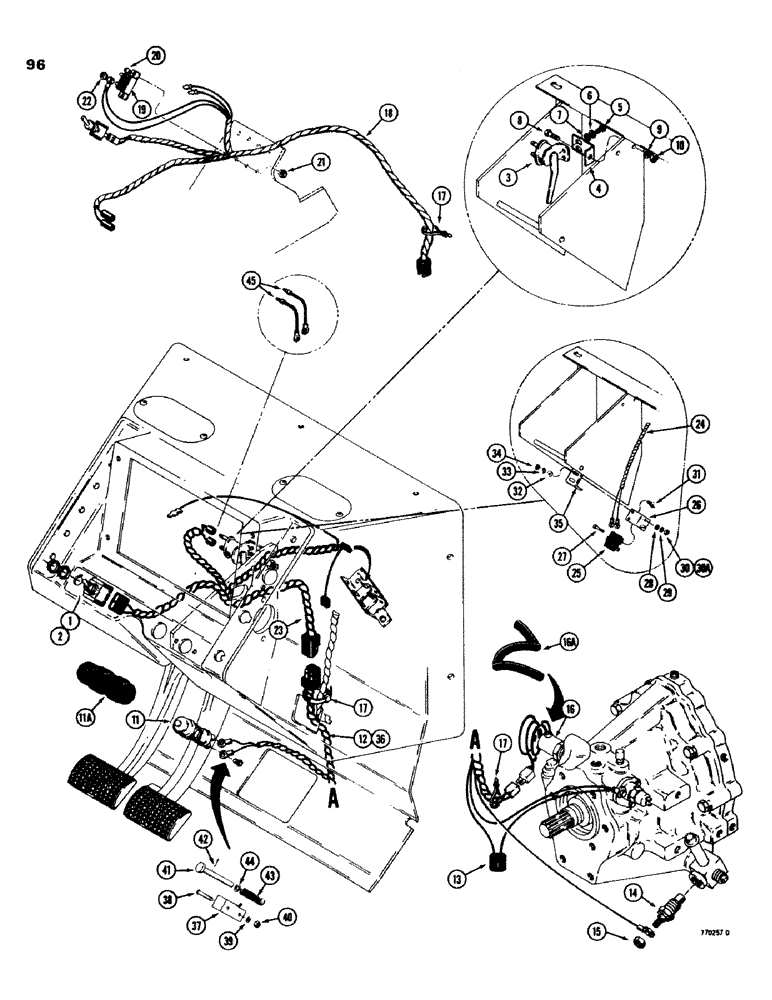

Запчасти Case 580C (096) - POWER SHUTTLE ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

D67251

SWITCH

clutch cutout, dash mounted, includes hardware

1шт.

2

D73929

PLATE

clutch cutout switch

1шт.

3

A33977

SWITCH

clutch cutout brake pedal, lever actuated, if used, see Ref. 25, Figure 98

1шт.

4

D73915

BRACKET

brake switch, if used, see Ref. 26, Figure 98

1шт.

5

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

no. 10 - 32 NF x 3/8", if used

2шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used #10

2шт.

7

195-513

WASHER,#10

flat, no. 10, plated, if used

2шт.

8

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

If used Hex, 1/4"-20 x 1", G5

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

1шт.

10

25-104

NUT,1/4"-20, G5

If used 1/4"-20, G5

1шт.

11

D71139

SWITCH

clutch cutout, floor, includes no. 10 terminal screws, Includes: Ref. 11A

1шт.

11a

60490

COVER - rubber, D71139 switch, not illustrated

1шт.

12

D73919

HARNESS

clutch cutout, lower, has terminals for no. 10 screws on Ref. 11

1шт.

13

L71879

DIODE ELEMENT,400V, 3A

switch protecting

1шт.

14

D65446

SENDER UNIT

transmission temperature

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

hex, lock, no. 10 - 32 NF

1шт.

16

D67903

SOLENOID

clutch cutout, at shuttle

1шт.

16a

D84688

GUARD

solenoid, wires, if used

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

harness retaining

1шт.

18

D73918

HARNESS

clutch cutout, upper, used b4 trac, Serial Range: -8958213

1шт.

19

D37252

BREAKER

CIRCUIT - 10 amp, used b4 trac, Serial Range: -8958213

1шт.

20

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8 - 32 NC x 1/2", used b4, Serial Range: -8958213

2шт.

21

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

hex, lock, no. 8 - 32 NC, used b4 trac, Serial Range: -8958213

2шт.

22

913-1000

hex, lock, no. 10 - 32 NF, used b4 trac, Serial Range: -8958213

2шт.

23

D75025

HARNESS

clutch cutout, upper, used on trac, Serial Range: 8958213-8976650

1шт.

24

D81402

HARNESS

clutch cutout, upper, used on trac, Start Serial: 8976651

1шт.

25

D40921

SWITCH

clutch cutout, brake pedal, roller actuated, used on trac, Start Serial: 8976651

1шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

26

D81326

BRACKET

brake switch, used on trac, Start Serial: 8976651

1шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

27

169-165

SCREW - no. 6 - 32 NC x 1-1/8", plated, used on trac, Start Serial: 8976651

2шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

28

195-507

WASHER,#6

flat, no. 6, plated, used on trac, Start Serial: 8976651

2шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

29

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, , Used on trac Ext-Int Tooth, #6, Start Serial: 8976651

2шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

30

129-15

NUT,#6-32

Used on tractor #6-32, Start Serial: 8976651

2шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

30a

193-1003

NUT,Keps, w/LW,#6-32

hex, special lock, n. 6 - 32 NC plated, used in place of Refs. 29 and 30 on some models, used on trac, Start Serial: 8976651

2шт.

31

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Used on trac Hex, 1/4"-20 x 3/4", G5, Full Thd, Start Serial: 8976651

2шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

32

195-18

WASHER,1/4"

flat, , used on trac 1/4", Start Serial: 8976651

2шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used on trac 1/4", Start Serial: 8976651

2шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

34

25-104

NUT,1/4"-20, G5

Used on trac 1/4"-20, G5, Start Serial: 8976651

2шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

35

D88356

BRACKET

switch mounting, welded to frame, used on trac, Start Serial: 8976651

1шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.

36

D84334

HARNESS

clutch cutout, lower, has terminals for no. 6 screws on Ref. 37, used on trac, Start Serial: 8985352

1шт.

37

D40921

SWITCH

clutch cutout, floor, roller actuated, includes no. 6 terminal screws, used on trac, Start Serial: 8985352

1шт.

38

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

no. 6 - 32 NC x 1-1/8", plated, subs to 470-10620 which is a no. 6 32 NC x 1-1/4", used on trac, Start Serial: 8985352

2шт.

39

195-507

WASHER,#6

flat, no. 6, plated, used on trac, Start Serial: 8985352

2шт.

40

193-1003

NUT,Keps, w/LW,#6-32

hex, special lock, no. 6 - 32 NC, plated, used on trac, Start Serial: 8985352

2шт.

41

D84327

ROD

switch actuating, used on trac, Start Serial: 8985352

1шт.

42

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Used on tractor 1/8" x 1", Slotted, Start Serial: 8985352

1шт.

43

T34088

SPRING

rod return, used on trac, Start Serial: 8985352

1шт.

44

195-525

WASHER,3/8", SAE

- flat, 7/8", plated, used on trac, Start Serial: 8985352

1шт.

45

D82525

WIRE - jumper harness to switch, if used, special parts

2шт.

Ref. 25 - 35 and 45 can be used to adapt roller actuated brake pedal switch to tractors before sn 8976651

1шт.
