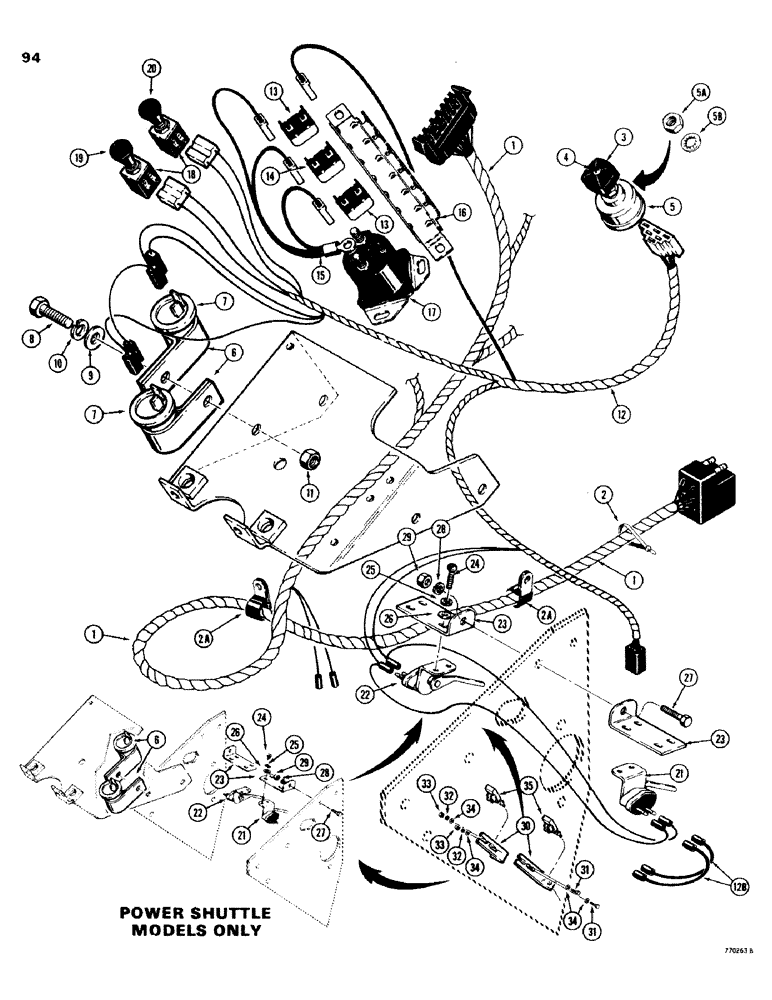

Запчасти Case 580C (094) - ELECTRICAL SYSTEM, MAIN HARNESS & CONNECTIONS, MODELS W/FLASHER LIGHTS, TRACTORS S/N 8958213 & AFTER (04) - ELECTRICAL SYSTEMS

1

D88562

HARNESS

main, interchangeable with D75027

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

main harness

2шт.

2a

49838

CLAMP

wire

2шт.

3

A20465

KNOB

turn signal switch

1шт.

4

A20468

SCREW,Spcl, #8 - 32 x 5/16"

button retaining

1шт.

5

D52008

SWITCH

turn signal

1шт.

5a

A20467

NUT

special, 11/16" - 28 NF x 28, switch mounting

1шт.

5b

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, , If used Int Tooth, 3/4"

1шт.

6

A34868

CLAMP

flasher mounting

2шт.

7

A65550

FLASHER UNIT

12 volt

2шт.

A65550 flasher - Effective Sept, 1985 replaced by D133000 flasher.

1шт.

8

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

1шт.

12

D75958

WIRE HARNESS

HARNESS - lights and flashers, order Refs. 12A and 12B, Serial Range: -8984111

1шт.

12a

D84231

HARNESS

lights and flashers, not shown, Start Serial: 8984111

1шт.

12b

D86303

ELECTRICAL WIRE

jumper, adapts D84231 harness to lever type stop light switches

4шт.

13

D78002

CIRCUIT-BREAKER

15 amp

2шт.

14

D78001

CIRCUIT-BREAKER

10 amp

1шт.

15

D75225

ELECTRICAL WIRE

ASSEMBLY -, Serial Range: solenoid-breakers

1шт.

16

REF

INSTRUCTION

BRACKET - circuit breaker, see Figure 88

1шт.

17

REF

INSTRUCTION

SOLENOID - electrical, see Figure 88

1шт.

18

D74330

SWITCH

light

2шт.

D74330 switch - Mounting nut is part nbr N7557.

1шт.

19

D95783

KNOB

flood light

1шт.

20

D95782

KNOB

flasher

1шт.

21

A33976

SWITCH

stop, RH

1шт.

22

A33977

SWITCH

stop, LH

1шт.

23

D70492

BRACKET

brake switch mounting

2шт.

24

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

pan head, slotted, no. 10 - 32 NF x 7/16", plated

4шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

26

195-513

WASHER,#10

flat, no. 10, plated

4шт.

27

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1-2шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

29

25-104

NUT,1/4"-20, G5

1-2шт.

30

D84102

BRACKET

stop light switch, see Figure 236, Ref. 25A for mounting plate, Start Serial: 8984111

2шт.

31

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Stop light switches Hex, 1/4"-20 x 1", G5, Start Serial: 8984111

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Stop light switches 1/4", Start Serial: 8984111

2шт.

33

25-104

NUT,1/4"-20, G5

Stop light switches 1/4"-20, G5, Start Serial: 8984111

2шт.

34

195-18

WASHER,1/4"

flat, , stop light switches 1/4", Start Serial: 8984111

4шт.

35

D84030

SWITCH

plunger type, stop light switches, Start Serial: 8984111

2шт.
