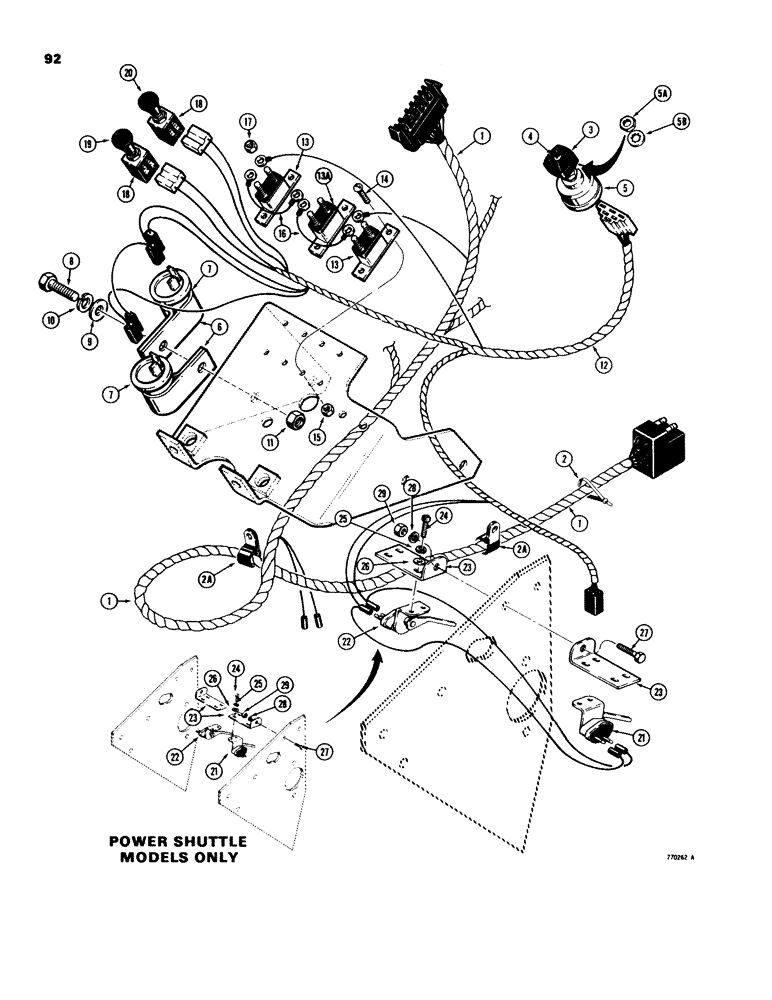

Запчасти Case 580C (092) - ELECTRICAL SYSTEM, MAIN HARNESS & CONNECTIONS, MODELS W/FLASHER LIGHTS, TRACTORS BEFORE S/N 8958213 (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D67956
HARNESS
- main
1шт.
2
L18331
CABLE TIE,375.9mm L, Nylon, Black
STRAP - main harness
1шт.
2a
49838
CLAMP
- wire
2шт.
3
A20465
KNOB
- turn signal switch
1шт.
4
A20468
SCREW,Spcl, #8 - 32 x 5/16"
- button retaining
1шт.
5
D52008
SWITCH
- turn signal
1шт.
5a
A20467
NUT
- special, 11/16" - 28 NF, switch mounting
1шт.
5b
193-25
LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN
WASHER - internal tooth lock, 3/4", if used
1шт.
6
A34868
CLAMP
- flasher mounting
2шт.
7
D133000
LIGHT, WARNING
FLASHER - 12 volt
2шт.
8
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
9
195-21
WASHER,5/16"
- flat, 5/16"
1шт.
10
92-5
LOCK WASHER,5/16"
1шт.
11
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
1шт.
12
D72921
HARNESS
- lights and flashers
1шт.
13
D37203
BREAKER
CIRCUIT BREAKER - 15 amp
2шт.
13a
D37252
BREAKER
CIRCUIT BREAKER - 10 amp
1шт.
14
182-86
SCREW,Slotted Pan Hd, #8-32 x 1/2"
- pan head, slotted, no. 8 - 32 NC x 1/2"
6шт.
15
193-1002
NUT,Keps, #8 - 32, w/ Ext Tooth LW
- hex, no. 8 - 32 NC
6шт.
16
D67962
WIRE - jumper, circuit breakers
2шт.
17
193-1000
NUT,Keps, w/LW,#10-32
- hex, no. 10 - 32 NF
6шт.
18
D74330
SWITCH
- light
2шт.
D74330 switch - Mounting nut is part nbr N7557.
1шт.
19
D95783
KNOB
- flood light
1шт.
20
D95782
KNOB
- flasher
1шт.
21
A33976
SWITCH
- stop, R.H.
1шт.
22
A33977
SWITCH
- stop, L.H.
1шт.
23
D70492
BRACKET
- brake switch mounting
2шт.
24
182-143
SCREW,Cross Pan Hd, #10 - 32 x 3/8"
- pan head, slotted, no. 10 - 32 NF x 7/16", plated
4шт.
25
192-18
LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND
WASHER, LOCK, #10
4шт.
26
195-513
WASHER,#10
- flat, no. 10, plated
4шт.
27
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
1-2шт.
28
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1-2шт.
29
25-104
NUT,1/4"-20, G5
1-2шт.
Выбрано товаров: 34
