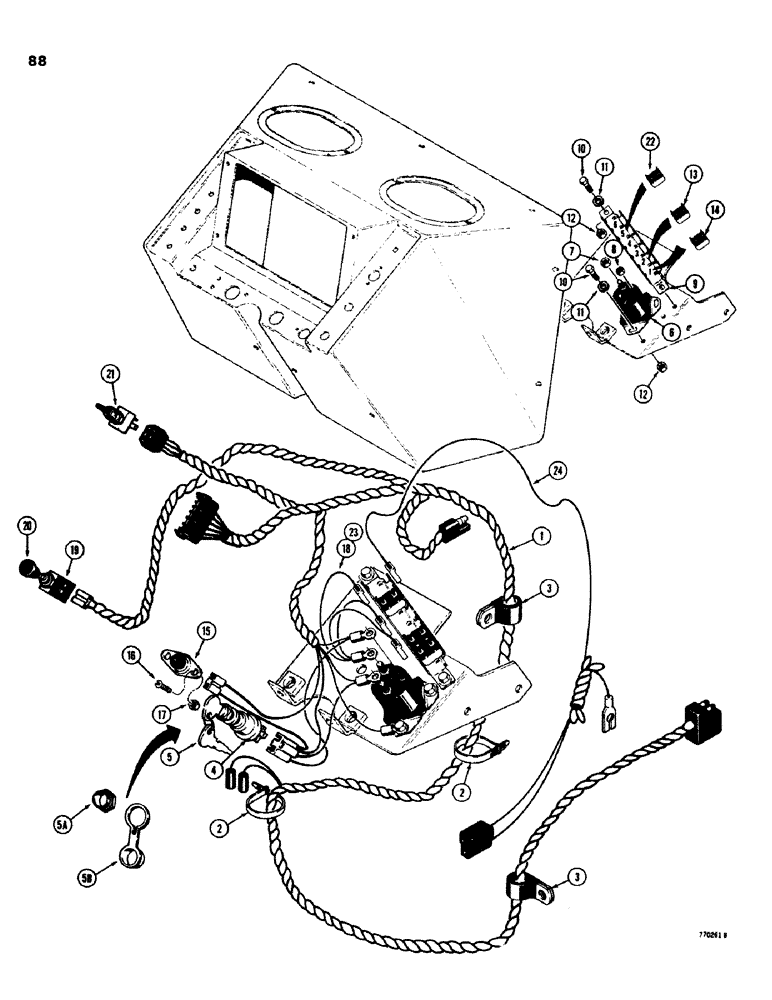

Запчасти Case 580C (088) - MAIN HARNESS AND CONNECTIONS, MODELS W/O FLASHER LIGHTS, TRACTOR S/N 8958213 & AFTER (04) - ELECTRICAL SYSTEMS

1

D88562

HARNESS

main, interchangeable with D75027

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

harness

2шт.

3

49838

CLAMP

wire

2шт.

4

D85872

SWITCH

ASSEMBLY - key, with protective cover, replaces switches without protective cover, Includes: Ref. 5, 5A and 5B

1шт.

5

D36822

KEY

switch, set of two keys

2шт.

5a

G15469

NUT

key, switch, correct size for D85872 switch with protective cover only

1шт.

5b

N6401

PROTECTIVE COVER

dirt and moisture protection

1шт.

6

A77311

SWITCH

SOLENOID - electrical

1шт.

7

193-1009

NUT,Keps, w/LW, 5/16"-18

hex, lock, 5/16" - 18 NC

2шт.

8

193-1000

NUT,Keps, w/LW,#10-32

hex, lock, no. 10 - 32 NF

1шт.

9

D75355

BRACKET

circuit breaker

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

11

95-4

WASHER,1/4"

lock, 1/4"

4шт.

12

183-1006

NUT - hex, lock, 1/4" - 20 NC

4шт.

13

D78001

CIRCUIT-BREAKER

10 amp

1шт.

14

D78002

CIRCUIT-BREAKER

15 amp

1шт.

15

D67872

SWITCH

pan head, slotted, no. 10 - 32 NF x 1/2"

1шт.

16

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

pan head, slotted, no. 10 - 32 NF x 1/2"

2шт.

17

193-1000

NUT,Keps, w/LW,#10-32

hex, lock, no. 10 - 32 NF

2шт.

18

D75225

ELECTRICAL WIRE

ASSEMBLY - solenoid to circuit breakers

1шт.

19

D74330

SWITCH

light

1шт.

20

D95781

BUTTON

KNOB - light switch

1шт.

21

D75360

SWITCH

test, air cleaner and hydraulic filter

1шт.

22

D78002

CIRCUIT-BREAKER

15 amp, used w/ cab only

1шт.

23

D75225

ELECTRICAL WIRE

solenoid to circuit breaker, used w/ cab only

1шт.

24

D75955

ELECTRICAL WIRE

to cab harness, used w/ cab only

1шт.
