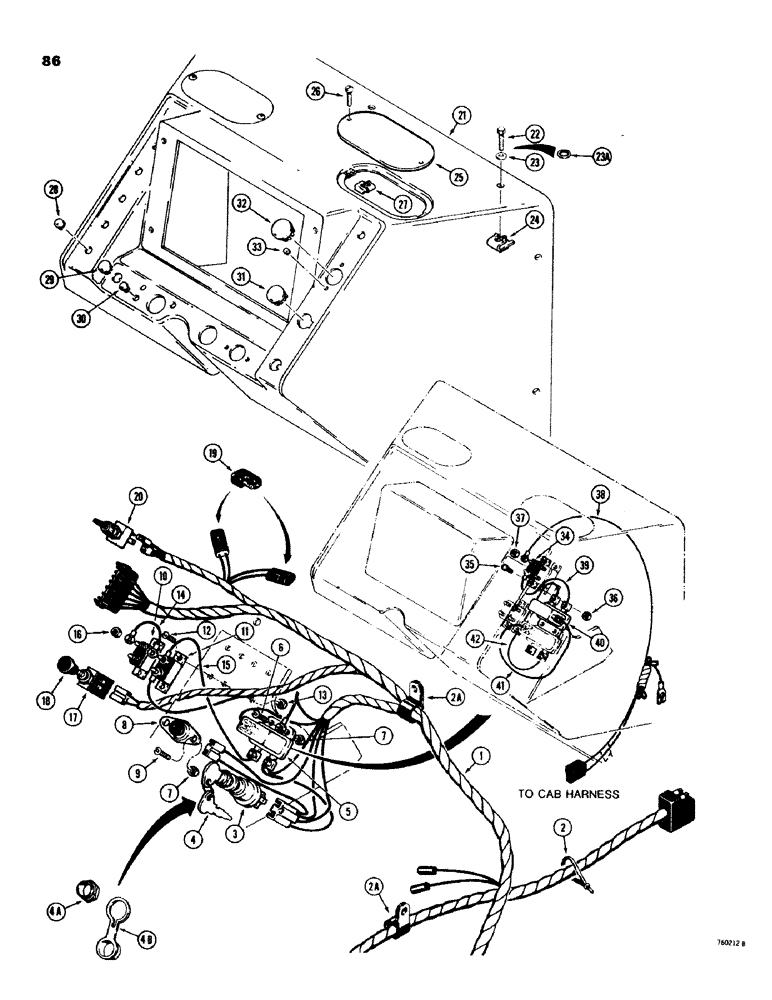

Запчасти Case 580C (086) - ELECTRICAL SYSTEM, MAIN HARNESS & INSTRUMENT PANEL, MODELS W/O FLASHER LIGHTS, BEFORE S/N 8958213 (04) - ELECTRICAL SYSTEMS

1

D67956

HARNESS

- main

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - harness

1шт.

2a

49838

CLAMP

- wire

2шт.

3

D85872

SWITCH

ASSEMBLY - key, with protective cover, replaces switches without protective cover, Includes: Ref. 4, 4A and 4B

1шт.

4

D36822

KEY

- switch, set of two keys

2шт.

4a

N7842

NUT

- key switch, correct size for D85872 switch with protective cover only

1шт.

4b

N6401

PROTECTIVE COVER

COVER - dirt and moisture protection

1шт.

5

L11508

RELAY

- electrical

1шт.

6

182-147

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

- pan head, slotted, no. 10 - 32 NF x 3/4"

2шт.

7

193-1000

NUT,Keps, w/LW,#10-32

- hex, lock, no. 10 - 32 NF

4шт.

8

D67872

SWITCH

- push button starter

1шт.

9

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- pan head, slotted, no. 10 - 32 NF x 1/2"

2шт.

10

D37252

BREAKER

CIRCUIT BREAKER - 10 amp

1шт.

11

D37203

BREAKER

CIRCUIT BREAKER - 15 amp

1шт.

12

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head, slotted, no. 8 - 32 NC x 1/2"

4шт.

13

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, lock, no. 8 - 32 NC

4шт.

14

D67962

WIRE - jumper, breaker

1шт.

15

D67961

WIRE - jumper, Serial Range: breaker-relay

1шт.

16

193-1000

NUT,Keps, w/LW,#10-32

- lock, no. 10 - 32 NF

4шт.

17

D74330

SWITCH

- light

1шт.

18

D95781

BUTTON

KNOB - light switch

1шт.

19

L71879

DIODE ELEMENT,400V, 3A

DIODE - switch protecting

2шт.

20

D67743

SWITCH

- test, air cleaner and hydraulic filter

1шт.

21

D81004

PANEL

- instrument, dashboard

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

23

195-521

WASHER,5/16", SAE

- flat, 5/16"

7шт.

23a

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Used with defroster fan Int Tooth, 5/16"

1шт.

24

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16"-18 NC

7шт.

25

D78247

COVER

- access hole, plastic, replaces metal cover

2шт.

26

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, slotted, no. 10 - 24 NC x 1/2"

4шт.

27

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, no. 10 - 24 NC

4шт.

28

353-402

PLUG,Dome, .375" hole, Nylon

5шт.

29

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

30

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16"

3шт.

31

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16"

1шт.

32

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

33

353-421

PLUG,Dome, .187" hole, Nylon

2шт.

34

D37203

BREAKER

CIRCUIT BREAKER - 15 amp, cab models only

1шт.

35

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head, slotted, no. 8 - 32 NC x 1/2"

2шт.

36

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, lock, no. 8 - 32 NF

2шт.

37

193-1000

NUT,Keps, w/LW,#10-32

- hex, lock, no. 10 - 32 NF

2шт.

38

D72915

WIRE - to cab harness, with eye terminal, order Refs. 38A and 38B

1шт.

38a

D75955

ELECTRICAL WIRE

WIRE - to cab harness, with spade terminal, not illustrated

1шт.

38b

D76214

ELECTRICAL WIRE

WIRE - adapts spade terminal to circuit breaker studs, not illustrated

1шт.

39

D67961

WIRE - jumper, to relay, cab models only

1шт.

40

L11508

RELAY

- electrical, cab models only

1шт.

41

D72922

WIRE - jumper, relays, cab models only

1шт.

42

D72939

ELECTRICAL WIRE

WIRE - jumper, relays, cab models only

1шт.
