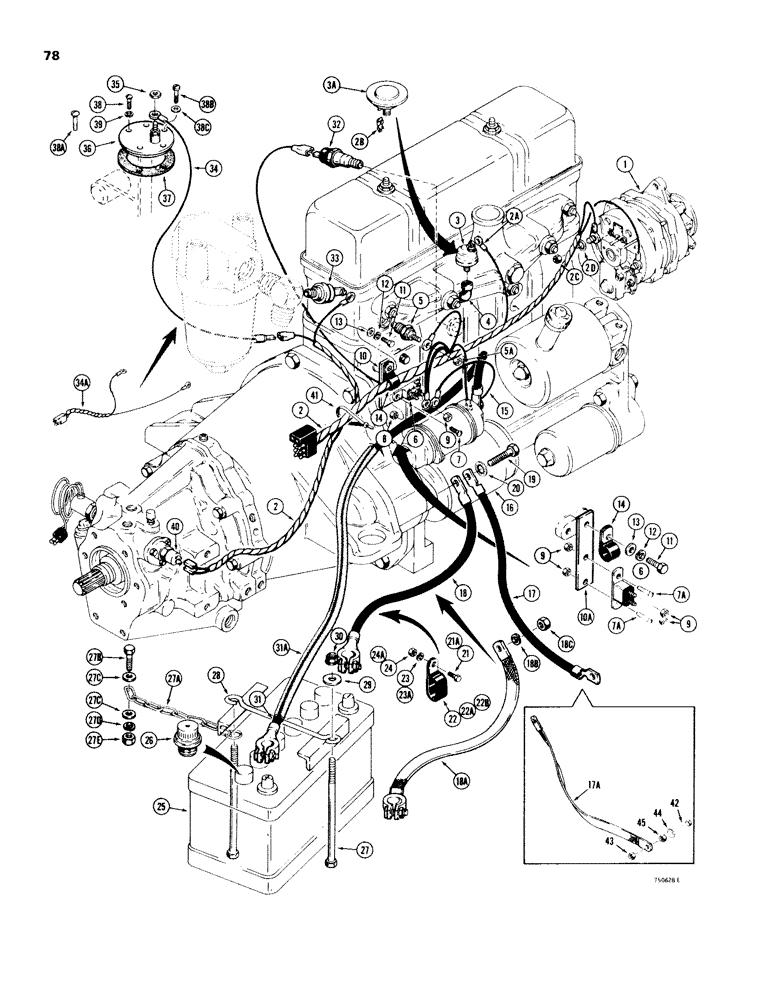

Запчасти Case 580C (078) - ELECTRICAL SYSTEM, FRONT HARNESS, ALTERNATOR, STARTER & BATTERY, BEFORE TRACTOR S/N 8965035 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - electrical, see Figures 62 - 68

1шт.

2

D67879

HARNESS

- front, used with Prestolite alternator, Includes: Ref. 2A, Serial Range: -8958213

1шт.

2

D73456

HARNESS

- front, used with Delco Remy alternator, Includes: Ref. 2A, Serial Range: -8958213

1шт.

2

D75026

WIRE HARNESS

HARNESS - front, used with Delco Remy alternator on tractor, not shown, see Ref. 34A, order D88442 harness and 223-59 terminal, Includes: Ref. 2A, Start Serial: 8958213

1шт.

2a

223-59

TERMINAL CONNECTOR

TERMINAL - eye for no. 8 stud, if used

1шт.

2b

223-94

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - connects to blade terminal, if used

1шт.

2c

129-18

NUT,#12-24

- hex, no. 12 - 24 NC, plated

1шт.

2d

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

3

D67721

SWITCH

SENDING UNIT - air filter restriction, has screw terminal, order Refs. 2B and 3A

1шт.

3a

A154782

SWITCH

SENDING UNIT - air filter restriction has blade terminal, if used

1шт.

4

221-374

ELBOW,90 Degree, 1/8" NPT

FITTING - 90 degree

1шт.

5

D65446

SENDER UNIT

SENDING UNIT - engine water temperature

1шт.

5a

193-1000

NUT,Keps, w/LW,#10-32

- hex, lock, no. 10 - 32 NF

1шт.

6

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amp

1шт.

7

182-86

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- pan head, slotted, no. 8 - 32 NC x 1/2", if used

2шт.

8

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, lock, no. 8 - 32 NC

2шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- hex, lock, no. 10 - 32 NF

2-4шт.

10

NSS

NOT SOLD SEPARAT

PLATE - breaker mounting, if used, order Ref. 10A

1шт.

10a

D74343

PLATE

STRAP - breaker mounting, if used

1шт.

11

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1-2шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

13

95-4

WASHER,1/4"

- flat, 1/4"

1шт.

14

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- harness mounting

1шт.

15

D67876

ELECTRICAL WIRE

WIRE - jumper

1шт.

16

REF

INSTRUCTION

STARTER - engine, see Figures 70 - 74

1шт.

17

F10142

CABLE

- ground, round

1шт.

17a

D73383

STRAP

CABLE - ground, flat

1шт.

18

D67874

CABLE

- battery, negative terminal, round

1шт.

18a

D73427

STRAP

CABLE - battery, negative terminal, flat

1шт.

18b

193-85

LOCK WASHER,Ext Tooth, 5/8"

WASHER - lock, 5/8", used with D72427 cable

1шт.

18c

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, lock, 5/8" - 11 NC, used with D72427 cable

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

1шт.

20

193-72

LOCK WASHER

- external-internal tooth, 3/8"

1шт.

21

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

21a

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

22

D34980

CLAMP

- battery cable, double round cables, if used

2шт.

22a

49386

O-RING,5/8" ID x 13/16" OD x 3/32"

CLAMP - battery cable, single round cables, if used

2шт.

22b

R21385

CLAMP

- battery cable, single round cable wrapped in hose, if used

3шт.

23

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

23a

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

24

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

2шт.

24a

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

2шт.

25

A38411

DRY BATTERY

- 12 volt, service replacement must be used with A60553 nonspill caps

1шт.

When replacing battery, use the 6 nonspill caps from old battery or order 6 P/N A60553 nonspill caps.

1шт.

26

A60553

CAP

- battery, nonspill

6шт.

27

115-215

BOLT,Hex, 3/8" - 16 x 9-3/4", Gr 2

- hex, 3/8" - 16 NC x 9-3/4"

2шт.

27a

D75052

CHAIN (AG)

CHAIN - door stop

1шт.

27b

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Chain attaching, drawbar models Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

27c

195-2034

WASHER,7/16" x 1 1/4" x .134"

- flat, 3/8", if used

2шт.

27d

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

27e

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

1шт.

28

D55559

HOOK

HOLDDOWN - battery

1шт.

29

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

30

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, special, 3/8" - 16 NC

2шт.

31

D80892

CABLE

- battery, positive

1шт.

31a

D75043

HOSE

- cable insulating, if used

1шт.

32

D63294

PRESSURE SWITCH

SENDING UNIT - oil pressure

1шт.

33

D65458

SWITCH

SENDING UNIT - oil filter restriction, stamped M4004-40, used with D73910 filter only, see Figure 368

1шт.

33

D87439

SWITCH

SENDING UNIT - oil filter restriction, stamped M4004-60, D84789 filter only, see Figure 368

1шт.

34

D67875

ELECTRICAL WIRE

WIRE - fuel sender, Serial Range: -8958213

1шт.

34a

D75028

ELECTRICAL WIRE

HARNESS - fuel and filter restriction senders, Start Serial: 8958213

1шт.

35

193-1000

NUT,Keps, w/LW,#10-32

- lock, no. 10 - 32 NC

1шт.

36

D63293

SENDER UNIT

SENDING UNIT - fuel

1шт.

37

A11822

GASKET

- fuel sender

1шт.

38

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

- pan head slotted, no. 10 - 32 NF x 3/8", use D75465 sealing screw

5шт.

38a

D75465

SCREW,#10 - 32 x 5/8"

- special sealing

4-5шт.

38b

182-553

SCREW,Cross Pan Hd, #10-32 x 5/8"

- pan head, no. 10 - 32 NF x 9/16", ground, if used

1шт.

38c

D83885

WASHER

- copper, ground screw, if used

1шт.

39

92-3

LOCK WASHER,#10

WASHER, LOCK, , Used with 182-143 screw only #10

5шт.

40

S113435

SWITCH

- neutral start, power shuttle

1шт.

40

A139078

SWITCH

- neutral start, mechanical shuttle, not shown

1шт.

41

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - wire harness

1шт.

42

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Used with flat battery cable Hex, 5/8"-11 x 2", G8

1шт.

43

129-183

NUT,5/8"-11, G8

Used with flat battery cable 5/8"-11, G8

1шт.

44

193-85

LOCK WASHER,Ext Tooth, 5/8"

WASHER - lock, 5/8", used with flat battery cable

1шт.

45

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, lock, 5/8" - 11 NC, used with flat battery cable

1шт.
