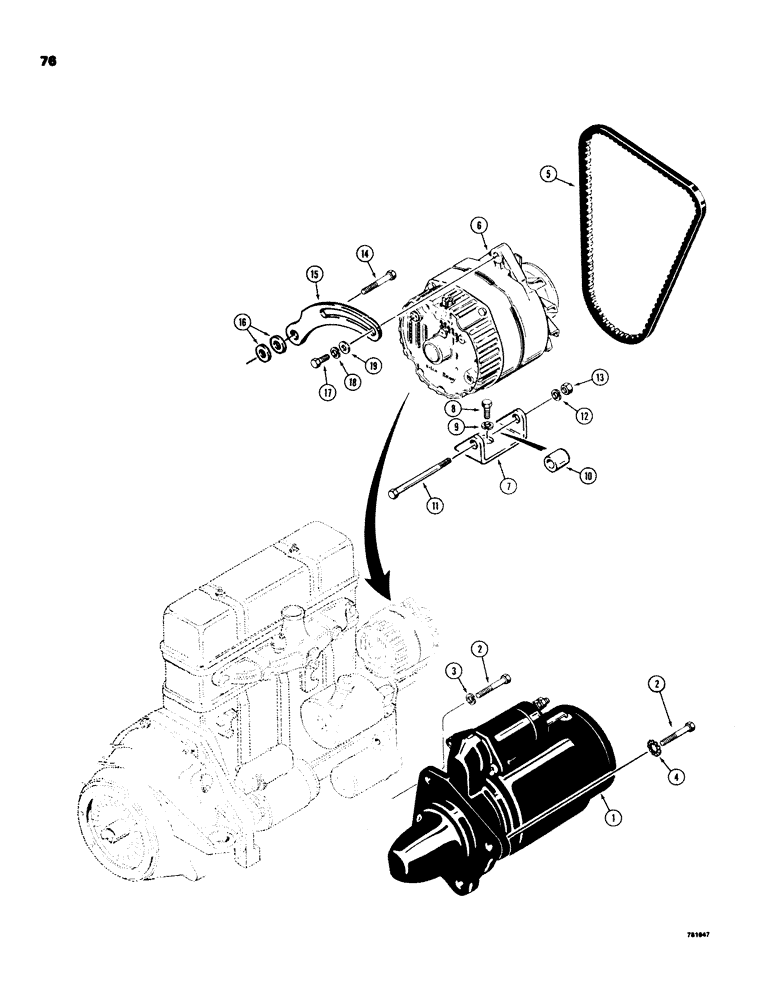

Запчасти Case 580C (076) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER - engine, see Figures 70-74

1шт.

2

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8" - 16 NC x 3-1/4"

3шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

193-72

LOCK WASHER

- external-internal tooth lock, 3/8"

1шт.

5

D73446

V-BELT,0.50" W x 51.50" L

Alternator and Fan Drive 0.50" W x 51.50" L

1шт.

6

REF

INSTRUCTION

ALTERNATOR - electrical, see Figures 62 - 68

1шт.

7

A138246

BRACKET

- alternator mounting

1шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

A138247

SPACER

- alternator

1шт.

11

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

14

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

15

A139258

STRAP

- alternator adjusting

1шт.

16

195-104

WASHER,3/8"

- alternator strap, flat, 3/8"

2шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

1шт.

17

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

If used Hex, M8 x 25, 8.8

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

195-103

WASHER,5/16"

- flat, 5/16"

1шт.
