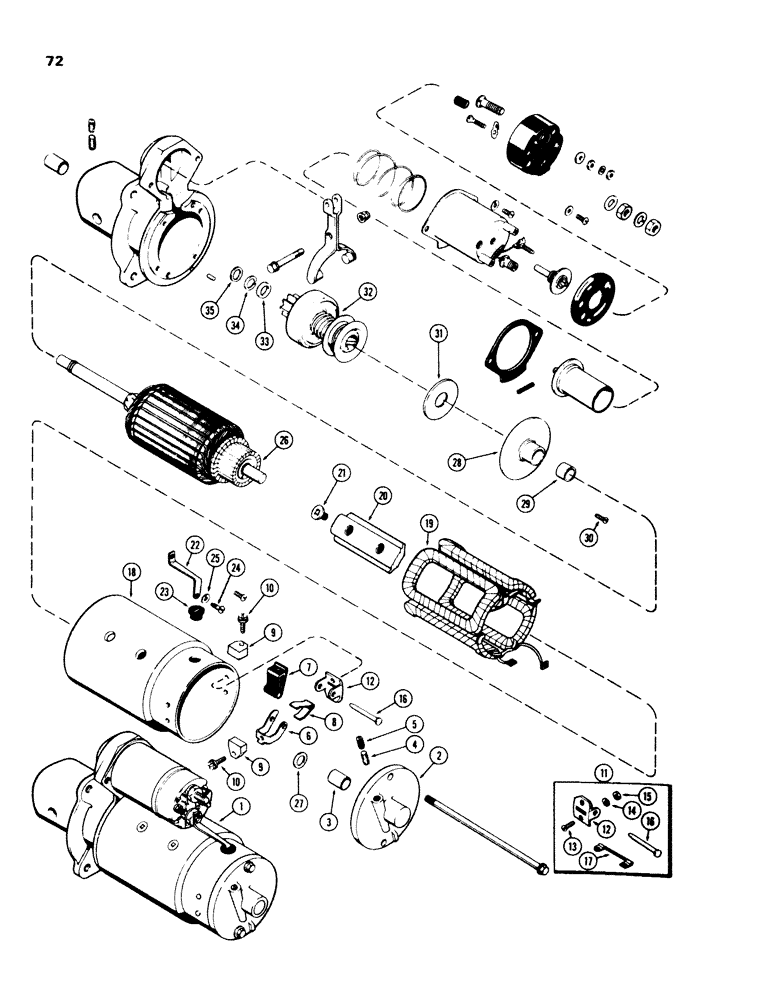

Запчасти Case 580C (074) - R29870 STARTER, DELCO-REMY (04) - ELECTRICAL SYSTEMS

R29870

STARTING MOTOR

STARTER ASSEMBLY - Includes: Ref. 36 - 62

1шт.

The R29870 subs to 104202A2R This starter changed from a 10 tooth gear to a 9 tooth gear for faster cranking speed. This changed the nose piece in the area of the offset. Megavolt gets more cores in on the 10 tooth gear and the offset is only .050 diff. between the two gears. at times the nose pieces get mixed up and the result is the starter gear won't mesh with the ring gear unless the starter mounting bolts are loose. On 2/26/96 (MEGA-VOLT) is in process of designing a fixture to readily identify th

1шт.

36

A44495

LUG

HOUSING ASSEMBLY - drive end, Includes: Ref. 37 - 39

1шт.

37

A25387

BEARING

BUSHING - drive housing, 1/2 x 5/8 x 13/16" (12.7 x 15.88 x 20.64 mm)

1шт.

38

R15023

WICK

- oiler

1шт.

39

221-1041

PLUG

- oil wick hole, 1/8" PT, slotted head

1шт.

40

R15041

PIN - locating, drive housing, 3/16 x 5/16"

1шт.

41

A40220

LEVER

- drive shaft

1шт.

42

A40520

BOLT

PIVOT - shift lever

1шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - pivot, 5/16" NC hex

1шт.

44

A25552

BOLT

BOLT - thru

2шт.

45

A40218

PLUNGER

- solenoid

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , plunger to shift lever 3/16" x 13/16", Slotted

1шт.

47

A40222

BOOT

- plunger protection

1шт.

49

G44891

SOLENOID

ASSEMBLY - Includes: Ref. 50 - 60

1шт.

SEE DELCO-REMY DEALER FOR PARTS ILLUSTRATED BUT NOT LISTED.

1шт.

50

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY

1шт.

51

A40221

SPRING

- plunger return

1шт.

52

A42061

SWITCH

CONTACT ASSEMBLY

1шт.

53

A42059

SPRING

- contact return

1шт.

54

A42060

HALF BLADE

BLADE - contact

1шт.

55

NSS

NOT SOLD SEPARAT

COVER - solenoid contact and terminals

1шт.

56

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: cover-solenoid

1шт.

57

129-16

NUT,#8-32

2шт.

58

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

59

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

60

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

61

A42023

SCREW,#10 - 32 x 1/2"

- solenoid and connector, 1/4 x 1/2" NC, round head

3шт.

62

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.
