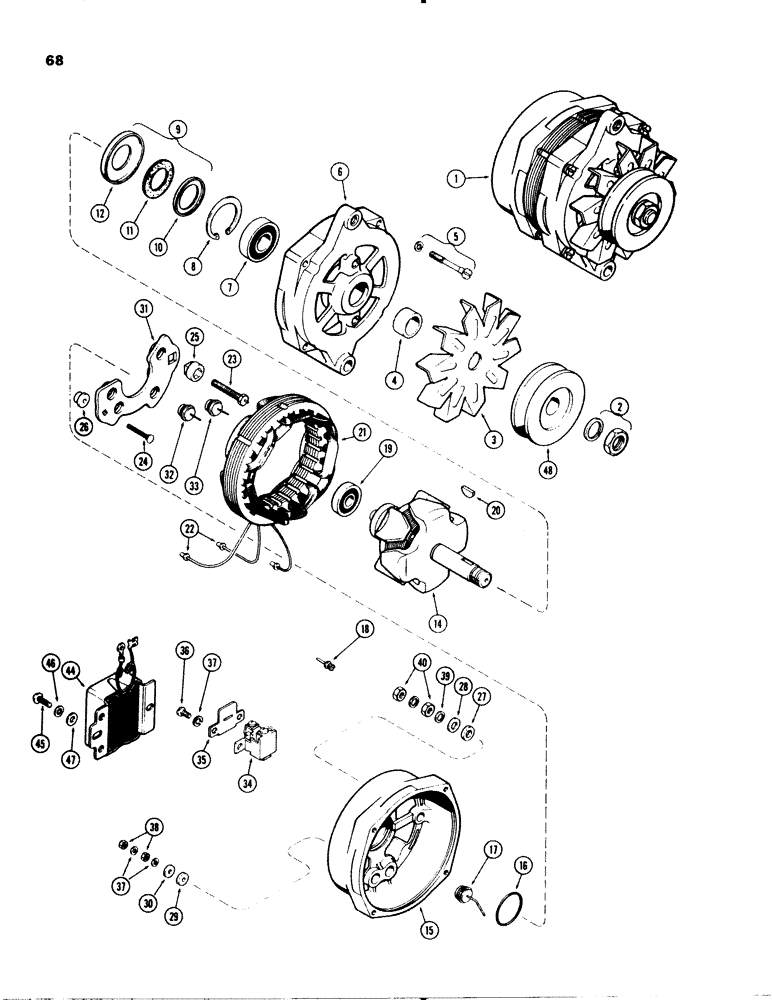

Запчасти Case 580C (068) - A33815 ALTERNATOR, PRESTOLITE NO. ALK-7314 (04) - ELECTRICAL SYSTEMS

1

A38815

ALTERNATOR

ALTERNATOR ASSEMBLY - (Prestolite #ALK-7314) (Production only) (Order 1-A45324 alternator, 1-A42777 pulley and 1-A44543 regulator), Includes: Ref. 2 - 12

1шт.

A45324

ALTERNATOR

SPARE PART ALTERNATOR ASSEMBLY - (Prestolite #ALK-6322S) (Repairs only) (Without pulley or regulator) (Replaces A42776), Includes: Ref. 2 - 12

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 63 AMP Alternator

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 61 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A45324

1шт.

103802A1C

CORE-ALTERNATOR

Return Part Number

1шт.

87746858

REMAN-ALTERNATOR

580C

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number

1шт.

104025A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 35 AMP Alternator

1шт.

104025A1C

CORE-ALTERNATOR

Return Part Number, 12 Volt, 35 AMP Alternator

1шт.

2

A40581

KIT

PACKAGE - nut and washer (Pulley retaining)

1шт.

3

A41066

FAN

FAN - ventilating

1шт.

4

A41078

BUSHING

SPACER - fan

1шт.

5

A41081

SPARE PART PACKAGE - thru bolt and washer (Set of 4)

1шт.

6

A42262

HEAD

SPARE PART HEAD ASSEMBLY - drive end, Includes: Ref. 7 - 12

1шт.

7

A45230

BEARING ASSY

BEARING - ball, 5/8 x 1-9/16 x 1/2" (15.88 x 39.69 x 12.7 mm)

1шт.

8

NSS

NOT SOLD SEPARAT

RING - snap, bearing retaining

1шт.

9

A42268

KIT

PACKAGE - seal and retainers, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - felt seal, outer

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - felt

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - felt seal, inner

1шт.

A45318

HEAD (CYLINDER)

HEAD AND ROTOR ASSEMBLY - (Replaces A42774 rotor and A42772 head), Includes: Ref. 14 - 40

1шт.

14

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

15

NSS

NOT SOLD SEPARAT

HEAD ASSEMBLY - slip ring end, Includes: Ref. 16 - 18

1шт.

16

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

O-RING - sealing, 1-3/16 x 1-15/16 x 1/16" (30.16 x 33.34 x 1.59 mm)

1шт.

17

A44180

KIT

DIODE - negative (color coded with black mark) (Set of 4)

1шт.

18

A42266

KIT

PACKAGE - plugs (Set of 10)

1шт.

19

A41077

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING ASSEMBLY - 9/16 x 1-3/16 x 3/8" (14.29 x 33.34 x 9.53 mm)

1шт.

20

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, , Pulley and fan #6, 5/32" x 5/8", HT

1шт.

21

A41079

STATOR

STATOR ASSEMBLY

1шт.

22

A41065

KIT

PACKAGE - wire eyelets (Set of 6)

1шт.

A42771

STUD

PACKAGE - terminal studs, Includes: Ref. 23 - 30

1шт.

23

NSS

NOT SOLD SEPARAT

STUD - battery terminal

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - auxiliary terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, battery terminal

1шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - insulating, auxiliary terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulating, battery terminal

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - plain, battery terminal

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulating, auxiliary terminal

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain, auxiliary terminal

1шт.

31

A42773

HEAD (CYLINDER)

HEAT SINK - rectifier, Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

DIODE - positive (Color coded with red mark)

3шт.

33

A42261

DIODE

DIODE - output (Set of 2) (Color coded with black mark)

1шт.

34

A45467

BUSHING

BRUSH AND HOLDER ASSEMBLY - (Replaces A43952)

1шт.

35

A41073

COVER

INSULATION - brush holder cover

1шт.

36

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - brush holder, #10-24 x 3/8" round head

2шт.

37

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

38

129-667

NUT,#10-32, LH

NUT - #10 NF hex, jam

2шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

40

131-902

NUT,1/4"-28

NUT - 1/4-28 hex

2шт.

44

A44543

REGULATOR

REGULATOR ASSEMBLY - voltage

1шт.

45

NSS

NOT SOLD SEPARAT

SCREW - regulator mounting

2шт.

46

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

47

NSS

NOT SOLD SEPARAT

WASHER - plain flat

2шт.

48

A42777

PULLEY

PULLEY - drive

1шт.
