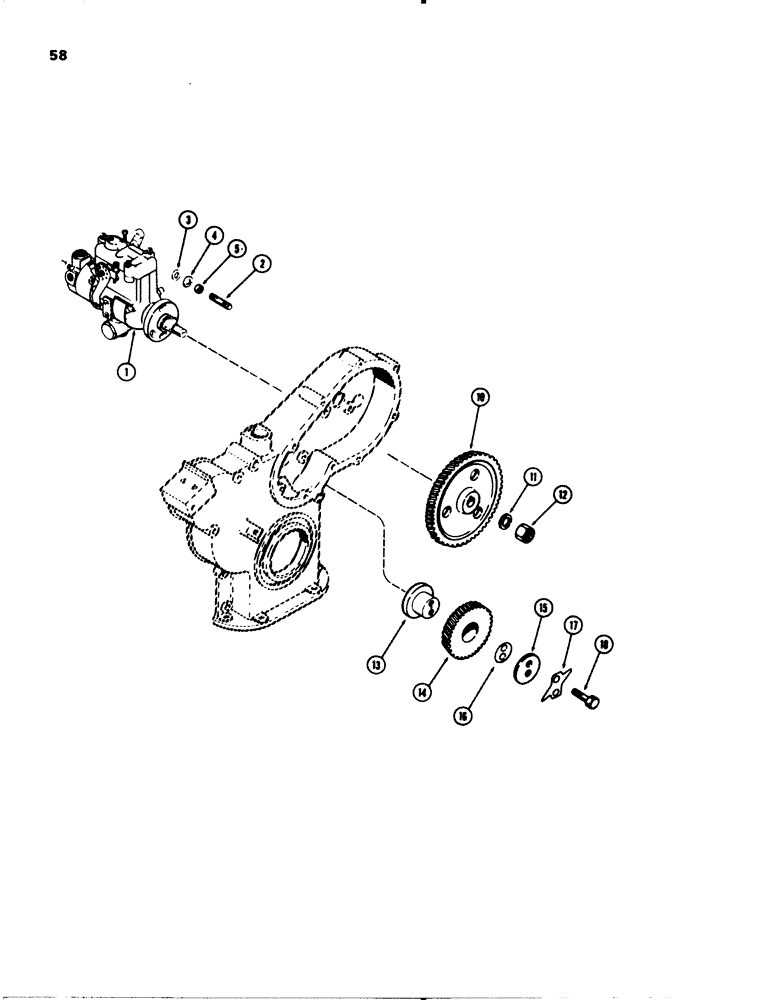

Запчасти Case 580C (058) - INJECTION PUMP DRIVE, 207 DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figure 56)

1шт.

2

G102128

BOLT

- pump mounting, 3/8" NC x 1-7/16"

3шт.

3

A30043

WASHER

- mounting studs, 3/8 x 7/8 x 1/8"

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

3шт.

10

G2076

GEAR

- drive, injection pump

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

12

25-159

JAM NUT,Jam, 9/16"-18, G5

- 9/16" NF hex, jam

1шт.

13

G11726

HUB

- idler gear

1шт.

14

G11852

GEAR

ASSEMBLY - idler, with bushing

1шт.

15

G11732

PLATE

- thrust, idler gear

1шт.

16

G11728

SHIM,.005" Thk

Idler gear (0.13 mm) .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

Idler gear (0.16 mm) .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

Idler gear (0.18 mm) .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

Idler gear (0.23 mm) .009" Thk

1шт.

17

G11746

PLATE

- lock, idler gear

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

2шт.
