Запчасти Case 580C (056) - INJECTION PUMPS (03) - FUEL SYSTEM

1

A151669

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection (0 degrees BTC) (Mechanical Shuttle) (Model no. DBGFCC431-65AJ) (1st used engine serial no. 2835094), Includes: Ref. 2 - 46

1шт.

1

A51631

PUMP

PUMP ASSEMBLY - fuel injection (8 degrees BTC) (Mechanical Shuttle) (Model no. DBGFCC431-49AJ) (Order A151669 and 321-4494), Includes: Ref. 2 - 46

1шт.

1

A151113

PUMP

PUMP ASSEMBLY - fuel injection (0 degrees BTC) (Power Shuttle) (Model no. DBGFCC431-64AJ) (1st used engine serial no. 2831781), Includes: Ref. 2 - 46

1шт.

1

AR151113

REMAN-INJECTION PUMP

Remanufactured INJECTION PUMP

1шт.

1

AC151113

CORE-INJECTION PUMP

Return Number

1шт.

1

A148069

FUEL INJECTION PUMP

PUMP ASSEMBLY - fuel injection (8 degrees BTC) (Power Shuttle) (Model no. DBGFCC431-58AJ) (Order A151113 and 321-4494), Includes: Ref. 2 - 46

1шт.

2

A44710

SHAFT

SHAFT ASSEMBLY - drive, with pin

1шт.

3

R14711

SEAL

SEAL - drive shaft

2шт.

4

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

5

25-119

NUT,9/16"-18, G5

NUT - 9/16" NF hex, jam

1шт.

6

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

O-RING - pump housing, 1-1/16 x 1-5/16 x 1/8" (27 x 33.34 x 3.18 mm)

1шт.

7

G48502

SPRING

SPRING - thrust, pump shaft, 1-3/16" free length (30.16 mm)

1шт.

8

A44653

PLUNGER

PLUNGER - thrust spring

1шт.

12

A43869

SLEEVE

CONNECTOR - outlet line

1шт.

13

51200280

SEAL

O-RING - connector, 9/16 x 11/16 x 1/16" (14.29 x 17.46 x 1.59 mm)

1шт.

14

A43870

FILTER, FUEL

FILTER - element

1шт.

15

A43871

SEAL

SEAL - element, 3/8 x 1/2 x 1/16" (9.53 x 12.7 x 1.59 mm)

1шт.

16

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

O-RING, -011, 70 Duro, .301" ID x .070" Thk - Connector

1шт.

17

A43867

SPRING

SPRING - regulator, 5/8" free length (15.88 mm)

1шт.

18

73621

PISTON

PISTON - regulator

1шт.

19

A43868

SEAL

SEAL - regulator piston (rubber)

1шт.

20

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG, , End plate Hex Soc, 1/4"-18 NPTF

1шт.

21

73452

COVER

COVER - timing window

1шт.

22

73453

GASKET

- timing window cover

1шт.

23

NLS

NO LONGER SERVICED

- timing window cover

2шт.

26

G45338

ARM

ARM - throttle

1шт.

27

G48505

SPRING

SPRING - throttle arm

1шт.

28

G49621

RETAINER

RETAINER - throttle arm spring

1шт.

29

165-124

HEX SOC SCREW,Prev Torque, #10 - 32 x 3/4"

SCREW - throttle arm

1шт.

30

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

SCREW - high idle adjusting

1шт.

31

51200273

SCREW

SCREW - low idle adjusting

1шт.

32

51200274

NUT

NUT - lock, idle adjusting screws

2шт.

35

G45337

ARM

ARM - shut-off

1шт.

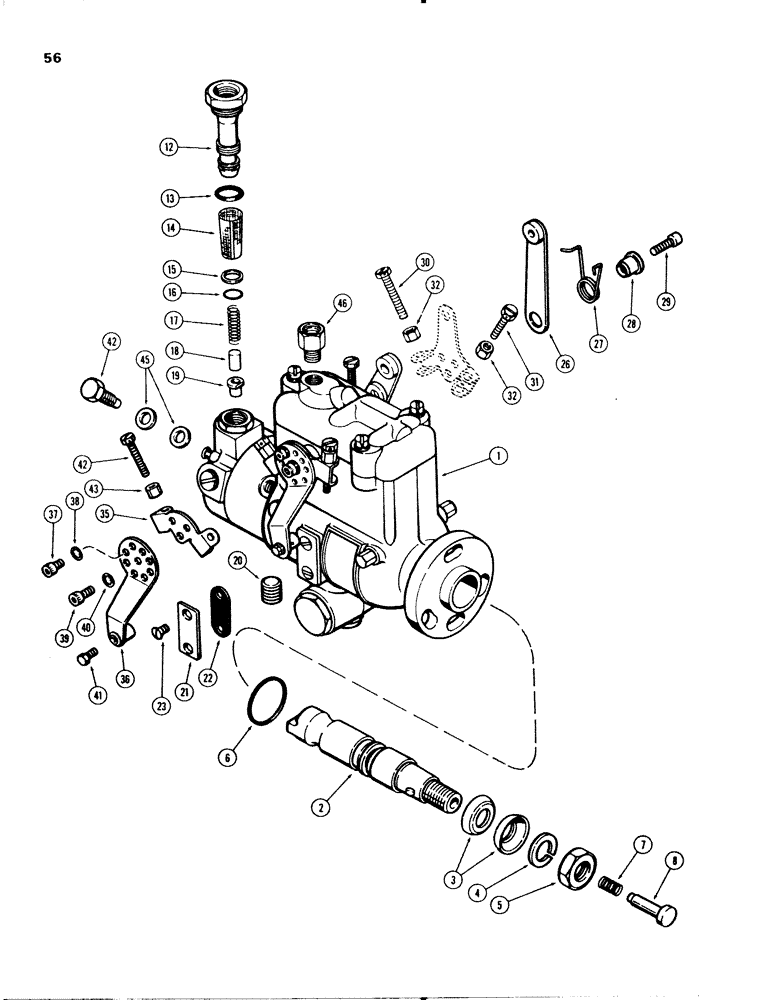

Ref. 35 and 36 are reversed (#35 should read NSS lever/ #36 should read G45337 arm). Illustration on Figure 56 shows them correctly.

1шт.

36

NSS

NOT SOLD SEPARAT

LEVER - shut-off arm

1шт.

37

165-1

SCREW,#8 x 1/4"

SCREW - position, shut-off arm

1шт.

38

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, , Position screw Int Tooth, #8

1шт.

39

165-30

HEX SOC SCREW,#10 - 32 x 3/8"

SCREW - retaining, shut-off arm

1шт.

40

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , Retaining screw Int Tooth, #10

1шт.

41

163-7

SCREW,Sl Hex, #8 - 32 x 3/8"

BOLT - lock, shut-off cable

1шт.

42

G49088.

SCREW - shut-off arm adjusting

2шт.

43

51200274

NUT

NUT - lock, adjusting screw

2шт.

44

73613

SCREW

SCREW - connector, injection tubes

4шт.

73613 connector screw - This part is incorrectly labeled as #44 in illustration. The screw which is connected to the 2 washers (#45) in illustration should be labeled as #44 (not as #42).

1шт.

45

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screws

8шт.

46

A47066

COUPLING

CONNECTOR - return line

1шт.

contains a glass check ball.

1шт.
