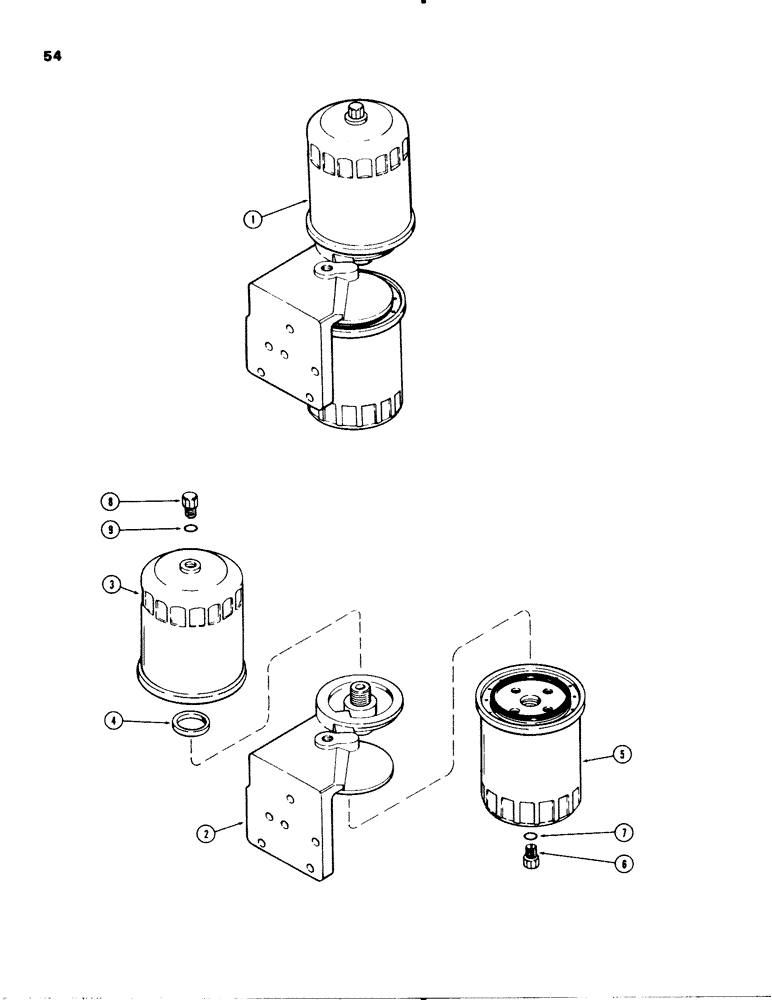

Запчасти Case 580C (054) - FUEL FILTER (03) - FUEL SYSTEM

1

A154934

FILTER

ASSEMBLY - fuel (Replaces A51739), Incl 2 - 9

1шт.

2

A154909

HEAD

Filter (Replaces A51738)

1шт.

3

A151281

FUEL FILTER

Fuel Filter, Incl 3 - 5

1шт.

3

A39867

FUEL FILTER

Secondary (15/16"-16 threads), Incl 4

1шт.

4

A42315

GASKET

Filter to head, 15/16 ID x 1-1/4 OD x 1/4" Thk (23.81mm ID x 31.75mm OD x 6.35mm Thk)

1шт.

5

A39868

FUEL FILTER

Primary (13/16"-18 threads), Incl 4

1шт.

6

G49080

PLUG

Drain, Primary filter, 3/8" NF, 12 point head, nylon

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

Drain Plug

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Drain, Secondary Filter, Incl 9

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

Drain Plug

1шт.
