Запчасти Case 580C (052) - FUEL INJECTION AND FILTER SYSTEM, 207 DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

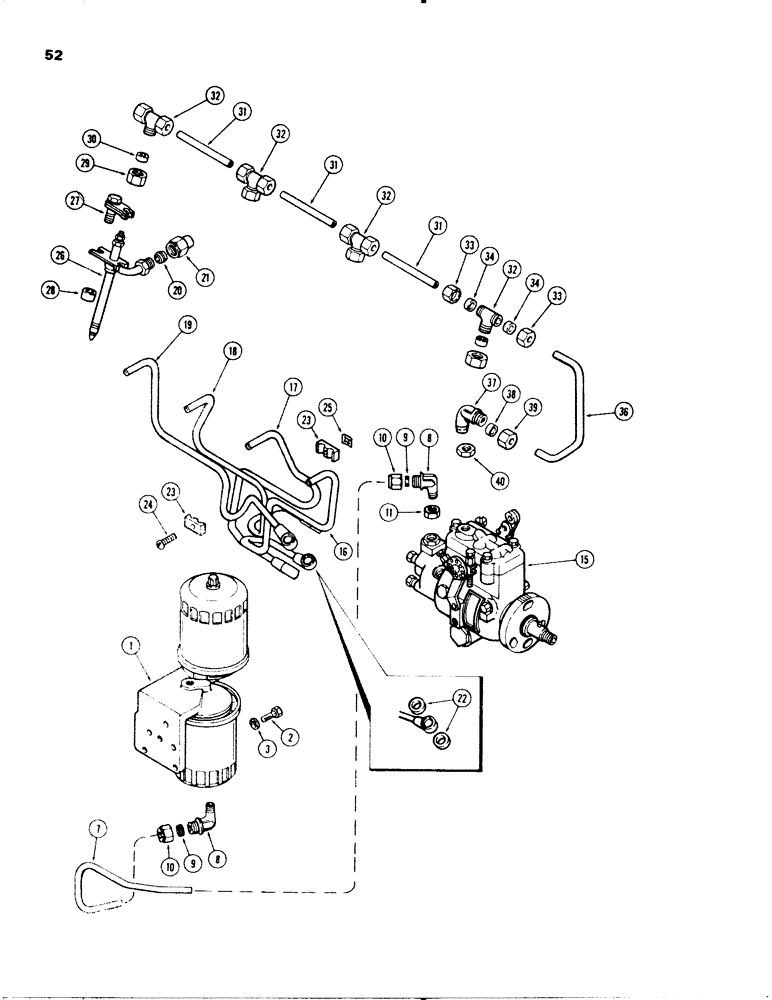

FILTER ASSEMBLY - fuel (See Figure 54)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Filter mounting Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

7

A51784

TUBE

LINE -, Serial Range: filter-pump

1шт.

8

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY, Includes: Ref. 9 and 10

2шт.

9

222-104

SLEEVE,3/8" Tube

- for (9.53 mm) 3/8" Tube

1шт.

10

222-114

NUT,5/8"-24

NUT - for 3/8" tube (9.53 mm)

1шт.

11

A38161

LOCK NUT

- sealing, 1/4" PT (In injection pump)

1шт.

15

REF

INSTRUCTION

PUMP ASSEMBLY - injection (See Figure 56)

1шт.

16

A41391

TUBE

ASSEMBLY - injection pump to No. 1 cylinder (Includes: Ref. 20, 21 and 22)

1шт.

17

A41392

TUBE

ASSEMBLY - injection pump to No. 2 cylinder (Includes: Ref. 20, 21 and 22)

1шт.

18

A41393

TUBE

ASSEMBLY - injection pump to No. 3 cylinder (Includes: Ref. 20, 21 and 22)

1шт.

19

A41394

TUBE

ASSEMBLY - injection pump to No. 4 cylinder (Includes 20, 21 and 22)

1шт.

A41394 not illustrated properly the part pictured is A35061 see 310G crawler pg 40 for illustration of all tubes if customer requires tube which looks like picture

1шт.

20

A37850

PIPE FITTING

SLEEVE - injection tube

1шт.

21

A37851

NUT

- injection tube

1шт.

22

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

2шт.

23

A58709

BRACKET

CLAMP - fuel injection lines

4шт.

24

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, #10 x 1" round head

2шт.

25

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 Tinnerman

2шт.

26

REF

INSTRUCTION

NOZZLE ASSEMBLY - injector (See Figure 60)

4шт.

27

A37837

CLAMP

ASSEMBLY - injector nozzle

4шт.

28

A37839

SPACER

- nozzle clamp

4шт.

29

A58961

NUT

- injector nozzle

4шт.

30

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- injector nozzle

4шт.

31

A38644

TUBE

- fuel leak-off

3шт.

32

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CONNECTOR - nozzle and leak-off linkes junction (T-Type)

4шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6.35 mm)

8шт.

34

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

8шт.

36

A142906

TUBE

- fuel leak-off (at pump)

1шт.

37

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - fuel leak-off line (at pump), Includes: Ref. 38 and 39

1шт.

38

222-102

SLEEVE,1/4" Tube

(6.35 mm) 1/4" Tube

1шт.

39

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube (6.35 mm)

1шт.

40

A38160

LOCK NUT

- sealing (1/8" PT) (at pump)

1шт.
