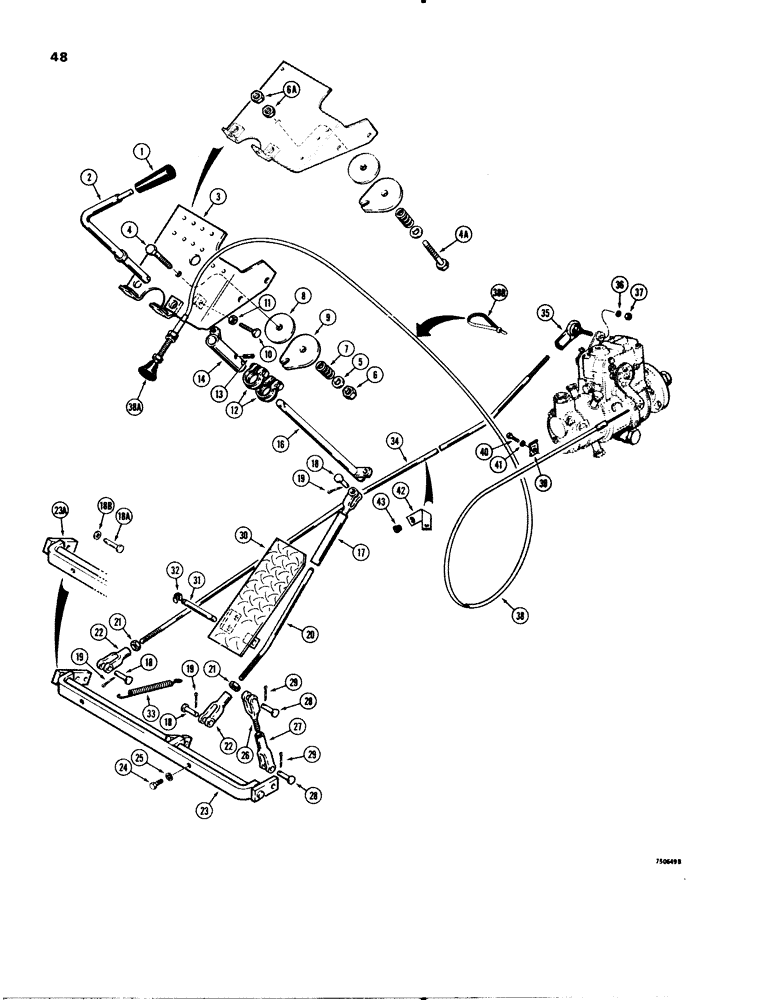

Запчасти Case 580C (048) - THROTTLE AND FUEL SHUTOFF CABLE (03) - FUEL SYSTEM

1

A37247

KNOB

- hand throttle

1шт.

D76429

LEVER

- hand throttle

1шт.

3

REF

INSTRUCTION

BRACKET - mounting, see Figure 149 for correct bracket

1шт.

4

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4", if used

1шт.

4a

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2" - 13 NC x 2-1/2", if used

1шт.

5

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

6

131-654

LOCK NUT,1/2"-13, GB

NUT - hex self lock, 1/2" - 13 NC, if used

1шт.

6a

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

2шт.

7

A34113

SPRING

- detent

1шт.

8

R15071

DISC

- friction

1шт.

9

D66096

LARGE PLATE

PLATE - throttle linkage

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

11

25-104

NUT,1/4"-20, G5

1шт.

12

D71880

CLAMP,22.23mm

- throttle linkage

2шт.

13

138-150

LOCK PIN,5/16" x 13/16", Slotted

PIN, 5/16" x 13/16", Slotted

2шт.

14

D71815

CLAMP

- throttle linkage

1шт.

D71815 clamp - This assy. includes a 1/4 x 5/8 roll-pin (part nbr 138-128) in arm.

1шт.

15

RESERVED

1шт.

16

D71820

SHAFT

- throttle

1шт.

17

D66655

ROD

SLEEVE - throttle

1шт.

18

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2-3шт.

18a

141-60

CLEVIS PIN,5/16" x 1 1/8"

PIN - yoke, used on models with spring attaching to clevis pin rather than to lug to shaft

1шт.

18b

195-21

WASHER,5/16"

- flat, , Used with Ref. 18A 5/16"

1шт.

19

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

3шт.

20

D68266

ROD

- throttle

1шт.

21

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

2шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod

2шт.

23

NSS

NOT SOLD SEPARAT

SHAFT - throttle, with extra hole in LH lug for spring, order Refs. 23A, 18A, and 18B

1шт.

23a

D75201

SHAFT

- throttle, used on models with spring attaching to clevis pin rather than to lug on shaft

1шт.

24

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.

26

D68186

YOKE

- rod

1шт.

27

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod

1шт.

28

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

29

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

30

D66581

PEDAL - foot throttle

1шт.

31

D66055

PIN,9.53mm OD x 79.25mm L

- pivot

1шт.

32

D95093

RING

- retaining

2шт.

33

D73386

SPRING

- throttle return

1шт.

34

D75462

ROD

- throttle control

1шт.

35

D63154

JOINT,1/4" - 28 x 1-1/3"

- ball, 1/4"

1шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

37

25-114

NUT,1/4"-28, G5

- hex, lock, 1/4" - 20 NC

1шт.

38

D67656

CABLE

- fuel shutoff, Includes: Ref. 38A

1шт.

38a

L33717

KNOB

- part of D67656 cable

1шт.

38b

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie, fuel shutoff cable

1шт.

39

A26673

CLIP

- cable retaining

1шт.

40

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

41

D75410

ROD

WASHER - lock, 1/4"

1шт.

42

D75410

ROD

SUPPORT - throttle rod, no longer available, used on some models with throttle control rod requiring extra support, order D75462 throttle control rod (item 34) which is rigid and no longer requires this support

1шт.

43

353-459

BUSHING

- snap type, if used

1шт.
