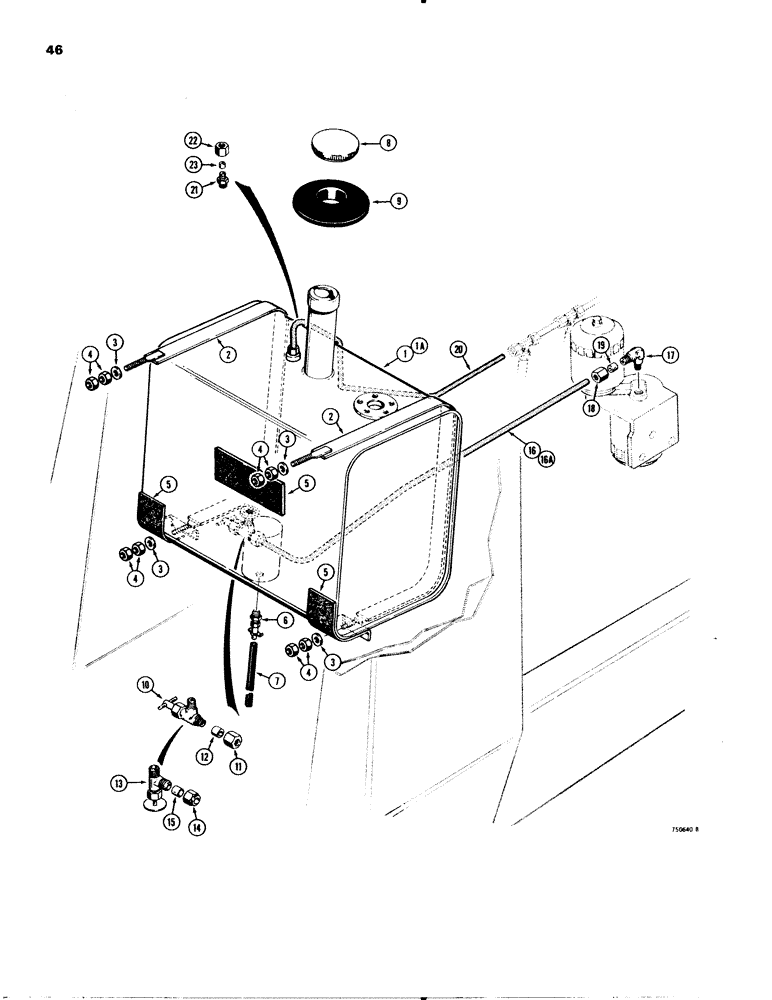

Запчасти Case 580C (046) - FUEL TANK AND FUEL LINES (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
D64997
TANK
- fuel, used before tractor, see order below, Serial Range: -8953324
1шт.
Order D75422 tank, D74027 valve and D76776 tube for service of D64997 tank.
1шт.
1a
D75422
FUEL TANK
TANK - fuel, used on tractor, Start Serial: 8953324
1шт.
2
D65000
STRAP
- fuel tank mounting
2шт.
3
195-25
WASHER,3/8"
- flat, 3/8"
4шт.
4
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
8шт.
5
D64999
FOAM
CUSHION - rubber mounting
3шт.
6
217-81
VALVE
FITTING - drain cock, without hose adapter, if used
1шт.
6
217-107
VALVE
FITTING - drain cock, with hose adapter, if used
1шт.
7
D34989
FUEL HOSE,0.31" ID x 9.00", SAE 30R1
Drain, Fuel Tank, If Used 0.31" ID x 9.00", SAE 30R1
1шт.
8
A51390
CAP
- fuel tank
1шт.
9
R14780
GROMMET
- fuel tank neck
1шт.
A27955
VALVE
- outlet, used before tractor sn 8953324, Includes: Ref. 10 - 12
1шт.
10
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
11
222-114
NUT,5/8"-24
NUT - flex tube
1шт.
12
222-104
SLEEVE,3/8" Tube
- flex tube
1шт.
D74027
VALVE
- outlet, used on tractor, Includes: Ref. 13 - 15, Start Serial: 8953324
1шт.
13
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
14
222-664
TUBE NUT,9/16"-24, 45 Degree Fl, Comp
NUT - compression
1шт.
15
222-654
FERRULE,3/8" Tube, Comp
- compression
1шт.
16
D65020
TUBE
- outlet, 3/8", used before tractor, Serial Range: -8953324
1шт.
16a
D76776
FUEL TUBE,0.375" OD
TUBE - outlet, 3/8", used on tractor, Start Serial: 8953324
1шт.
ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF
FITTING - 90 degree, flex tube, Includes: Ref. 17 - 19
1шт.
17
NSS
NOT SOLD SEPARAT
BODY - fitting
1шт.
18
222-114
NUT,5/8"-24
NUT - flex tube
1шт.
19
222-104
SLEEVE,3/8" Tube
- flex tube
1шт.
20
D68256
TUBE
- return, 1/4"
1шт.
222-23
FITTING,1/2"-24 x 1/4" NPTF w/Nut
- straight, flex tube, Includes: Ref. 21 - 23
1шт.
21
NSS
NOT SOLD SEPARAT
BODY - fitting
1шт.
22
87017024
TUBE NUT,1/2"-24
NUT - flex tube
1шт.
23
222-102
SLEEVE,1/4" Tube
1шт.
Выбрано товаров: 31
