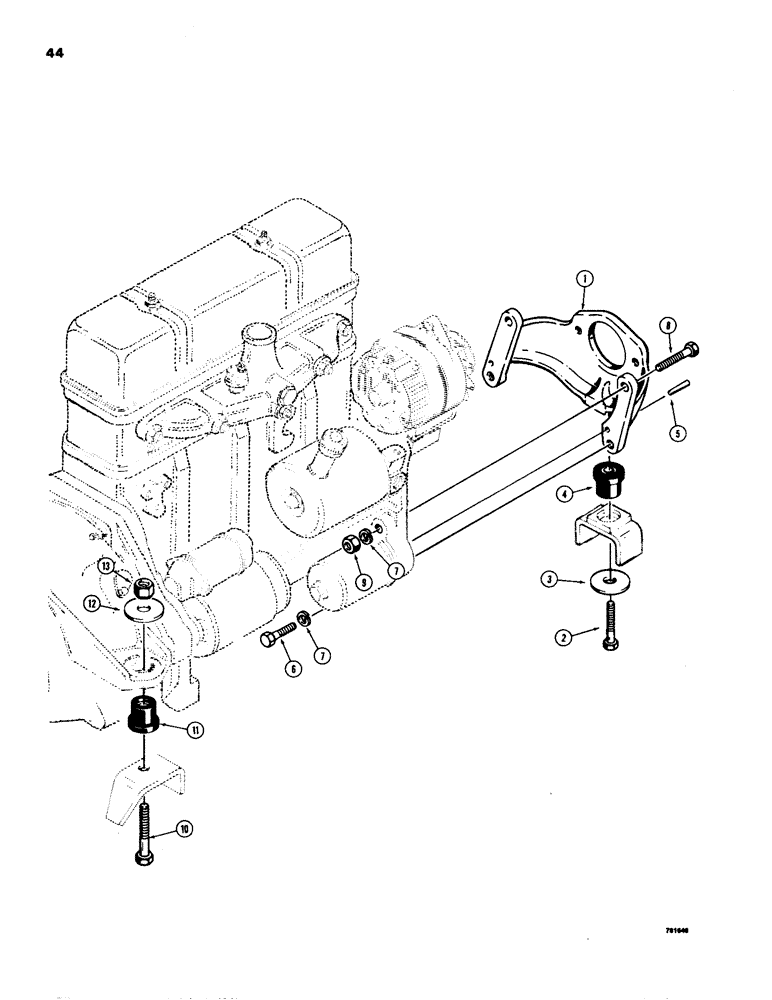

Запчасти Case 580C (044) - ENGINE MOUNTING (02) - ENGINE

1

D64222

SUPPORT

- engine front

1шт.

2

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8" - 11 nc x 2-3/4"

1шт.

3

D35009

WASHER

- flat, special

1шт.

4

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

CUSHION - rubber mount

1шт.

5

139-64

PIN,1/8" x 1 1/2", Tapered

- dowel tapered

2шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8" - 11 NC x 2-3/4"

2шт.

9

25-1010

NUT,5/8"-11, G5

2шт.

10

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

2шт.

11

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

CUSHION - rubber mount

2шт.

12

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special

2шт.

13

25-1010

NUT,5/8"-11, G5

2шт.
