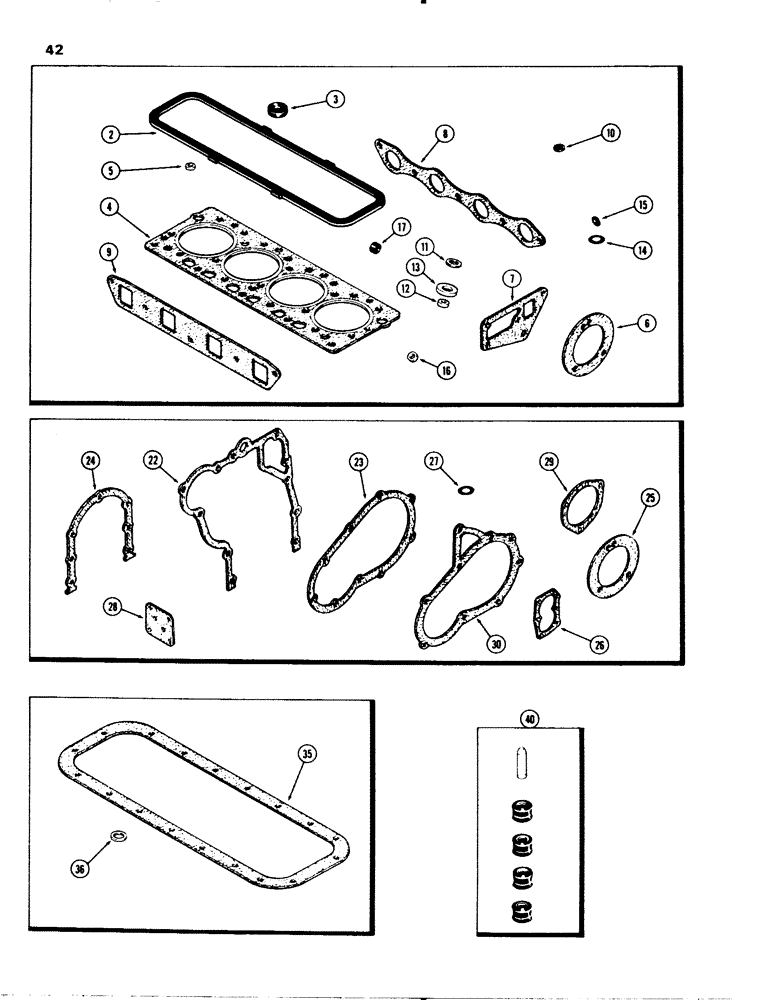

Запчасти Case 580C (042) - ENGINE GASKET KITS, 207 DIESEL ENGINE / VALVE GRIND KIT (02) - ENGINE

A143000

GASKET

T - valve grind (Replaces A43193), Includes: Ref. 2 - 17

1шт.

FOR COMPLETE ENGINE OVERHAUL ORDER 1-A143000, 1-A43198 AND 1-A44758 GASKET KITS.

1шт.

2

A43030

GASKET,3.05mm Thk

valve cover

1шт.

3

A142098

GROMMET

valve cover studs (Rubber)

2шт.

4

A148745

CYLINDER HEAD GASKET

cylinder head

1шт.

5

G46851

SEAL

valve stem (Rubber) (See Ref. 40)

8шт.

6

A38083

GASKET

water, Serial Range: pump-body

1шт.

7

A38084

GASKET,1.27mm Thk

water pump body to cylinder head

1шт.

8

G46872

MANIFOLD GASKET

exhaust manifold

1шт.

9

G46871

GASKET

intake manifold

1шт.

10

A50694

DISC

WASHER - sealing, intake manifold studs (See Figure 18 for application)

3шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - fuel injection, Serial Range: lines-pump

8шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

carbon stop, injector nozzles

4шт.

13

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

seat, injector nozzles

4шт.

14

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

water pump body, 3/4 x 1 x 1/8" (19.05 x 25.4 x 3.18 mm)

1шт.

15

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

manifold studs, 3/8 x 9/16 x 3/32" (9.53 x 14.29 x 2.38 mm) (See Figure 18 for application)

3шт.

16

G49068

GASKET

injector nozzle seat (Not used this application)

4шт.

17

222-101

SLEEVE,3/16" Tube

for (Not used this application) 3/16" Tube

4шт.

17

222-103

SLEEVE,5/16" Tube

(Not used this application) 5/16" Tube

4шт.

A43198

GASKET

KIT - cylinder block, Includes: Ref. 22 - 30

1шт.

FOR COMPLETE ENGINE OVERHAUL ORDER 1-A143000, 1-A43198 AND 1-A44758 GASKET KITS.

1шт.

22

A51529

GASKET

timing gear cover, cyl block kit

1шт.

23

A39925

GASKET

injection pump drive cover, cyl block kit

1шт.

24

A39188

GASKET

rear oil seal retainer, cyl block kit

1шт.

25

A38083

GASKET

water pump, cyl block kit

1шт.

26

G46852

GASKET

oil pump cover, cyl block kit

1шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

water pump body to cover, 3/4 x 1 x 1/8" (19.05 x 25.4 x 3.18 mm), cyl block kit

1шт.

28

G46854

GASKET

(Not used this application), cyl block kit

1шт.

29

A30042

GASKET

cyl block kit - (Not used this application)

1шт.

30

G46859

GASKET

(Not used this application), cyl block kit

1шт.

A44758

GASKET

oil pan, Includes: Ref. 35 and 36, cyl block kit

1шт.

FOR COMPLETE ENGINE OVERHAUL ORDER 1-A143000, 1-A43198 AND 1-A44758 GASKET KITS.

1шт.

35

NSS

NOT SOLD SEPARAT

GASKET - oil pan

1шт.

36

A58608

GASKET

drain plug, 3/4 x 1 x 1/16" Nylon (19.05 x 25.4 x 1.59 mm), oil pan

1шт.

36

A34827

GASKET

drain plug, 7/8 x 1-1/8 x 3/64" (Copper) (22.23 x 28.58 x 1.19 mm), oil pan

1шт.

40

M20611

SEAL KIT

seaL - valve (Includes 4 seals and installation sleeve), oil pan

2шт.
