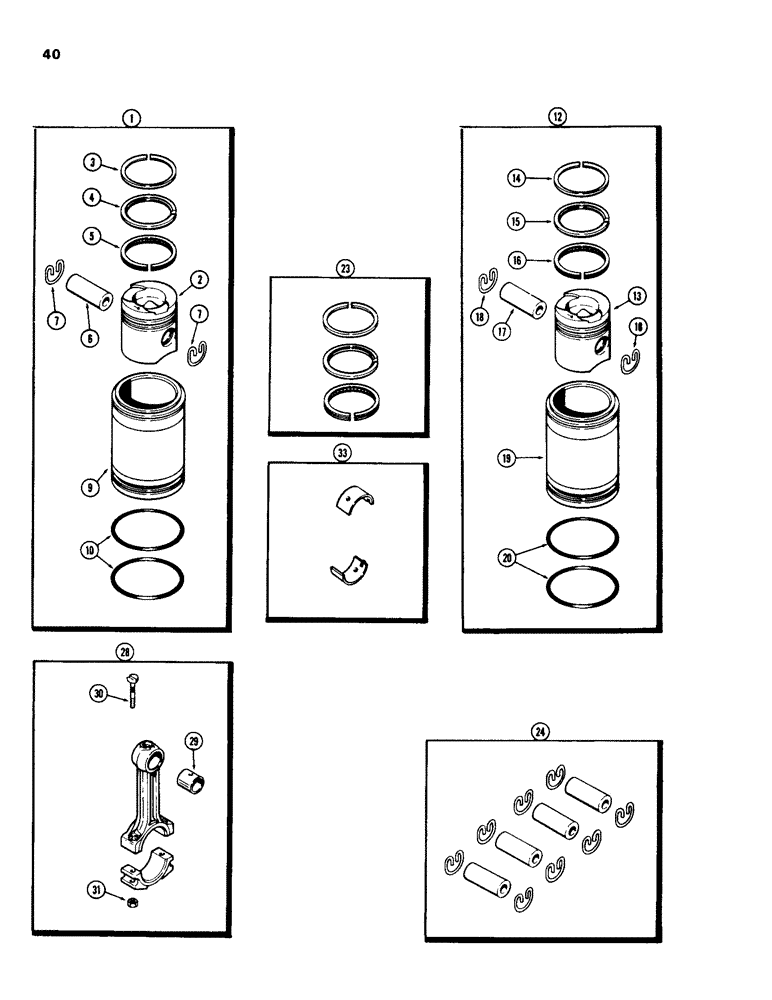

Запчасти Case 580C (040) - PISTONS, 207 DIESEL ENGINE (02) - ENGINE

1

A46382

PACKAGE, REPAIR

PISTON ASSEMBLY (Starting with engine serial no. 2869290), Includes: Ref. 2 - 10

4шт.

2

A151244

PISTON

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, first groove (Order Ref. 23)

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second grove (Order Ref. 23)

1шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (Order Ref. 23)

1шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 24)

1шт.

7

G46702

RING, LOCKING

retaining, piston pin

2шт.

9

A136474

SLEEVE CYLINDER

piston

1шт.

10

A51916

O-RING,4.115" ID x 4.281" OD

4-1/8 x 4-1/4 x 1/16" (104.78 x 107.95 x 1.59 mm)

2шт.

12

A151991

PISTON

ASSEMBLY (Before engine serial no. 2869290), Includes: Ref. 13 - 20

4шт.

13

A51911

PISTON

1шт.

14

NSS

NOT SOLD SEPARAT

RING - compression, first groove (Order Ref. 23)

1шт.

15

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 23)

1шт.

16

NSS

NOT SOLD SEPARAT

RING - oil control (Order Ref. 23)

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 24)

1шт.

18

G46702

RING, LOCKING

retaining, piston pin

2шт.

19

A136474

SLEEVE CYLINDER

piston

1шт.

20

A51916

O-RING,4.115" ID x 4.281" OD

4-1/8 x 4-1/4 x 1/16" (104.78 x 107.95 x 1.59 mm)

2шт.

23

A151892

RING

SET - piston (Set of 1)

4шт.

24

A35771

KIT

SET - piston (Set of 4 pins and 8-G46702 rings)

1шт.

28

A51913

RING

ROD ASSEMBLY - connecting, Includes: Ref. 29 - 32

4шт.

29

A136712

BUSHING

piston pin, connecting rods

1шт.

This part subs to A44083 bushing kit (pkg qty - 4 pcs).

1шт.

30

A51914

BOLT

cap, connecting rods

2шт.

31

A51904

NUT

cap bolt, connecting rods

2шт.

33

A50975

BEARING LINER,58.67mm ID x 62.48mm OD x 27.69mm W

connecting rod (Set of 2) standard

4шт.

33

A50976

BEARING

connecting rod (Set of 2) .002" (0.0508 mm) undersize

4шт.

33

A50977

BEARING,58.42mm ID x 62.48mm OD x 27.69mm W

connecting rod (Set of 2) .010" (0.254 mm) undersize

4шт.

33

A50978

BEARING,58.17mm ID x 62.48mm OD x 27.69mm W

connecting rod (Set of 2) .020" (0.508 mm) undersize

4шт.

33

A50479

COLLAR

LINERS - bearing, connecting rod (Set of 2) (0.762 mm) undersize

4шт.

Should read A50979 (and is .030 undersize)

1шт.
