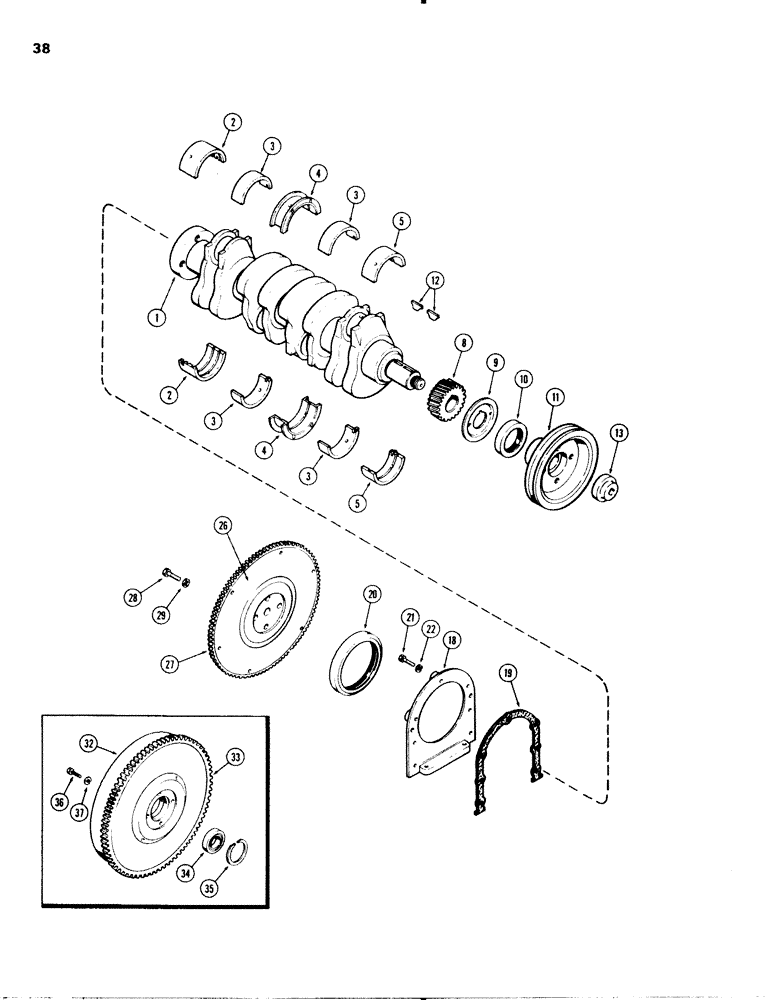

Запчасти Case 580C (038) - CRANKSHAFT, 207 DIESEL ENGINE (02) - ENGINE

1

A144011

CRANKSHAFT

(Replaces A51917)

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

LINER KIT - main bearing, rear, standard (Set of 2)

1шт.

2

A36496

LINING

KIT - main bearing, rear, -.002" (-0.06 mm) (Set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

LINER KIT - main bearing, rear, -.010" (-0.26 mm) (Set of 2)

1шт.

2

A36498

KIT

LINER - main bearing, rear, -020" (-0.50 mm) (Set of 2)

1шт.

2

A36499

BEARING LINER

KIT - main bearing, rear, -.030" (-0.76 mm) (Set of 2)

1шт.

3

A36485

LINING

KIT - main bearing, intermediate, standard (Set of 2)

2шт.

3

A36486

LINING

KIT - main bearing, intermediate, -.002" (-0.06 mm) (Set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

KIT - main bearing, intermediate, -.010" (-0.26 mm) (Set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

LINER KIT - main bearing, intermediate, -.020" (-0.50 mm) (Set of 2)

2шт.

3

36489

LINER KIT - main bearing, intermediate, -.030" (-0.76 mm) (Set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

KIT - main bearing, center, standard (Set of 2)

1шт.

4

A36491

LINING

KIT - main bearing, center, -.002" (-0.06 mm) (Set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

LINER KIT - main bearing, center, -.010" (-0.26 mm) (Set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

KIT - main bearing, center, -.020" (-0.50 mm) (Set of 2)

1шт.

4

A36494

LINING

KIT - main bearing, center, -.030" (-0.76 mm) (Set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

KIT - main bearing, front, standard (Set of 2)

1шт.

5

A36481

LINING

KIT - main bearing, front, -.002" (-0.06 mm) (Set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

LINER KIT - main bearing, front, -.010" (-0.26 mm) (Set of 2)

1шт.

5

A36483

LINING

KIT - main bearing, front, -.020" (-0.50 mm) (Set of 2)

1шт.

5

A36484

LINING

KIT - main bearing, front, -.030" (-0.76 mm) (Set of 2)

1шт.

8

A39288

GEAR

crankshaft

1шт.

9

A29259

SLINGER

oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, front, 2 x 3 x 1/2" (50.8 x 76.2 x 12.7 mm)

1шт.

A39110 front oil seal - The wear ring repair kit is A155893.

1шт.

11

A138244

PULLEY

- fan drive

1шт.

A138244 fan drive pulley - This bolts up to A51885 on Figure 244.

1шт.

12

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

pulley and gear (Hi-Pro type)

2шт.

13

A35673

NUT

pulley retaining

1шт.

18

A38390

RETAINER

rear oil seal

1шт.

19

A39188

GASKET

retainer

1шт.

20

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear, 4 x 5 x 1/2" (101.6 x 127 x 12.7 mm)

1шт.

A51339 rear oil seal - The wear ring repair kit is A49851.

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- retainer, 1/4 x 3/4" NC hex

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- retainer, 1/4 x 1" NC hex

3шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

26

A38915

FLYWHEEL

ASSEMBLY, power shuttle, Includes: Ref. 27

1шт.

27

G11710

GEAR

ring, starter, flywheel pwr shuttle

1шт.

28

121-300

LOCK BOLT,Lock Place, Hex, 7/16" - 20 x 1 1/8", Gr 8

crankshaft, 7/16 x 1-1/8" NF hex, flywheel pwr shuttle

4шт.

29

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

bolt, 7/16 x 3/4 x 1/16" (11.11 x 19.05 x 1.59 mm), flywheel pwr shuttle

4шт.

32

A135973

FLYWHEEL

ASSEMBLY, mechanical shuttle, Includes: Ref. 33

1шт.

33

G11710

GEAR

ring, starter, mechanical shuttle

1шт.

34

A51983

BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"

main shaft, 1-3/16 x 2-3/16 x 1/2" (30.16 x 55.56 x 12.7 mm), mechanical shuttle

1шт.

35

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , brg, mechanical shuttle 2.125", Int, #212

1шт.

36

A37216

BOLT

flywheel to crankshaft, 7/16 x 1-1/2" NF hex, mechanical shuttle

4шт.

37

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

flywheel bolt, 7/16 x 3/4 x 1/16" (11.11 x 19.05 x 1.59 mm), mechanical shuttle

4шт.
