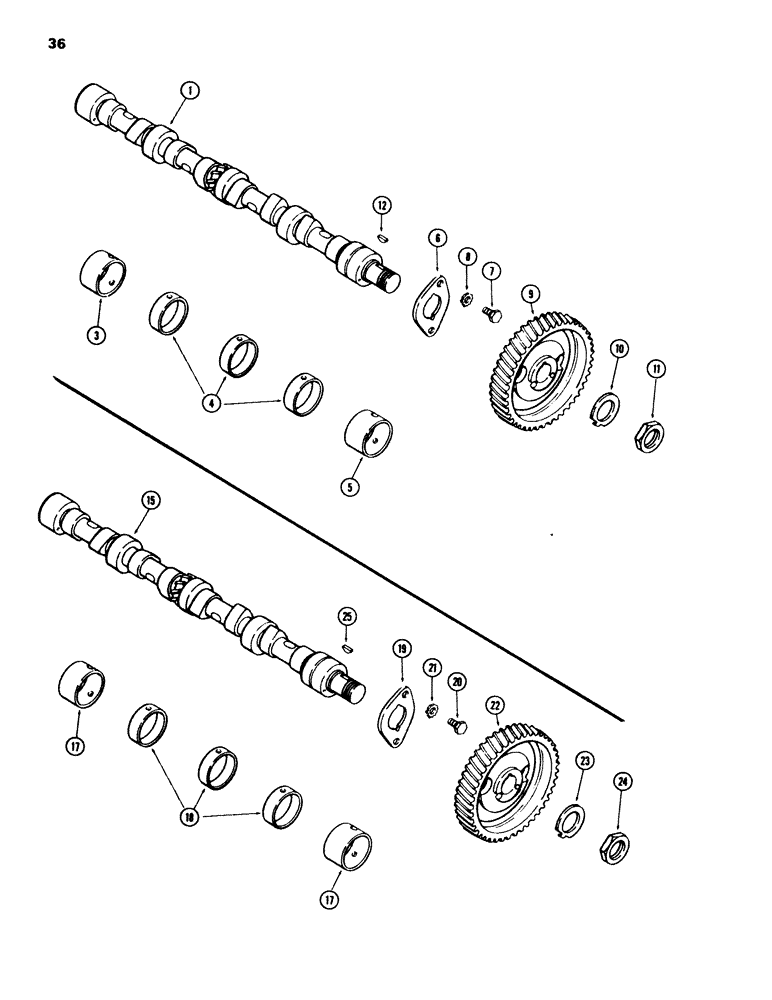

Запчасти Case 580C (036) - CAMSHAFTS, 207 DSL ENG SN 2850355 & AFT (02) - ENGINE

1

A39013

CAM

SHAFT, Start Serial: 2850355

1шт.

A151075

BUSHING

KIT - camshaft, Includes: Ref. 3 - 5, Start Serial: 2850355

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear, 1" wide (25.4 mm) with two oil holes, Start Serial: 2850355

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - intermediate, 1/2" wide (12.7 mm) with one oil hole, Start Serial: 2850355

3шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front, 1-1/4" wide (31.75 mm) with two oil holes, Start Serial: 2850355

1шт.

6

A29290

PLATE

thrust, camshaft, Start Serial: 2850355

1шт.

7

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate, Start Serial: 2850355

2шт.

8

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16", Start Serial: 2850355

2шт.

9

A38931

GEAR

camshaft, Start Serial: 2850355

1шт.

10

A29438

LOCK NUT

lock, camshaft nut (tab type), Start Serial: 2850355

1шт.

11

A30063

NUT

camshaft gear retaining, Start Serial: 2850355

1шт.

12

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8", Start Serial: 2850355

1шт.

15

A39013

CAM

SHAFT, Serial Range: -2850355

1шт.

A42746

CAM

BUSHING KIT - camshaft, Includes: Ref. 17 and 18, Serial Range: -2850355

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - front and rear, 1-1/4" wide (31.75 mm) with two oil holes, Serial Range: -2850355

2шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - center, 1/2" wide (12.7 mm) with one oil hole, Serial Range: -2850355

3шт.

19

A29290

PLATE

thrust, camshaft, Serial Range: -2850355

1шт.

20

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT - thrust plate, Serial Range: -2850355

2шт.

21

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16", Serial Range: -2850355

2шт.

22

A38931

GEAR

camshaft, Serial Range: -2850355

1шт.

23

A29438

LOCK NUT

lock, camshaft nut (tab type), Serial Range: -2850355

1шт.

24

A30063

NUT

camshaft gear retaining, Serial Range: -2850355

1шт.

25

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft gear #6, 5/32" x 5/8", Serial Range: -2850355

1шт.
