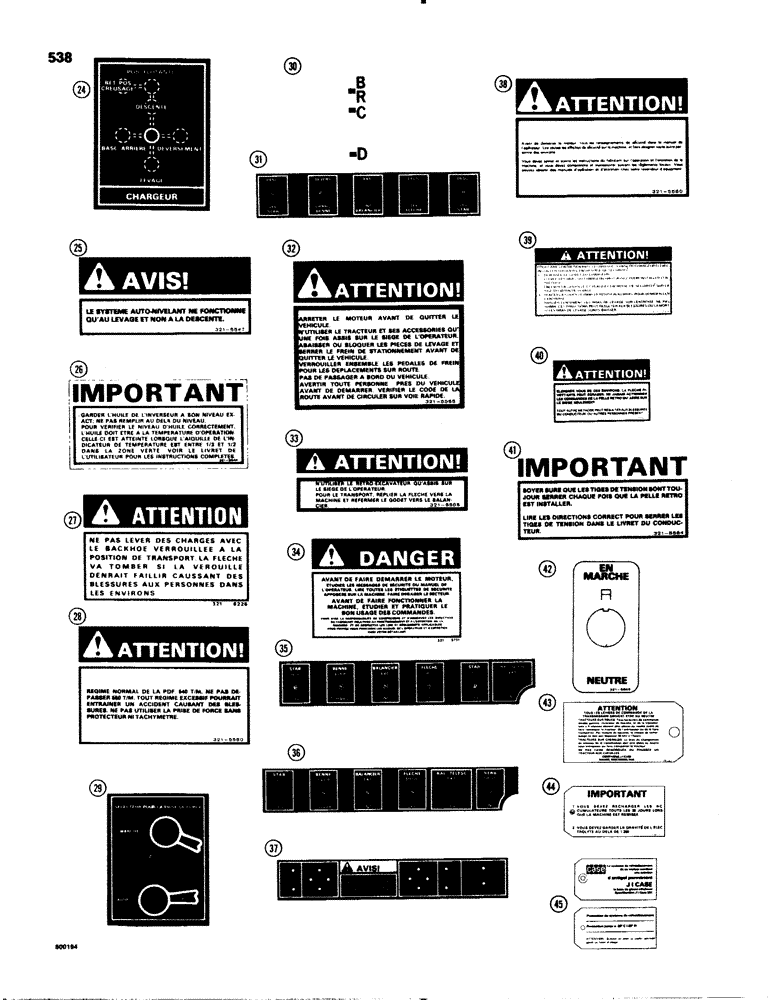

Запчасти Case 580C (538) - FRENCH LANGUAGE DECALS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

KIT - decal, French language for Quebec, continued from Figure 536, Includes: Ref. 24 - 42 and Ref. 1 - 23 on Figure 536

1шт.

24

321-5546

DECAL - loader control

1шт.

25

321-5547

DECAL - self-leveling

1шт.

26

321-5548

DECAL - oil check

1шт.

27

321-6226

DECAL - craning

1шт.

28

321-5550

DECAL - PTO speed

1шт.

29

321-5551

DECAL - PTO select control

1шт.

30

321-5553

DECAL - clam bucket function

1шт.

31

31-5554

DECAL - backhoe controls

1шт.

32

321-5555

DECAL - instructions

1шт.

33

321-5556

DECAL - operate backhoe from seat

1шт.

34

321-5731

DECAL

- before starting engine

1шт.

35

321-5559

DECAL - backhoe controls, extendahoe, with extendahoe lever on right, see Refs. 36 and 37

1шт.

36

321-6219

DECAL - backhoe controls, models with hand swing, see Refs. 35 and 36

1шт.

37

321-5563

DECAL - backhoe controls, models with hand swing, see Refs. 35 and 36

1шт.

38

321-5560

DECAL - jump start

1шт.

39

321-5561

DECAL - safety strut

1шт.

40

321-5562

DECAL - keep clear

1шт.

41

321-5564

DECAL - backhoe tension rods

1шт.

42

321-5565

PLATE - clutch cutout

1шт.

43

968525

TAG - shift lever

1шт.

44

9-68531

TAG - battery

1шт.

45

9-68535

TAG - anti-freeze

1шт.
