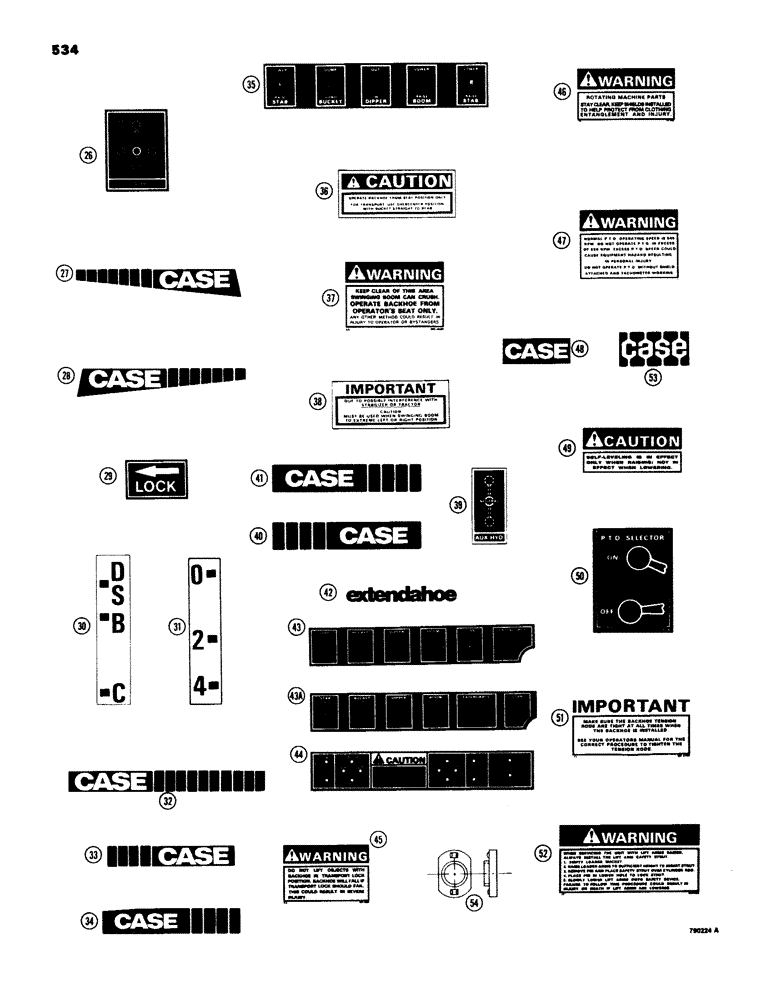

Запчасти Case 580C (534) - DECALS, SERIAL NUMBER 8982785 AND AFTER (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

KIT - decal, 580C, sn 8982785 and after, continued from Figure 532, Includes: Ref. 1 - 25 on Figure 532 and Ref. 26 - 52

1шт.

No brown decals are available.

1шт.

26

321-3718

DECAL

- loader control

1шт.

27

321-5064

DECAL

- CASE, with tread, RH

1шт.

27a

321-5589

DECAL - CASE, with tread, RH, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

1шт.

28

321-5065

DECAL

- CASE, with tread, LH

1шт.

28a

321-5590

DECAL - CASE, with tread, LH, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

1шт.

29

321-3348

DECAL

- boom lock

1шт.

30

321-1707

DECAL

- bucket position, 4-in-1

1шт.

31

321-1708

DECAL

- clam opening, 4-in-1

1шт.

32

321-5066

DECAL

- CASE, with tread, used on backhoe models

1шт.

33

321-5129

DECAL

- CASE, with tread, RH, standard backhoe dipper, see Ref. 40

1шт.

34

321-5130

DECAL

- CASE, with tread, LH, standard backhoe dipper, see Ref. 41

1шт.

35

321-2192

DECAL

- backhoe lever operation, models with foot swing

1шт.

36

321-3056

DECAL

- caution, transport

1шт.

37

321-4481

DECAL

- warning, swing

2шт.

38

321-3058

DECAL

- important, swing

1шт.

39

321-3581

DECAL

- auxiliary loader control

1шт.

40

321-5129

DECAL

- CASE, with tread, LH, extendable dipper

1шт.

40a

321-5683

DECAL - CASE, with tread, LH, all backhoe dippers, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

1шт.

41

321-5130

DECAL

- CASE, with tread, RH, extendable dipper

1шт.

41a

321-5682

DECAL - CASE, with tread, RH, all backhoe dippers, white color for use on dark painted tractors, not included in kit, must be ordered separately, not shown

1шт.

42

321-3139

DECAL

- extendahoe

2шт.

43

321-3975

DECAL

- backhoe lever operation, extendahoe, with extendahoe lever on right, see Ref. 43A

1шт.

43a

321-5347

DECAL

- backhoe lever operation, extendahoe, with stabilizer lever on right, see Ref. 43

1шт.

44

321-4607

DECAL

- backhoe lever operation, models with hand swing

1шт.

45

321-4681

DECAL

- warining, craning

1шт.

46

321-3710

DECAL

- caution, PTO

1шт.

47

321-3888

DECAL

- PTO speed

1шт.

48

321-5361

KIT

DECAL - CASE, 3-point hitch frame

2шт.

49

321-3775

DECAL

- pallet fork does not self level when lowered

1шт.

50

321-3934

DECAL

- PTO circuit control

1шт.

51

321-4799

DECAL

- backhoe tension rods, backhoe models

1шт.

52

321-4408

DECAL

- safety strut

1шт.

53

321-4739

EMBLEM

- case, metal, front

1шт.

54

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - special, 1/4", emblem

2шт.
