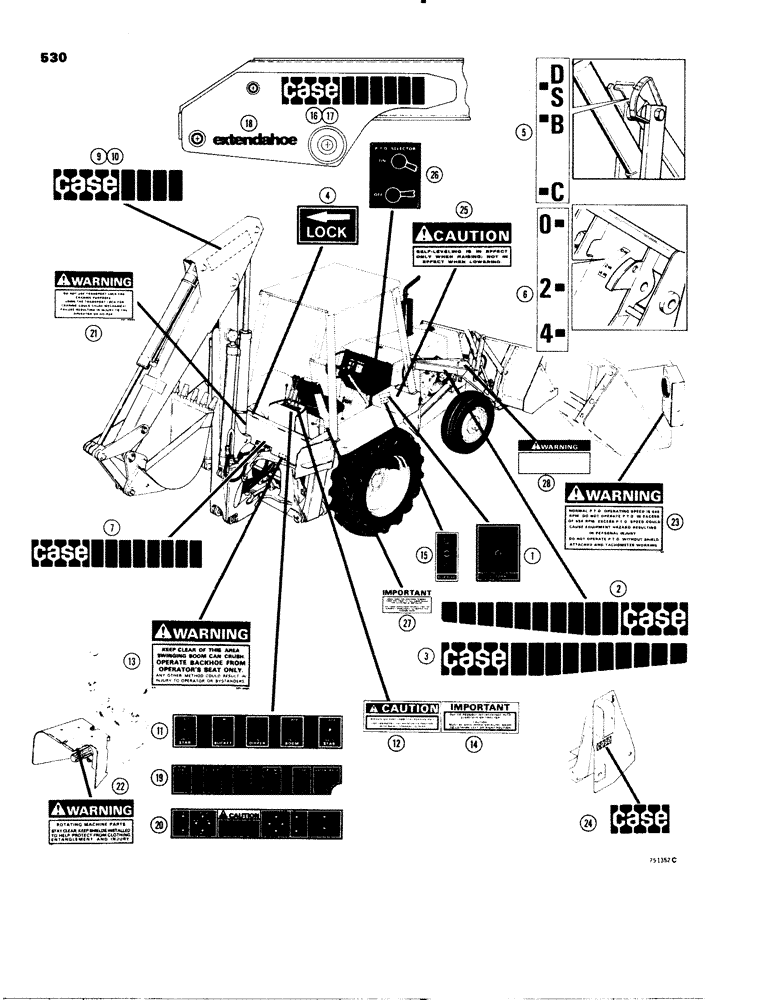

Запчасти Case 580C (530) - DECALS, BEFORE S/N 8982785, EQUIPMENT (09) - CHASSIS/ATTACHMENTS

D71408

DECAL

KIT - 580C, Includes: Ref. 1 - 28, also includes Refs. on Figure 528

1шт.

No brown decals are available.

1шт.

1

321-3718

DECAL

- loader control

1шт.

2

321-3274

DECAL

- "Case", with tread, RH

1шт.

3

321-3275

DECAL

- "Case", with tread, LH

1шт.

4

321-3348

DECAL

- boom lock

1шт.

5

321-1707

DECAL

- bucket position, 4-in-1

1шт.

6

321-1708

DECAL

- clam opening, 4-in-1

1шт.

7

321-3109

DECAL

- "Case", with tread, used on backhoe models

1шт.

8

RESERVED

1шт.

9

321-3182

DECAL

- "Case", with tread, RH, standard backhoe dipper

1шт.

10

321-3183

DECAL

- "Case", with tread, LH, standard backhoe dipper

1шт.

11

321-2192

DECAL

- operator's instructions, individual lever

1шт.

12

321-3056

DECAL

- caution, transport

1шт.

13

321-4481

DECAL

- warning, swing

2шт.

14

321-3058

DECAL

- important, swing

1шт.

15

321-3581

DECAL

- auxiliary loader control

1шт.

16

321-3135

DECAL

- "Case", with tread, LH, extendable dipper

1шт.

17

321-3134

DECAL

- "Case", with tread, RH, extendable dipper

1шт.

18

321-3139

DECAL

- "Extendabhoe"

2шт.

19

321-3975

DECAL

- operator's instructions, Extendahoe, individual lever

1шт.

20

321-4607

DECAL

- operator's instructions, all dual lever backhoes

1шт.

21

321-3885

DECAL

- warning, craning

1шт.

22

321-3710

DECAL

- caution, PTO

1шт.

23

321-3888

DECAL

- PTO speed

1шт.

24

321-2425

DECAL

- "Case", 3-Point hitch frame

2шт.

25

321-3775

DECAL

- pallet fork does not self level when lowered

1шт.

26

321-3934

DECAL

- PTO circuit control

1шт.

27

321-4799

DECAL

- backhoe tension rods, backhoe models

1шт.

28

321-4408

DECAL

- safety strut

1шт.
