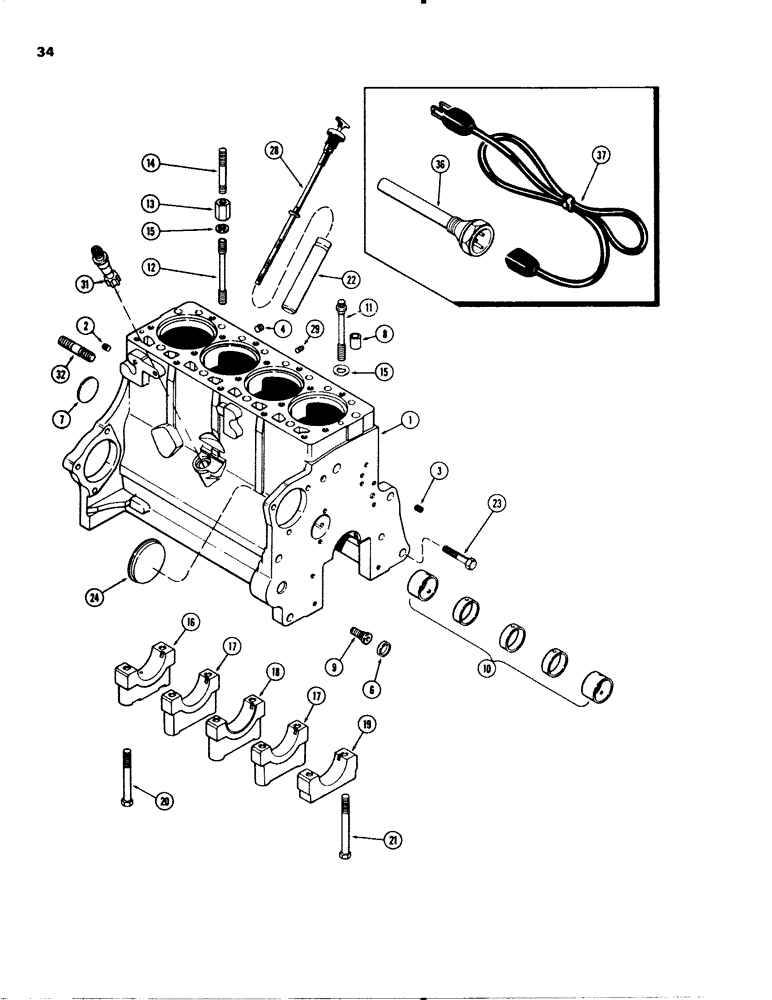

Запчасти Case 580C (034) - CYLINDER BLOCK, 207 DIESEL ENGINE, USED BEFORE ENGINE S/N 2850355 (02) - ENGINE

A46037

SHORT ENGINE

BLOCK ASSEMBLY - short (Includes stripped block, piston assembly, connecting rods and bearings, crankshaft and bearings, camshaft, oil pump and timing gears) (Order A46350), Includes: Ref. 1 - 24

1шт.

1

A44702

BLOCK

ASSEMBLY - stripped (Casting No. A136813) (Order A46351), Includes: Ref. 2 - 24

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Rear oil gallery Hex Soc, 1/4"-18 NPTF

2шт.

3

G49070

PLUG

oil gallery, front, 1/4" PT, drilled head

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

3/8" PT, socket head

1шт.

6

41-1016

PLUG,Cup, 1"

adapter hole 1" cup type (25.4 mm)

1шт.

7

A39241

PLUG,Exp, 2.12" dia

camshaft hole, 2-1/8" expansion (54 mm)

1шт.

8

G49608

RING

dowel, head locating

2шт.

9

A153552

ADAPTER

- oil filter

1шт.

10

A151075

BUSHING

SET - camshaft

1шт.

11

A39047

12 PT SCREW

cylinder head, 1/2 x 3-1/2" NC, 12 point head

4шт.

11

A39048

12 PT SCREW

cylinder head, 1/2 x 5-1/8" NC, 12 point head

11шт.

11

A39049

12 PT SCREW

cylinder head, 1/2 x 5-5/8" NC, 12 point head

2шт.

12

A36902

STUD

cylinder head, 1/2" NC x 5-5/8"

2шт.

13

A51114

NUT

cylinder head studs, 1/2" NC and 3/8" NC

2шт.

14

A51271

STUD

cylinder head cover, 3/8" NC x 3-3/4"

2шт.

15

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

1/2 x 7/8" (12.7 x 22.23 x 3.18 mm)

19шт.

16

A38385

CAP

main bearing, rear (Replaces A51057)

1шт.

17

G2128

CAP

main bearing, intermediate (Replaces A51055)

2шт.

18

G2127

CAP

main bearing, center (Replaces A51056)

1шт.

19

G2126

CAP

main bearing, front (Replaces A51054)

1шт.

20

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- bearing caps, 1/2 x 4-1/2" NC hex

8шт.

21

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- front cap, 1/2 x 5-1/8" NC hex

2шт.

22

A37149

TUBE

oil filler and dipstick

1шт.

23

A38303

BOLT

front support, 5/8 x 3-3/16" NC hex

1шт.

24

A29268

PLUG

COVER - auxiliary drive opening, 3-1/2" cup type (93.9 mm)

1шт.

28

A39936

DIPSTICK

oil level (Turn-tite type)

1шт.

29

221-662

PLUG,Hex Hd, 1/4"-18

drain, cylinder block, 1/4" PTsquare head

1шт.

31

A137572

DRIVE

ASSEMBLY - tachometer

1шт.

32

A51793

STUD

5/8" NF x 3-3/16"

2шт.

36

A44815

HEATER

ASSEMBLY - block, Includes: Ref. 37

1шт.

37

A44814

ELECTRIC CABLE

CORD - heater, 12" long (304.8 mm), block

1шт.
