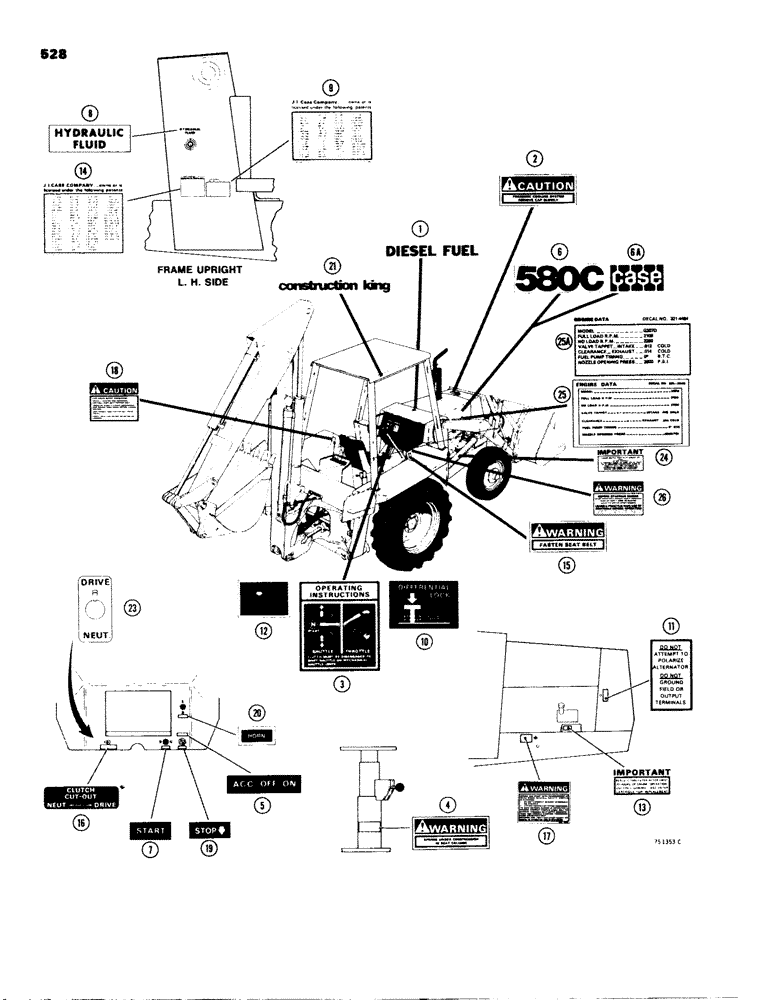

Запчасти Case 580C (528) - DECALS, BEFORE S/N 8982785, BASIC TRACTOR (09) - CHASSIS/ATTACHMENTS

D71408

DECAL

KIT - 580C, also includes Refs. on Figure 530, Includes: Ref. 1 - 26

1шт.

No brown decals are available.

1шт.

1

321-230

DECAL

- diesel fuel

1шт.

2

321-3061

DECAL

- caution, radiator pressure

1шт.

3

321-3055

DECAL

- instructions, throttle and shifting

1шт.

4

321-3055

DECAL

- warning, seat spring

1шт.

5

321-3402

DECAL

- ignition switch

1шт.

6

321-3264

DECAL

- "580C"

2шт.

6a

321-1573

DECAL

- "Case", used on models without loader only

2шт.

7

321-3401

DECAL

- start, push button

1шт.

8

321-229

DECAL

- hydraulic fluid

1шт.

9

321-663

DECAL

- equipment patent

1шт.

10

321-1646

DECAL

- differential lock

1шт.

11

321-1061

DECAL

- alternator instructions

1шт.

12

321-3307

DECAL

- clutch disconnect, power shuttle models

1шт.

13

321-2101

DECAL

- oil filter

1шт.

14

321-246

DECAL

- tractor patent

1шт.

15

321-3060

DECAL

- seat belt

1шт.

16

NSS

NOT SOLD SEPARAT

DECAL - clutch cutout, order D73929 plate for service

1шт.

17

321-4126

DECAL

- starter, neg ground

1шт.

18

321-3022

DECAL

- caution

1шт.

19

321-3579

DECAL

- stop, fuel shutoff

1шт.

20

321-3294

DECAL

- electric horn

1шт.

21

321-3231

DECAL

- Construction King, ROPS Canopy and Cab

2шт.

22

RESERVED

1шт.

23

D73929

PLATE

- clutch cutout (power shuttle models)

1шт.

24

321-3882

DECAL

- oil check

1шт.

25

321-2940

DECAL

- engine data, valve cover, engine, Serial Range: -2831781

1шт.

25a

321-4494

DECAL

- engine data, valve cover, engine sn 2831781 - 2869289

1шт.

26

321-3705

DECAL

- saftety warning

1шт.
