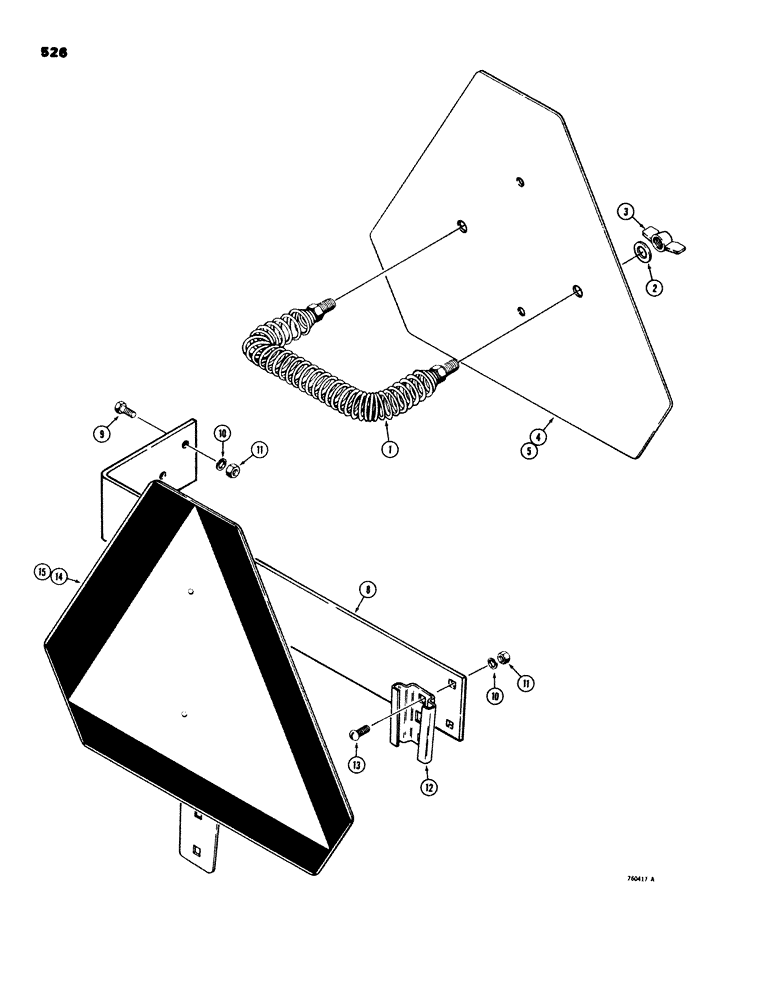

Запчасти Case 580C (526) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

1

D52564

SPRING

- emblem retaining

1шт.

2

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

2шт.

3

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

4

D52581

TRAFFIC SIGN

EMBLEM - plate and decal, Includes: Ref. 5

1шт.

5

321-1751

DECAL

- emblem

1шт.

6

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used when storing emblem only, not shown Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used when storing emblem only, not shown

2шт.

8

D69980

BRACKET

- SMV mounting

1шт.

Used on Loader or Drawbar Models

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Used on loader or drawbar models

2шт.

Used on Loader or Drawbar Models

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used on loader or drawbar models 5/16"

4шт.

Used on Loader or Drawbar Models

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

Used on loader or drawbar models 5/16"-18, G5

4шт.

Used on Loader or Drawbar Models

1шт.

12

A59457

BRACKET

SOCKET - emblem mounting, used on loader or drawbar models

1шт.

Used on Loader or Drawbar Models

1шт.

13

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - round head, 5/16" - 18 NC x 3/4", plated, used on loader or drawbar models

2шт.

Used on Loader or Drawbar Models

1шт.

14

A59450

WARNING SIGN

EMBLEM - plate and decal, used on loader or drawbar models, Includes: Ref. 5

1шт.

Used on Loader or Drawbar Models

1шт.

15

321-1751

DECAL

emblem, used on loader or drawbar models

1шт.

Used on Loader or Drawbar Models

1шт.
