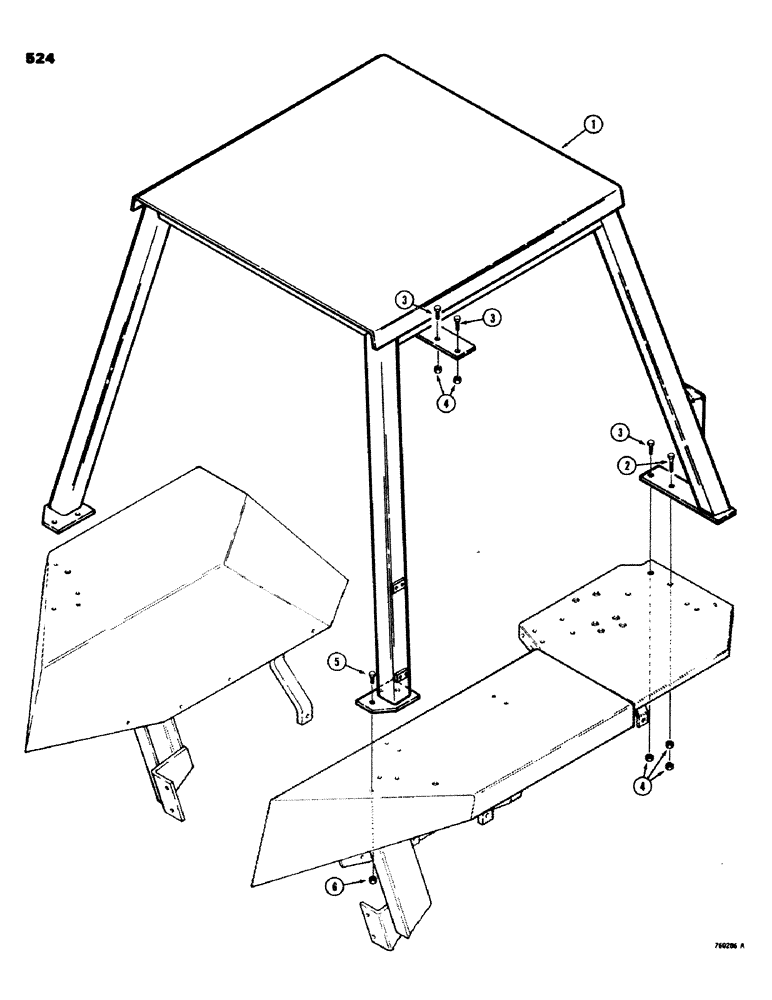

Запчасти Case 580C (524) - ROPS CANOPY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, machinery item, see Figure 2 for ordering

1шт.

2

113-684

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

1шт.

3

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

4

129-183

NUT,5/8"-11, G8

5шт.

5

113-2418

BOLT

- hex, 1/2" - 13 NC x 1-3/4", grade 8, plated

6шт.

6

129-184

NUT,1/2"-13, G8

- hex, 1/2" - 13 NC, plated

6шт.
