(522) - CAB GLASS AND MOLDING

Запчасти Case 580C (522) - CAB GLASS AND MOLDING (09) - CHASSIS/ATTACHMENTS

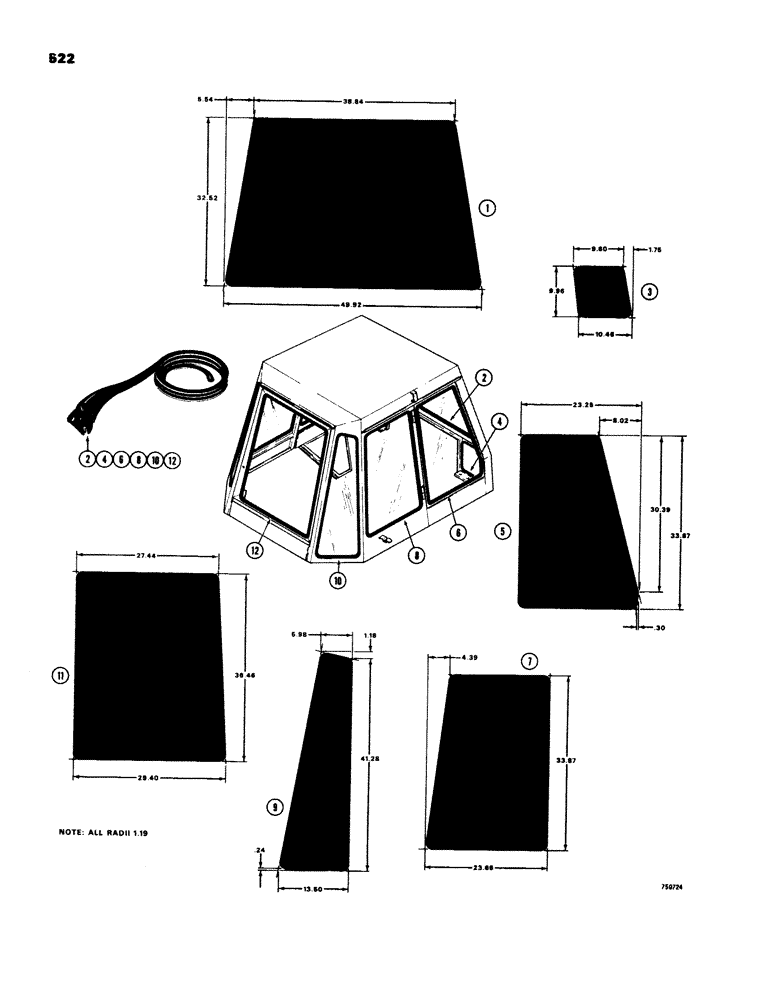

Схема запчастей Case 580C - (522) - CAB GLASS AND MOLDING (09) - CHASSIS/ATTACHMENTS
6
9
7
8
5
4
2
12
4
10
6
8
3
1
12
10
11
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOLDING - glass, 129.4" (3287 mm) long, cut from A42677 bulk

1шт.

3

REF

INSTRUCTION

GLASS - lower front

1шт.

4

REF

INSTRUCTION

MOLDING - glass, 41" (1041 mm) long, cut from A42677 bulk

1шт.

5

REF

INSTRUCTION

GLASS - side, front

2шт.

6

REF

INSTRUCTION

MOLDING - glass, 107" (2718 mm) long, cut from A42677 bulk

2шт.

7

REF

INSTRUCTION

GLASS - side, rear

2шт.

8

REF

INSTRUCTION

MOLDING - glass, 111" (2819 mm) long, cut from A42677 bulk

2шт.

9

REF

INSTRUCTION

GLASS - rear quarter

2шт.

10

REF

INSTRUCTION

MOLDING - glass, 104" (2463 mm) long, cut from A42677 bulk

2шт.

11

REF

INSTRUCTION

GLASS - rear window

1шт.

12

REF

INSTRUCTION

MOLDING - glass, 129.4" (3287 mm) long cut from F43628 bulk

1шт.

A42677

MOLDING

- bulk roll, 50 ft (1524 cm)

1шт.

F43628

MOLDING

- bulk roll, 100 ft (3048 cm)

1шт.
