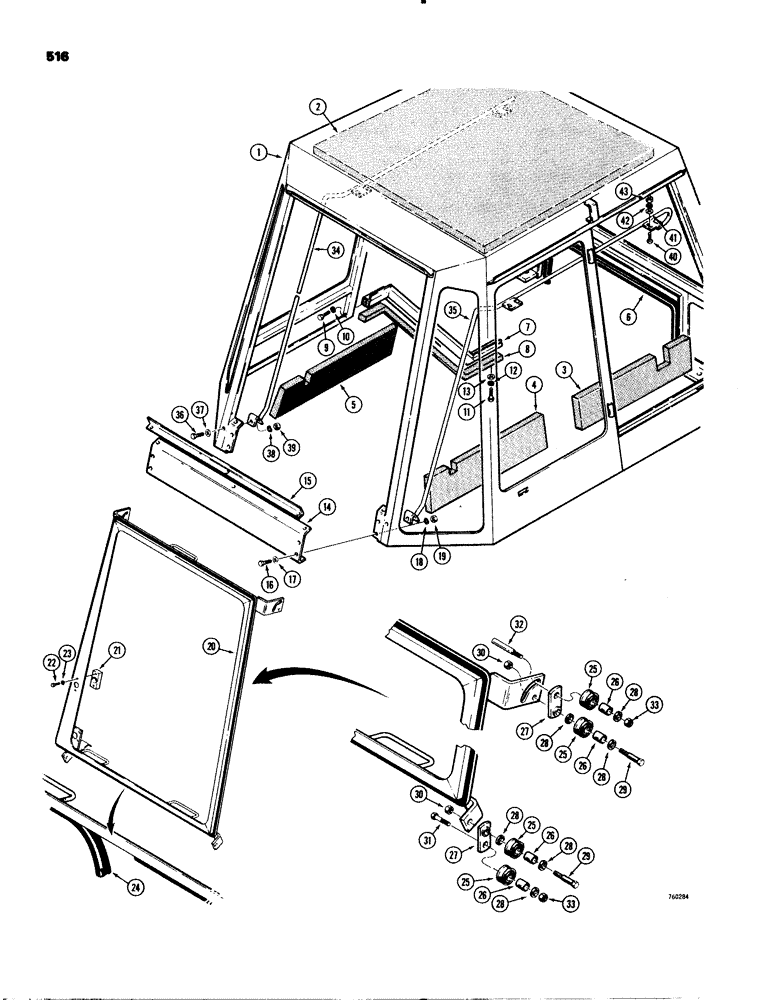

Запчасти Case 580C (516) - CAB FRAME AND REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

F44617

ROOF

PAD - headliner, cab top

1шт.

3

F43953

PLATE ASSY.

PAD - foam, RH front panel

1шт.

4

F43951

FOAM

PAD - foam, RH rear panel

1шт.

5

F43952

PLATE ASSY.

PAD - foam, LH, rear panel

1шт.

6

REF

INSTRUCTION

SEAL - cowl, 55" (1397 mm) long

1шт.

Cut from seal bulk roll, P/N F43086.

1шт.

7

F93886

FRAME

- door

1шт.

8

REF

INSTRUCTION

SEAL - door

1шт.

Cut from seal bulk roll, P/N F44595.

1шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

14

F43958

PANEL

- lower, rear

1шт.

15

F43959

ANGLE

- seal, lower panel

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

17

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

7шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

19

9635082

NUT,5/16" - 18, Gr 5

7шт.

20

R37442

WINDOW

FRAME - rear window, Includes: Ref. 21

1шт.

21

R37439

BLOCK

- wiper mounting

1шт.

22

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

REF

INSTRUCTION

SEAL - rear window, 144" (3658 mm) long

1шт.

Cut from seal bulk roll, P/N F43086.

1шт.

25

F43589

ROLLER

- rear window

8шт.

26

F43832

SPACER

- roller

8шт.

27

F93875

ARM

- roller

4шт.

28

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

12шт.

29

F43937

PIN

- roller

4шт.

30

131-1117

LOCK NUT,5/16"-18, GA

NUT - hex, lock, 5/16" - 18 NC, plated

4шт.

31

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

32

F43961

PIN

- roller

2шт.

33

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, lock, 3/8" - 16 NC, plated

4шт.

34

F93879

TRACK CHAIN

TRACK - LH rear window

1шт.

35

F93878

TRACK CHAIN

TRACK - RH rear window

1шт.

36

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

37

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

40

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

8шт.

41

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

8шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

43

9635082

NUT,5/16" - 18, Gr 5

8шт.

F43086

SEAL

- bulk roll, 100 ft (3048 cm)

1шт.

F44595

SEALING STRIP

- bulk roll, 50 ft (1524 cm)

1шт.

345-44

ADHESIVE

- spray can, for attaching rubber pads to metal surface

1шт.
