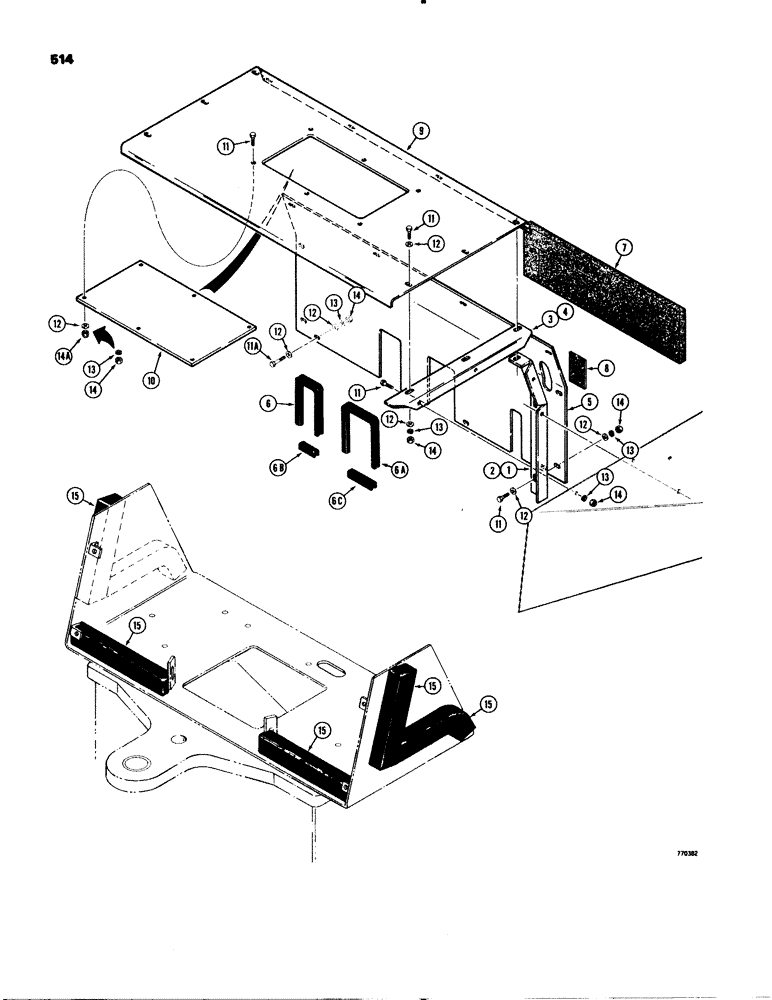

Запчасти Case 580C (514) - CAB TO TRACTOR ENCLOSURE PANELS (09) - CHASSIS/ATTACHMENTS

1

D71028

ANGLE

BRACKET - RH side

1шт.

2

D71029

ANGLE

BRACKET - LH side

1шт.

3

D71026

ANGLE

BRACKET - RH top

1шт.

4

D71027

ANGLE

BRACKET - LH top

1шт.

5

D73223

PANEL

- enclosure, vertical

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings. When replacing Ref. 5 on these models, also order Refs. 6 thru 8 complete the installation. When replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

6

REF

INSTRUCTION

TRIM - edge trim, 12.5" (318 mm) long, cut from D52812, see below

2шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings. When replacing Ref. 5 on these models, also order Refs. 6 thru 8 complete the installation. When replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

6a

REF

INSTRUCTION

TRIM - edge trim, 14.5" (368 mm) long, cut from D52812, see below

2шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings. When replacing Ref. 5 on these models, also order Refs. 6 thru 8 complete the installation. When replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

6b

REF

INSTRUCTION

TRIM - edge trim, 3" (76 mm) long, cut from D52812, see below

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings. When replacing Ref. 5 on these models, also order Refs. 6 thru 8 complete the installation. When replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

6c

REF

INSTRUCTION

TRIM - edge trim, 5" (127 mm) long, cut from D52812, see below

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings. When replacing Ref. 5 on these models, also order Refs. 6 thru 8 complete the installation. When replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

7

D74213

FOAM

PAD - foam

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings. When replacing Ref. 5 on these models, also order Refs. 6 thru 8 complete the installation. When replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

8

D75251

FOAM

PAD - foam

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings. When replacing Ref. 5 on these models, also order Refs. 6 thru 8 complete the installation. When replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

9

D74846

PANEL

- enclosure, horizontal

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings. When replacing Ref. 5 on these models, also order Refs. 6 thru 8 complete the installation. When replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

10

D74847

WINDOW

COVER - D74846 panel, see thru window

1шт.

Some early production tractors had solid panels without see thru window, Ref. 10, and sealing foam pads or rubber edge trim around openings. When replacing Ref. 5 on these models, also order Refs. 6 thru 8 complete the installation. When replacing Ref. 9 on these models, also order the window panel, Ref. 10, and attaching hardware for Ref. 10.

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

28шт.

11a

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

40шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

25шт.

14

9635082

NUT,5/16" - 18, Gr 5

25шт.

14a

231-1445

NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC

6шт.

15

REF

INSTRUCTION

STRIP foam, used on backhoe models, cut from D59896 foam pad, see below

6шт.

Part of Pad P/N D59896

1шт.

345-44

ADHESIVE

- spray can, for attaching rubber pads to metal surface

1шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long

1шт.

D59896

PADDING

PAD foam, 54", 1372 mm, x 36", 914 mm, x 2", 51 mm, sheet, cut foam strips, Ref. 15, from this sheet as required

1шт.
