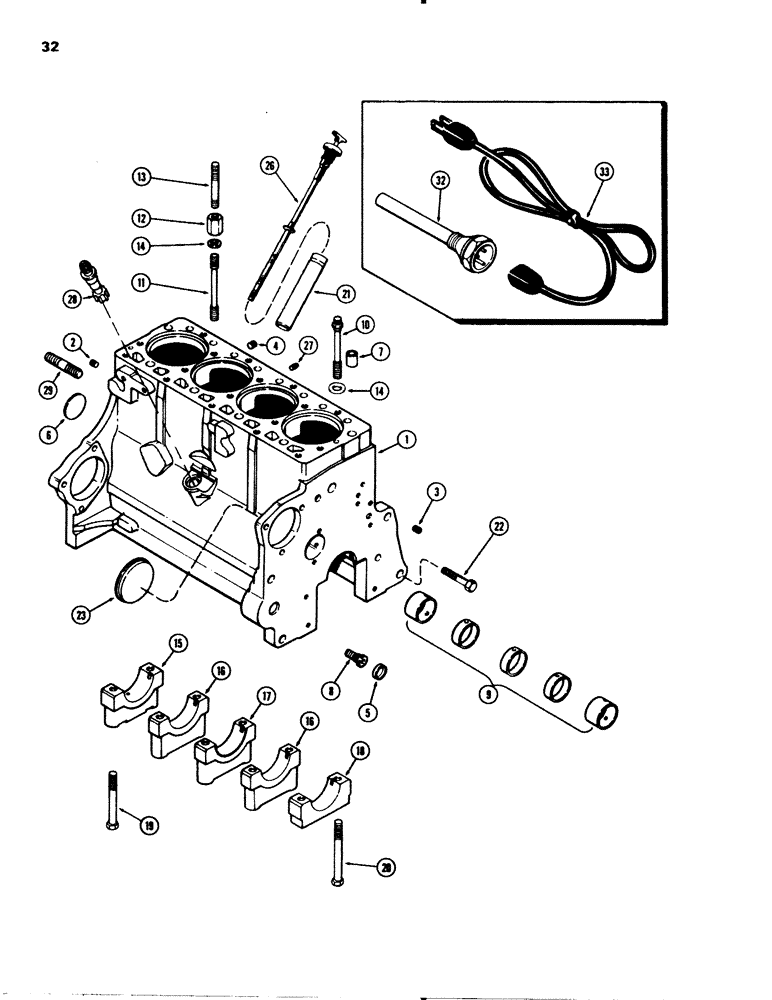

Запчасти Case 580C (032) - CYLINDER BLOCK, 207 DIESEL ENGINE, USED ENGINE S/N 2850355 & AFTER (02) - ENGINE

A46350

SKELETON ENGINE

BLOCK ASSEMBLY - short (Includes stripped block, piston assembly, connecting rods and bearings, crankshaft and bearings, camshaft, oil pump and timing gears), Includes: Ref. 1 - 23

1шт.

Ref A46350 block assy - Engine SN 2869290 and after used short block nbr A46381 (which is no longer avail. for either North American or International orders). Must use either strip block A46351 (or reman strip block AR46351) plus components.

1шт.

1

A46351

BASIC BLOCK

ASSEMBLY - stripped (Casting No. A152625), Includes: Ref. 2 - 23

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

3

G49070

PLUG

oil gallery, 1/4" PT, drilled socket head

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

water gallery, 3/8" PT, socket head

1шт.

5

41-1016

PLUG,Cup, 1"

adapter hole, 1" cup type (25.4 mm)

1шт.

6

41-1030

PLUG,Cup, 1 7/8"

camshaft hole, 1-7/8" cup type (47.63 mm)

1шт.

7

G49608

RING

dowel, head locating

2шт.

8

A153552

ADAPTER

- oil filter

1шт.

9

A151075

BUSHING

SET - camshaft

1шт.

10

A39047

12 PT SCREW

cylinder head, 1/2 x 3-1/2" NC, 12 point head

4шт.

10

A39048

12 PT SCREW

cylinder head, 1/2 x 5-1/8" NC, 12 point head

11шт.

10

A39049

12 PT SCREW

cylinder head, 1/2 x 5-5/8" NC, 12 point head

2шт.

11

A36902

STUD

cylinder head, 1/2" NC x 5-5/8"

2шт.

12

A51114

NUT

cylinder head studs, 1/2" NC and 3/8" NC

2шт.

13

A51271

STUD

cylinder head cover, 3/8" NC x 3-3/4"

2шт.

14

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

1/2 x 7/8 x 1/8" (12.7 x 22.23 x 3.18 mm)

19шт.

15

A38385

CAP

main bearing, rear

1шт.

16

G2128

CAP

main bearing, intermediate

2шт.

17

G2127

CAP

main bearing, center

1шт.

18

G2126

CAP

main bearing, front

1шт.

19

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- bearing caps, 1/2 x 4-1/2" NC hex

8шт.

20

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- front bearing cap, 1/2 x 5-1/8" NC hex

2шт.

21

A37149

TUBE

oil filler and dipstick (Discard extension tube, o-ring and clamp. Not used this model)

1шт.

22

A38303

BOLT

front support, 5/8 x 3-3/16" NC hex

1шт.

23

41-1052

PLUG,Cup, 3 1/4"

COVER - auxiliary drive opening, 3-1/2" cup type (93.9 mm)

1шт.

41-1052 cover - Dimension should read 3.250".

1шт.

26

A39936

DIPSTICK

oil level

1шт.

27

221-662

PLUG,Hex Hd, 1/4"-18

drain, cylinder block, 1/4" PT, square head

1шт.

28

A137572

DRIVE

ASSEMBLY - tachometer

1шт.

29

A51793

STUD

5/8" NF x 3-3/16"

2шт.

32

A44815

HEATER

ASSEMBLY - block, Includes: Ref. 33

1шт.

33

A44814

ELECTRIC CABLE

CORD - heater, 12" long (304.8 mm), block

1шт.
