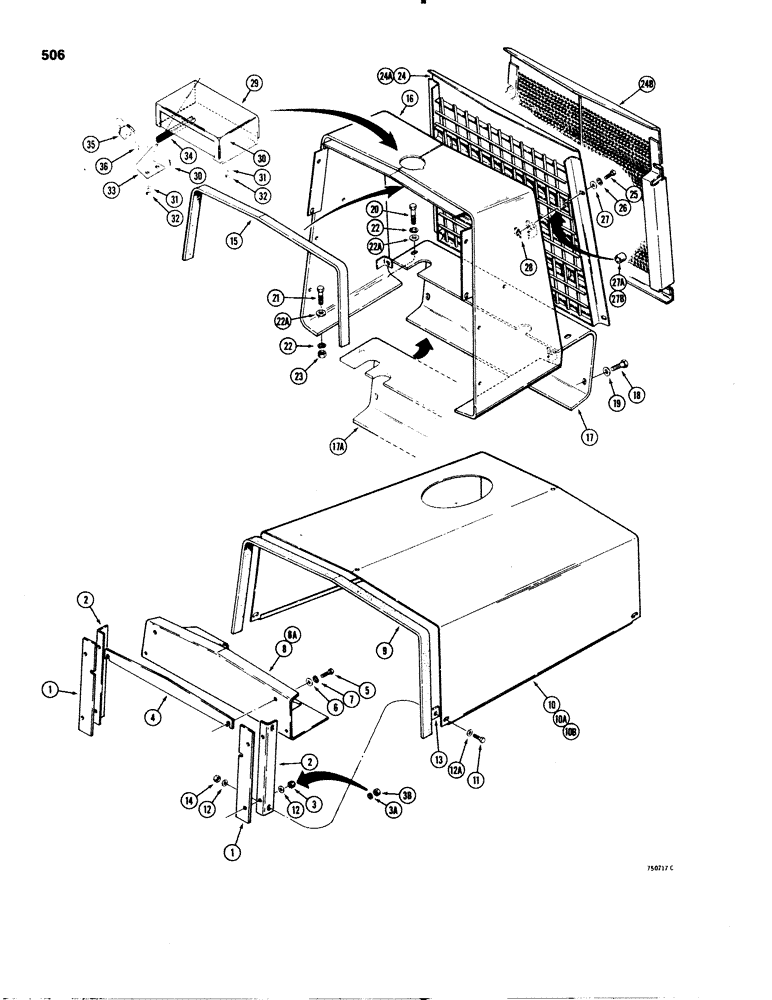

Запчасти Case 580C (506) - HOOD AND RADIATOR SHROUD (09) - CHASSIS/ATTACHMENTS

24

D77114

GUARD

GRILLE - radiator, used tractor, Serial Range: -8961374

1шт.

24a

D72043

GRILLE - radiator, power shuttle models with PTO only, tractor, Serial Range: -8961374

1шт.

24b

D77114

GUARD

GRILLE - radiator, all models, tractor, Start Serial: 8961374

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used with Ref. 24 Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2", Used with Refs. 24 and 27A

4шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used with Ref. 24B Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Used with 24B and 27B Hex, 3/8"-16 x 1 3/4", G5

4шт.

26

92-6

LOCK WASHER,3/8"

4шт.

27

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

27a

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- grille to shroud, power shuttle models with PTO tractor, Serial Range: -8961374

4шт.

27b

D76211

SPACER

- grille to shroud, power shuttle models with PTO tractor, Start Serial: 8961374

4шт.

28

131-634

SPRING NUT,J, Ret, 3/8"-16

- J-type, 3/8" - 16 NC

4шт.

29

D70139

COVER

- radiator and fuel cap, models with lockup parts

2шт.

30

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

31

92-5

LOCK WASHER,5/16"

8шт.

32

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

8шт.

33

D70140

BRACKET

- lock

2шт.

34

D95462

MOLDING

TRIM - edge, 9" (229 mm) long; cut to length

1шт.

35

R29556

LOCK

ASSEMBLY - cover, includes keys, Includes: Ref. 36

1шт.

R29556 lock - This part now subs to Yale lock (part nbr D93753). Keys for Yale lock are part nbr D93751.

1шт.

36

R29555

KEY

- padlock

2шт.
