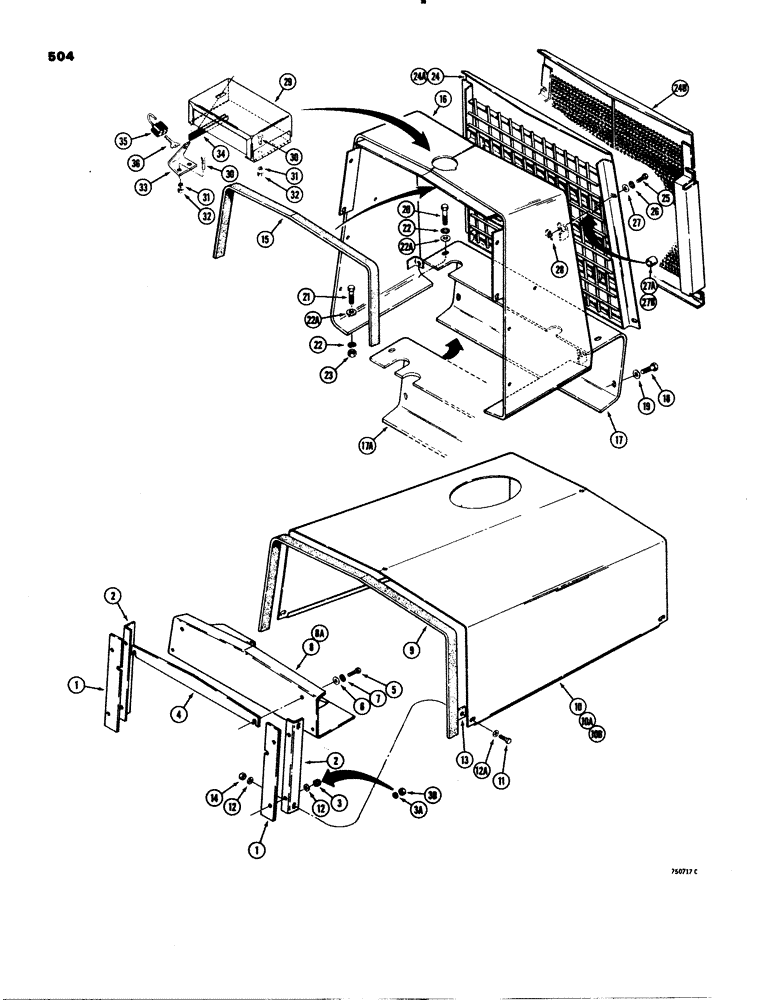

Запчасти Case 580C (504) - HOOD AND RADIATOR SHROUD (09) - CHASSIS/ATTACHMENTS

1

D70484

SPACER - support, hood mounting, if used

2шт.

2

D74220

ANGLE

SUPPORT - hood mounting, used tractor, Serial Range: -8954614

2шт.

2

D75571

ANGLE

SUPPORT - hood mounting, used on tractor, Start Serial: 8954614

2шт.

3

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC, if used

6шт.

3a

92-5

LOCK WASHER,5/16"

if used 5/16"

6шт.

3b

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, if used

6шт.

4

D70485

SPACER - hood mounting, if used

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

D75519

SHOE

BRACKET - hood and air cleaner mounting, used tractor, order D75417, Serial Range: -8954614

1шт.

8a

D75417

LARGE PLATE

BRACKET - hood and air cleaner mounting, used on tractor, eliminates the need for Refs. 1 and 4, Start Serial: 8954614

1шт.

9

D95582

BAND

STRIP - rubber, rear

1шт.

10

D73313

HOOD

- engine, models with vertical air cleaner intake, muffler opening is 5.6" (142 mm) x 9.4" (239 mm)

1шт.

D73313 hood - Illustration does not show air cleaner hole towards rear left-center of hood.

1шт.

10a

D67749

HOOD

- engine, models with horizontal air cleaner intake tube, muffler opening is 5.6" (142 mm) x 9.4" (239 mm)

1шт.

10b

D73208

HOOD

- engine, models with horizontal air cleaner intake tube, muffler opening is 6.9" (175 mm) x 10.4" 9264 mm)

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

12

195-21

WASHER,5/16"

- flat, 5/16"

4-8шт.

12a

195-103

WASHER,5/16"

- flat, plated

4шт.

13

D61266

BUSHING

SPACER - hood

4шт.

14

131-651

NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC

4шт.

15

D95581

SEALING STRIP

STRIP - rubber, front

1шт.

16

D74242

SHROUD - radiator

1шт.

17

D73429

GUARD

- pump, used tractor, Serial Range: -8961374

1шт.

17a

D76755

GUARD - pump, used on tractor, Start Serial: 8961374

1шт.

18

13-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

2шт.

19

195-45

WASHER,3/4"

2шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

22

92-8

LOCK WASHER,1/2"

4шт.

22a

95-8

WASHER,1/2"

flat 1/2"

4шт.

23

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.
