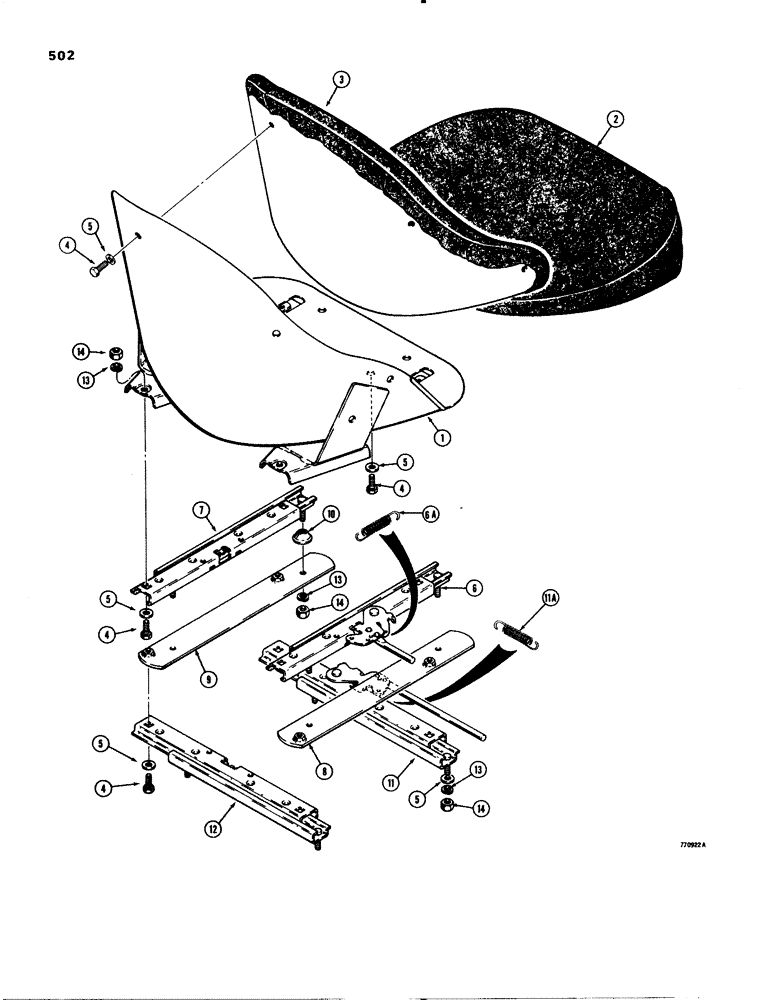

Запчасти Case 580C (502) - D58296 SEAT (09) - CHASSIS/ATTACHMENTS

D58296

SEAT ASSY.

SEAT ASSEMBLY - operator's, Includes: Ref. 1 - 14

1шт.

Optional style seat shown on Figure 500

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

D59685

CUSHION

- seat

1шт.

3

L30536

BACKREST

CUSHION - backrest

1шт.

4

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

15шт.

5

195-103

WASHER,5/16"

- flat, 5/16"

19шт.

6

L35490

ADJUSTER

- rail, RH

1шт.

6a

L35503

SPRING

- adjuster rail

1шт.

7

D56887

SEAT

ADJUSTER - rail, RH

1шт.

8

D59686

BRACKET

- RH

1шт.

9

D59687

BRACKET

- LH

1шт.

10

D59689

SPACER

- 3/8" ID x 3/8" thick

4шт.

11

D59688

SLIDE

ADJUSTER - rail, front, Includes: Ref. 11A

1шт.

11a

L35503

SPRING

- adjuster rail

1шт.

12

L35272

ADJUSTER

- rail, rear

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

14

9635082

NUT,5/16" - 18, Gr 5

10шт.
