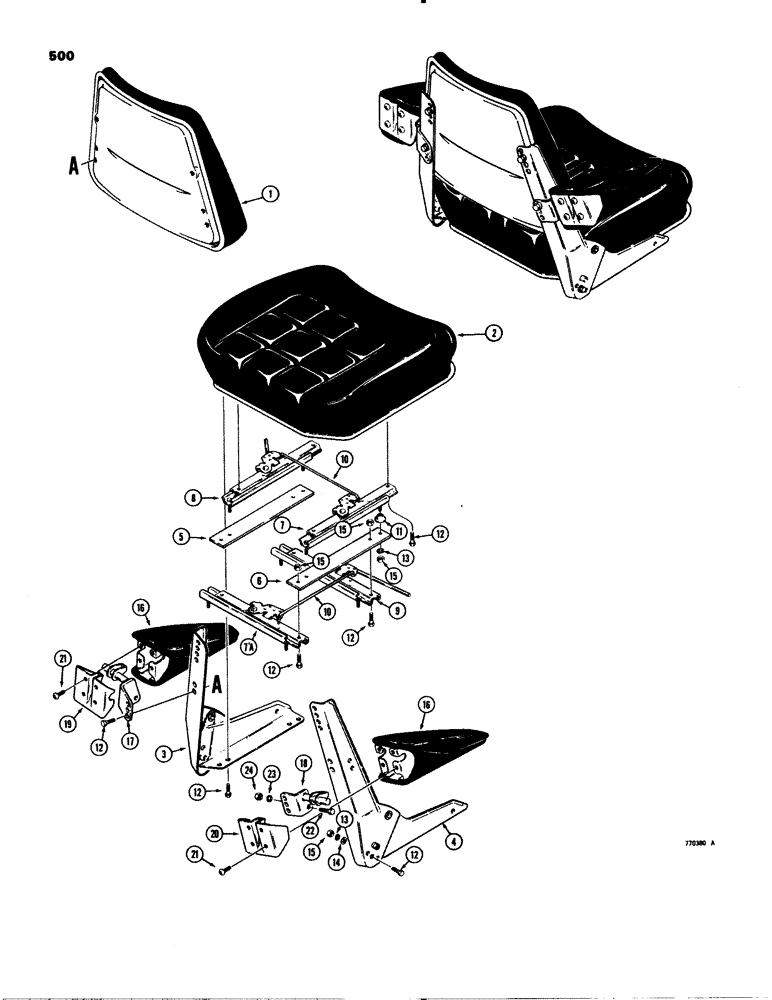

Запчасти Case 580C (500) - D73821 AND L57148 SEATS (09) - CHASSIS/ATTACHMENTS

L57148

SEAT

ASSEMBLY - operator, used tractor, order L78233, Includes: Ref. 1 - 15, Serial Range: -8951178

1шт.

Optional style seat shown on Figure 502

1шт.

D73821

SEAT

ASSEMBLY - operator, used on tractor, Includes: Ref. 1 - 15, Start Serial: 8951178

1шт.

Optional style seat shown on Figure 502

1шт.

1

D56884

BACKREST

- seat

1шт.

2

D56883

SEAT

CUSHION - seat

1шт.

3

D56885

RAIL ASSY.

FRAME - seat, LH

1шт.

4

D56886

RAIL ASSY.

FRAME - seat, RH

1шт.

5

D59687

BRACKET

- mounting, LH

1шт.

6

D59686

BRACKET

- mounting, RH

1шт.

7

A64818

ADJUSTER

- RH, D57148 seat only

1шт.

Ref. 7 - 9 adjusters, All of these Refs. include the A45060 spring, which shows in illustration attached to each of above Refs.

1шт.

7

L35491

SLIDE

ADJUSTER - RH, D73821 seat only

1шт.

7a

A64818

ADJUSTER

- rear, D57148 and D73821 seats

1шт.

8

L35629

ADJUSTER

- LH, D57148 seat only

1шт.

Ref. 7 - 9 adjusters, All of these Refs. include the A45060 spring, which shows in illustration attached to each of above Refs.

1шт.

8

D56888

ADJUSTER

- LH, D73821 seat only

1шт.

9

D59695

SUPPORT

ADJUSTER - front, D57148 seat only

1шт.

9

D73726

ADJUSTER

- front, D73821 seat only

1шт.

Ref. 7 - 9 adjusters, All of these Refs. include the A45060 spring, which shows in illustration attached to each of above Refs.

1шт.

9a

D80346

GUARD - seat adjuster, if used, not shown

2шт.

10

L35492

ROD

- connecting, seat adjusters

1шт.

L35492 connecting rod, This has been changed to qty 1 of this part along with 1 of P/N N13609 connecting rod

1шт.

11

D59689

SPACER

- seat frame

4шт.

12

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

18шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

14

195-521

WASHER,5/16", SAE

- lock, 5/16", plated

18шт.

15

9635082

NUT,5/16" - 18, Gr 5

10шт.

D56424

ARMREST

KIT - arm rest, Includes: Ref. 16 - 24

1шт.

16

D56898

ARMREST

ARM REST - operator

2шт.

17

D56899

BRACKET

- mounting, LH

1шт.

18

D56900

BRACKET

- mounting, RH

1шт.

19

D56901

BRACKET

PLATE - mounting, LH

1шт.

20

D56902

BRACKET

PLATE - mounting, RH

1шт.

21

187-1004

SELF-TAP SCREW,Cross Flat Hd, #8 x 3/8"

SCREW - self-tapping, no. 8 - 32 NC x 3/8"

8шт.

22

113-143

BOLT,5/16" x 5/8"

- hex, 5/16" - 18 NC x 5/8"

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

2шт.
