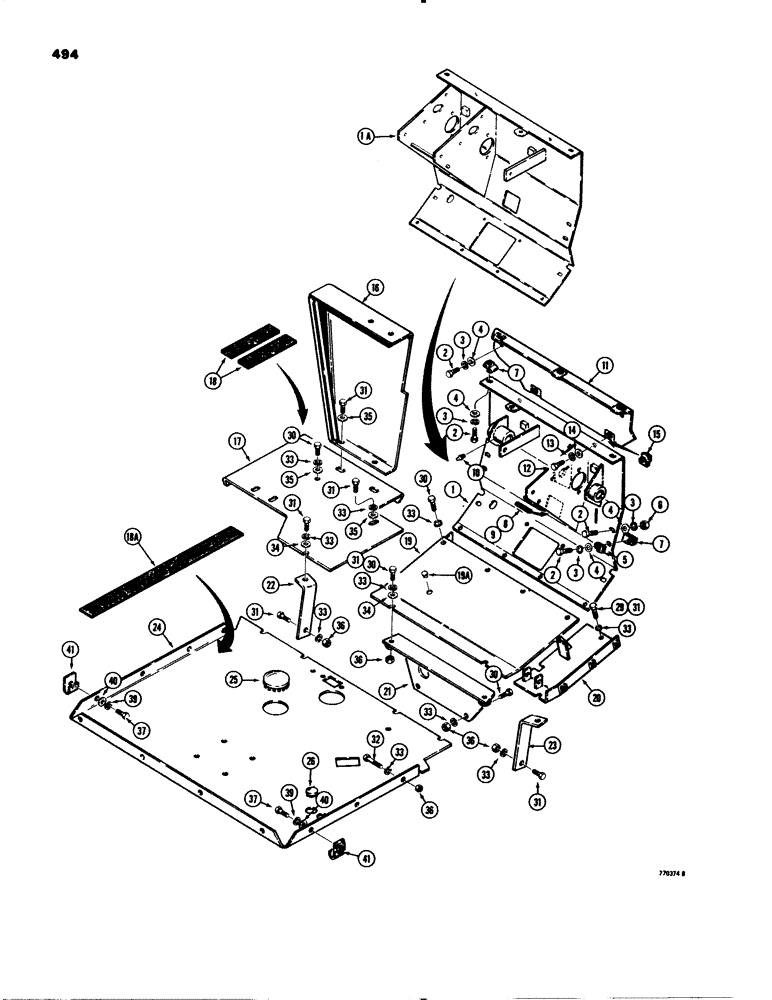

Запчасти Case 580C (494) - FLOOR PLATES AND FIREWALL (09) - CHASSIS/ATTACHMENTS

1

D67017

FIREWALL - pedal mounting, mechanical shuttle models

1шт.

1a

D81393

WALL

FIREWALL- pedal mounting, power shuttle models

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

11шт.

3

92-6

LOCK WASHER,3/8"

11шт.

4

195-25

WASHER,3/8"

- flat, 3/8"

11шт.

5

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- bracke lines

2шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

7

131-634

SPRING NUT,J, Ret, 3/8"-16

- J-type, 3/8" - 16 NC

8шт.

8

REF

INSTRUCTION

TRIM edge, firewall opening, horizontal, 2-1/4", 57 mm, long, cut from D52812, see below

2шт.

Part of Trim P/N D52812

1шт.

9

D72356

LINING

TRIM - edge, firewall opening, vertical

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8" NPT, if used

1шт.

11

D67256

PLATE - upper

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

15

1310636

NUT - J-type, 5/16" - 18 NC

2шт.

16

D68362

PANEL

- LH front

1шт.

17

D68667

FLOOR

PLATE - floor, entrance

1шт.

18

D55216

PAD,2" x 9"

STRAP - non-skid, short

2-4шт.

18a

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID, long, if used

1шт.

19

D86846

PLATE

- floor, front, all mechanical shuttle models and power shuttle models, Serial Range: -898532

1шт.

19

D84332

FLOOR

PLATE - floor, front power shuttle models, Start Serial: 898532

1шт.

19a

535-407

PLUG - button, 11/16", if used

1шт.

20

D66769

PLATE

- floor, RH front

1шт.

21

D66063

BRACKET - crossmember

1шт.

22

D70498

BRACKET - LH

1шт.

23

D70499

BRACKET - RH

1шт.

24

D68659

FLOOR

PLATE - floor, rear, mechanical shuttle models tractor, order D75145 and 353-462 bushing, see Figure 216, item 40, Serial Range: -8955262

1шт.

24

D75145

LARGE PLATE

PLATE - floor, rear, mechanical shuttle models on tractor, Start Serial: 8955262

1шт.

See Figure 216 for differential lock lever bushing.

1шт.

24

D70506

PLATE - floor, rear, power shuttle models tractor, Serial Range: -895532

1шт.

24

D75146

PLATE

- floor, rear, power shuttle models on tractor, Start Serial: 895532

1шт.

See Figure 216 for differential lock lever bushing.

1шт.

25

205-72

HOLE PLUG BUTTON,3"

PLUG - button, dia 3"

2шт.

26

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2" dia

1-3шт.

27

RESERVED

1шт.

28

RESERVED

1шт.

29

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7-9шт.

31

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8-1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

1-2шт.

33

92-6

LOCK WASHER,3/8"

20шт.

34

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

35

195-25

WASHER,3/8"

- flat, 3/8"

7шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6-9шт.

37

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

38

RESERVED

1шт.

39

92-5

LOCK WASHER,5/16"

6шт.

40

195-21

WASHER,5/16"

- flat, 5/16"

6шт.

41

131-636

SPRING NUT,J, Ret, 5/16"-18

- cage, 5/16" - 18 NC

5-6шт.

D52812

RUBBER STRIP

TRIM edge, 83", 2018 mm, long, Includes: Refs. 8

1шт.
