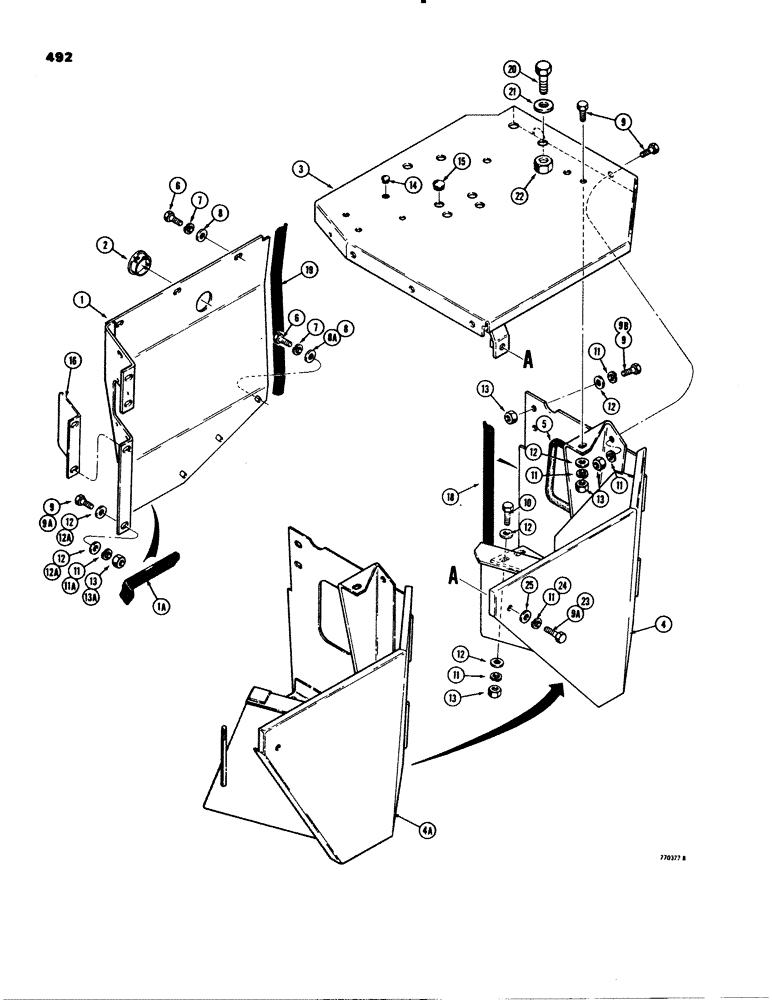

Запчасти Case 580C (492) - BATTERY COMPARTMENT AND VALVE MOUNTING PLATE (09) - CHASSIS/ATTACHMENTS

1

D68238

PLATE

- shield, metal, if used

1шт.

1

D77766

PANEL

PLATE - shield, plastic, if used

1шт.

1a

D72862

HOSE

TRIM - edge, shield

1шт.

2

353-417

PLUG,Dome, 2.000" hole, Nylon

- button, 2"

2шт.

3

D68091

COVER

PLATE - valve mounting, used with Parker valve

1шт.

3

D82550

COVER

PLATE - vavle mounting, used with Hydreco valve

1шт.

4

D68445

BOX

- battery, used with one 12 volt battery

1шт.

Ref. 4 and 4A battery box - Ref. showing in illustration with mtg holes leading to Ref. 9 bolts is R22134 hinge.

1шт.

4a

D78930

TRANSFER BOX

BOX - battery, used with two 6 volt batteries

1шт.

5

REF

INSTRUCTION

TRIM- edge, hose opening, 18-5/8" (473 mm) long, cut from D52812, see below

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

8

195-524

WASHER,5/16"

- flat, , plated, 1-1/8" (28.6 mm) OD 5/16"

6-7шт.

8a

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, 11/16" (17.5 mm) OD, if used

1шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

If used Hex, 3/8"-16 x 3/4", G5, Full Thd

2-4шт.

9a

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

9b

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1-3шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

11

92-6

LOCK WASHER,3/8"

6-1шт.

11a

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

4шт.

12

195-25

WASHER,3/8"

- flat, 3/8"

14шт.

12a

195-104

WASHER,3/8"

- flat, , plated, if used 3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

5-1шт.

13a

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

4шт.

14

205-75

PLUG,13/32"

- button, , used on models without loader 13/32"

4шт.

15

353-409

PLUG,Dome, .812" hole, Nylon

- button, 13/16"

2-6шт.

16

D69116

PLATE - cover, valve lever slots, used on models without loader

1шт.

17

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - tapping, no. 10, cover plated, if used, not shown

2шт.

18

D95811

CHANNEL

TRIM - edge, battery box

1шт.

19

D95814

CHANNEL

TRIM - edge, compartment plate

1шт.

20

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

If used Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

21

195-541

WASHER,5/8", SAE

- flat, 5/8", if used

2шт.

22

129-183

NUT,5/8"-11, G8

If used 5/8"-11, G8

2шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used 3/8"

1шт.

25

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, if used

1шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long

1шт.
