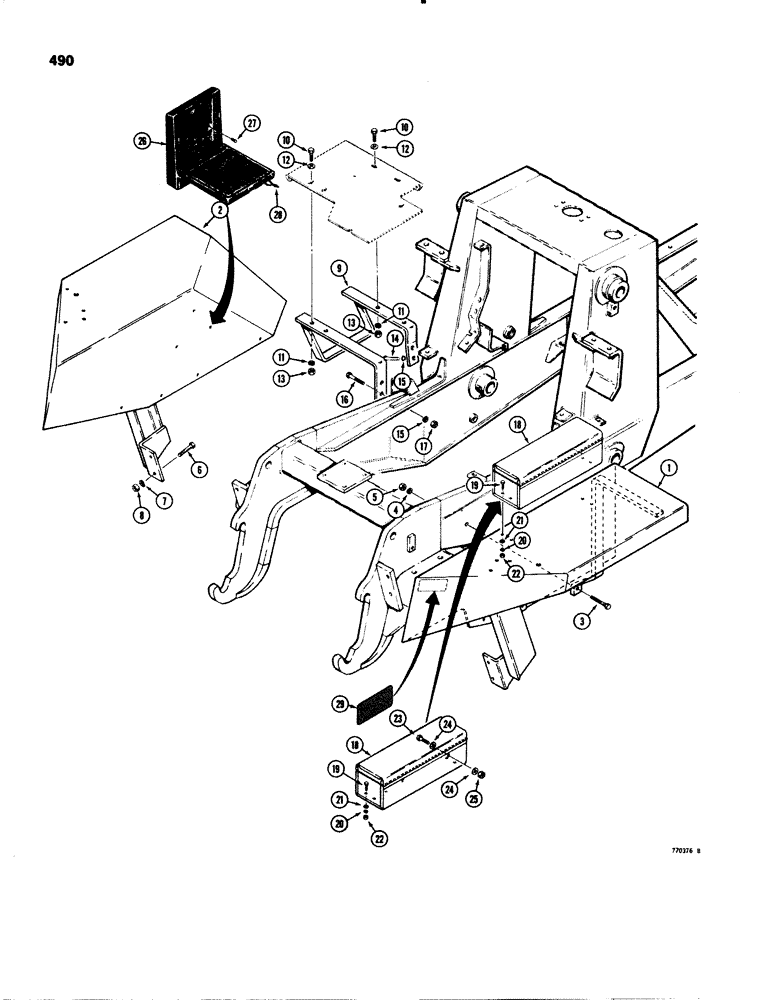

Запчасти Case 580C (490) - FENDERS, STEP AND TOOL BOX (09) - CHASSIS/ATTACHMENTS

1

D75597

FENDER

- rear, RH

1шт.

2

D75598

FENDER ASSY.

FENDER - rear, LH

1шт.

3

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4"

1-2шт.

4

92-8

LOCK WASHER,1/2"

1-2шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1-2шт.

6

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8" - 11 NC x 2-1/4", grade 8

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC

4шт.

9

D76548

STEP

- operators compartment

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

4шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

13

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

15

92-8

LOCK WASHER,1/2"

2-4шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

18

D55624

TOOL

BOX - tractor

1шт.

19

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

Used when the tool box is mounted on top of the fender

1шт.

20

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

Used when the tool box is mounted on top of the fender

1шт.

21

195-102

WASHER,1/4"

- flat, , plated, if used 1/4"

4шт.

Used when the tool box is mounted on top of the fender

1шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

Used when the tool box is mounted on top of the fender

1шт.

23

114-200

BOLT,Hex, 3/8" - 24 x 1", Gr 5

Hex, 3/8"-24 x 1", G5, Full Thd

3шт.

Used when the tool box is mounted on the side of the fender

1шт.

24

195-525

WASHER,3/8", SAE

- flat, 3/8"

6шт.

Used when the tool box is mounted on the side of the fender

1шт.

24a

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , If used, not shown 3/8"

3-6шт.

Used when the tool box is mounted on the side of the fender

1шт.

25

129-123

NUT,3/8"-24, G5

3шт.

Used when the tool box is mounted on the side of the fender

1шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

3-6шт.

Used when the tool box is mounted on the side of the fender

1шт.

26

R38893

CASE

BOX - operator's manual, if used, for models with box mounted on seat, see Figure 498

1шт.

27

151-522

RIVET,Pop, 3/16" x .575"

- pop, 3/16"

3шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie

1шт.

29

D87870

DECAL

REFLECTOR - pressure sensitive, red, if used

2шт.
