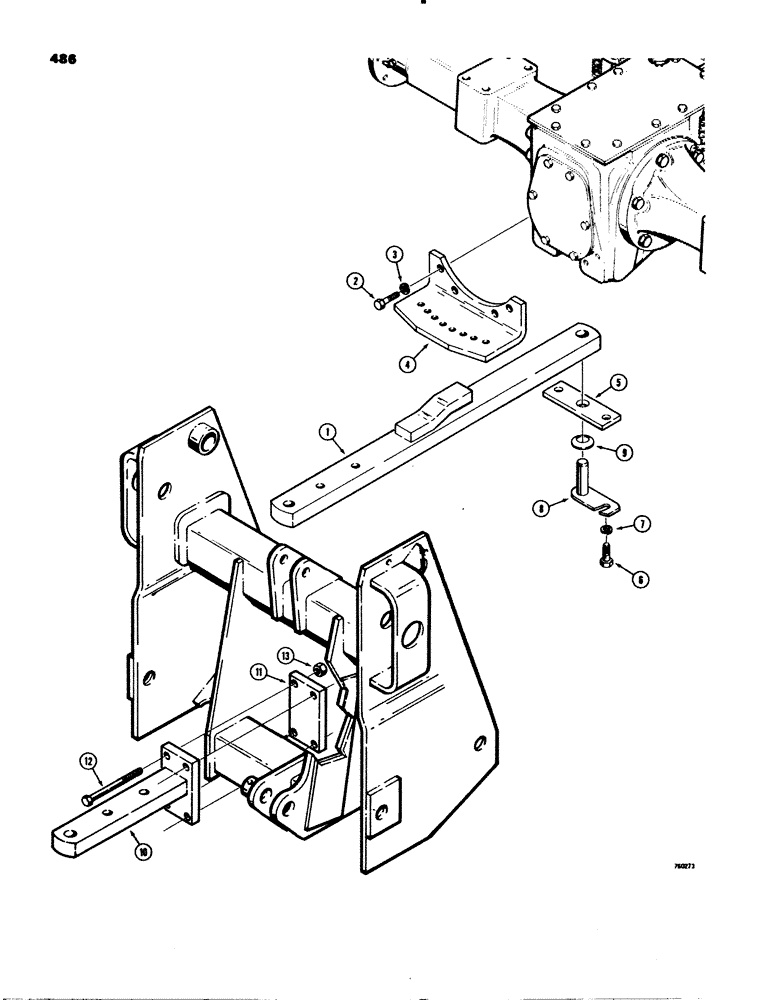

Запчасти Case 580C (486) - SWINGING DRAWBAR (09) - CHASSIS/ATTACHMENTS

1

A37809

BAR

DRAWBAR - swinging, tractor

1шт.

2

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

4шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

G30266

SUPPORT

GUIDE - rear, drawbar

1шт.

5

G10617

SUPPORT

PLATE - front, drawbar retaining

1шт.

6

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

G14403

PIN

drawbar mounting

1шт.

9

A35270

WASHER

spring type

1шт.

10

D73232

DRAWBAR

rigid, tractor, Used with 3-Point Hitch

1шт.

11

D73231

LARGE PLATE

mounting, rigid bar used w/ 3 point hitch

1шт.

12

13-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

hex, 5/8" - 11 NC x 6-1/2", rigid bar used w/ 3 point hitch

4шт.

13

25-1010

NUT,5/8"-11, G5

Rigid bar used w/ 3 point hitch 5/8"-11, G5

4шт.
