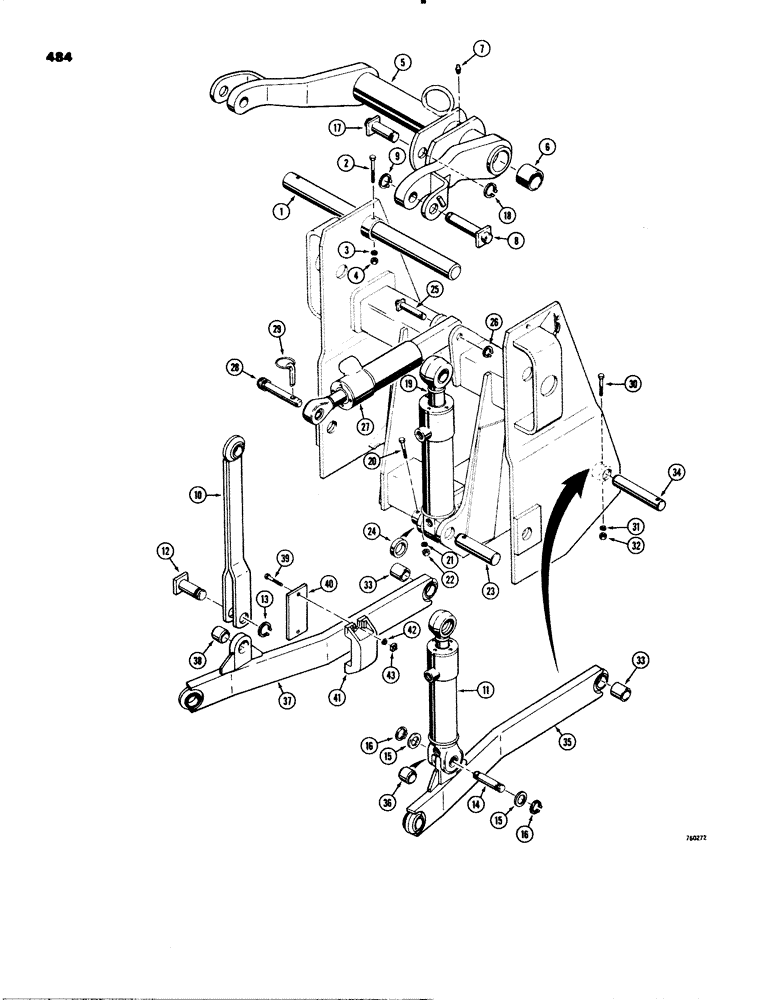

Запчасти Case 580C (484) - 3-POINT HITCH LINK ARM, LINKAGE AND CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

D51569

SHAFT

- rocker

1шт.

2

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8" - 16 NC x 3"

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

5

D72875

TUBE,23.6" L

- rocker shaft, Includes: Ref. 6

1шт.

6

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- tube

2шт.

7

219-4

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

8

D51299

PIN

- mounting, tilt cylinder and strut, upper

2шт.

9

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining

2шт.

10

D51276

STAND

STRUT - stationary, tilt cylinder opposing

1шт.

11

REF

INSTRUCTION

CYLINDER - tilt, see Figures 420 and 422

1шт.

12

D51297

PIN

- mounting, strut, lower

1шт.

13

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining, lower strut mounting pin

1шт.

14

D30609

PIN,25.4mm OD x 95.25mm L

- mounting, tilt cylinder, lower

1шт.

15

195-53

WASHER,1" x 2" x .134"

- plain, cylinder alignment

1шт.

16

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining, lower tilt cylinder mounting pin

2шт.

17

D51302

PIN

- mounting, lift cylinder, upper

1шт.

18

D26918

SNAP RING,#125, Ext

Ring, Snap, , upper lift cylinder mounting pin #125, Ext

1шт.

19

REF

INSTRUCTION

CYLINDER - lift, see Figures 416 and 418

1шт.

20

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8" - 16 NC x 2-1/2"

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

23

D51695

PIN

- mounting, lift cylinder, lower

1шт.

24

D51692

SPACER

- lift cylinder mounting pin, lower

1шт.

25

D51294

PIN

- mounting, pitch cylinder at mounting frame

1шт.

26

T25683

SNAP RING,#75, Ext

Ring, Snap, , pitch cylinder mounting pin #75, Ext

1шт.

27

REF

INSTRUCTION

CYLINDER - hydraulic, pitch, parts list Figure 424

1шт.

28

G16735

PIN

- mounting, pitch

1шт.

29

A30338

PIN

- retaining

1шт.

30

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8" - 16 NC x 2-1/2"

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

33

D51588

PIVOT

TUBE - pivot, draft arm mounting pin

2шт.

34

D50724

PIN,25.4mm OD x 160.27mm L

- mounting, draft arm to mounting frame

2шт.

35

D51339

ARM

- draft, RH, Includes: Ref. 36

1шт.

Ref. 35 and 37 draft arms - Ball joint in this arm at mtg frame end is part nbr D51336 and ball joint at implement end is part nbr D51557.

1шт.

36

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

- arm

1шт.

37

D51340

ARM

- draft, LH, Includes: Ref. 38

1шт.

Ref. 35 and 37 draft arms - Ball joint in this arm at mtg frame end is part nbr D51336 and ball joint at implement end is part nbr D51557.

1шт.

38

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

- arm

1шт.

39

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

4шт.

40

D56245

PLATE

- sway retaining

2шт.

41

D51722

CASTING

ANCHOR - sway retaining

2шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

25-226

SQUARE NUT,Sq, 3/8"-16

- square, heavy, 3/8" - 16 NC

4шт.
